Home >> Pontiac >> 2002 >> Firebird Formula, Automatic >> Repair and Diagnosis >> Steering >> Steering Wheel And Steering Column >> Component Locator >> Steering Wheel and Column Component Views

Steering Wheel and Column Component Views

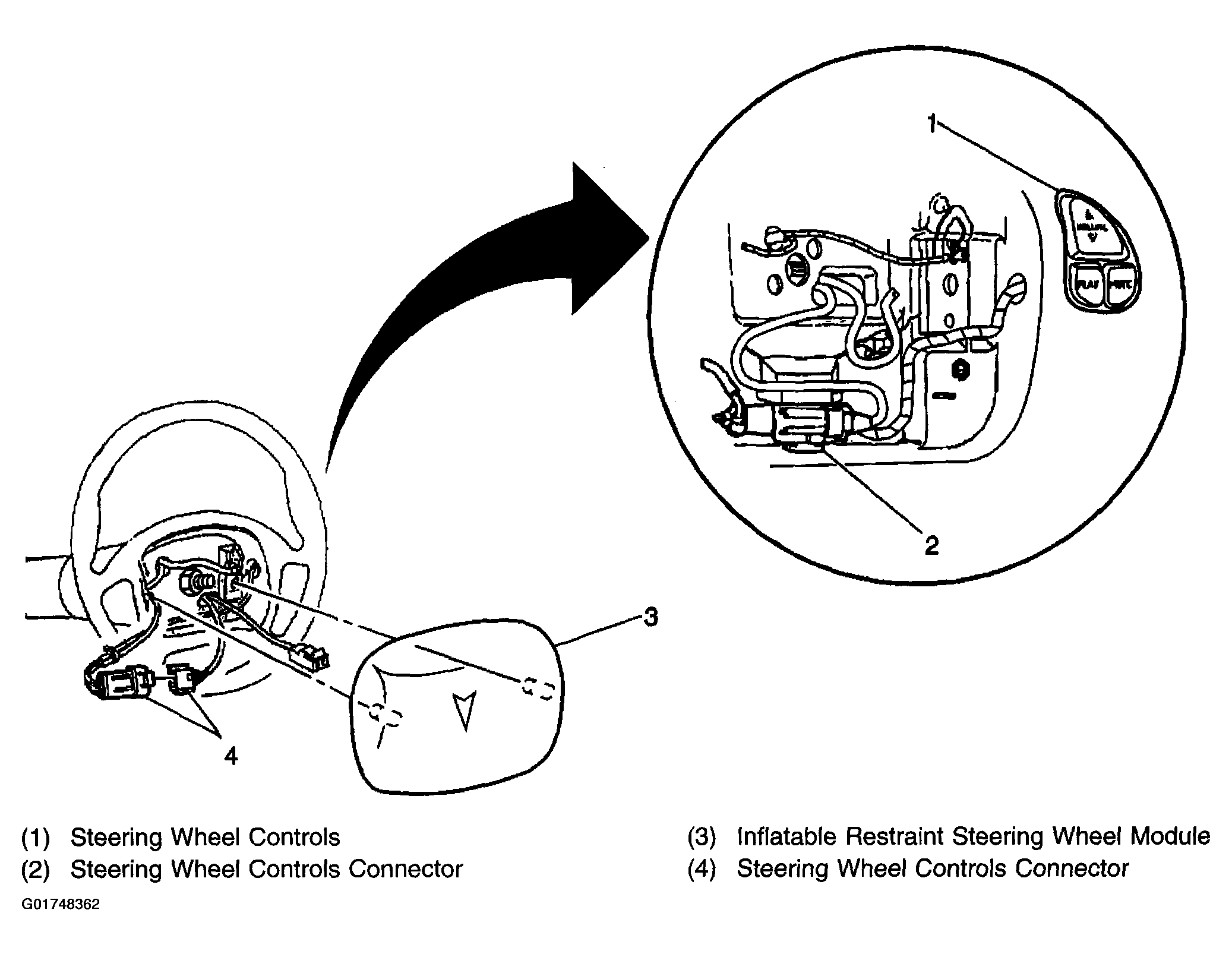

Fig 1: Steering Wheel (Pontiac)

G01748362

Courtesy of GENERAL MOTORS CORP.

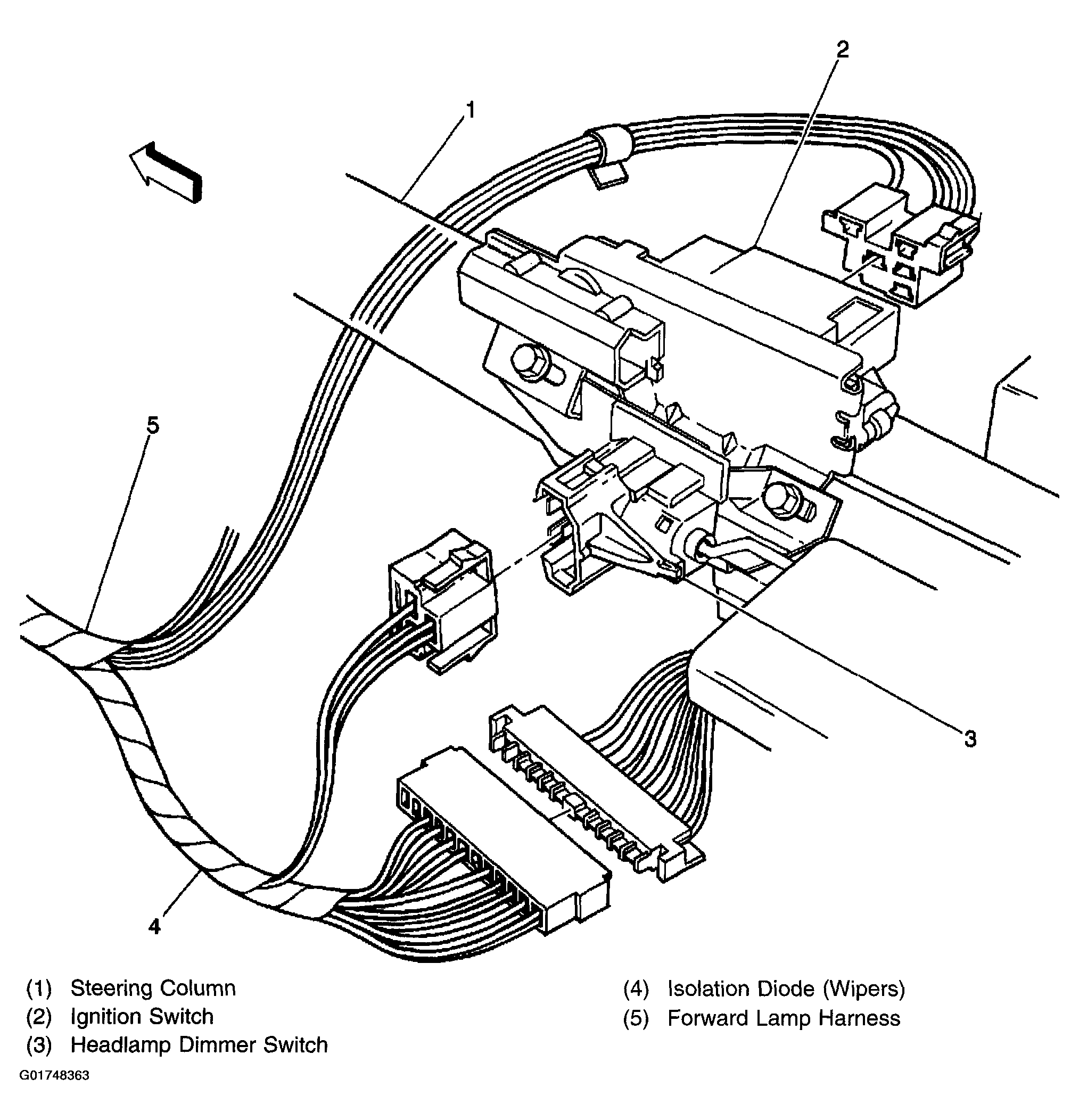

Fig 2: Base of Steering Column

G01748363

Courtesy of GENERAL MOTORS CORP.
