Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

Connect the radio electrical connector.
Connect the antenna lead (1) to the radio (2).

Fig 1: Connecting Antenna Lead To Radio
Courtesy of GENERAL MOTORS CORP.
Install the radio (1) to the instrument panel. Secure the radio with the 4 screws (2).
Install the IP accessory center trim plate. Refer to TRIM PANEL REPLACEMENT -- IP CENTER .

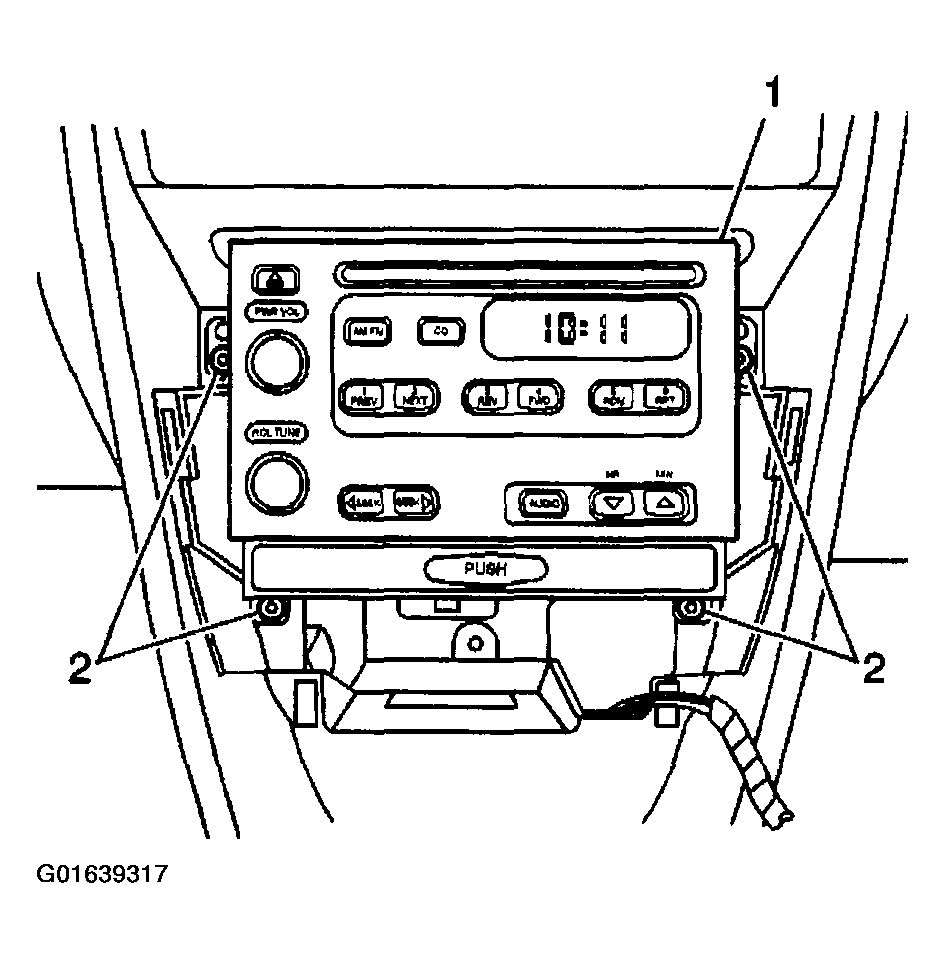

Fig 2: Installing Radio To Instrument Panel
Courtesy of GENERAL MOTORS CORP.
