Removal & Installation (3.8L)

  1. Disconnect negative battery cable. Disconnect 14-pin connector at ignition control module. Disconnect spark plug wires from coils. Remove 6 screws retaining coils to ignition control module. Remove ignition coils from module.

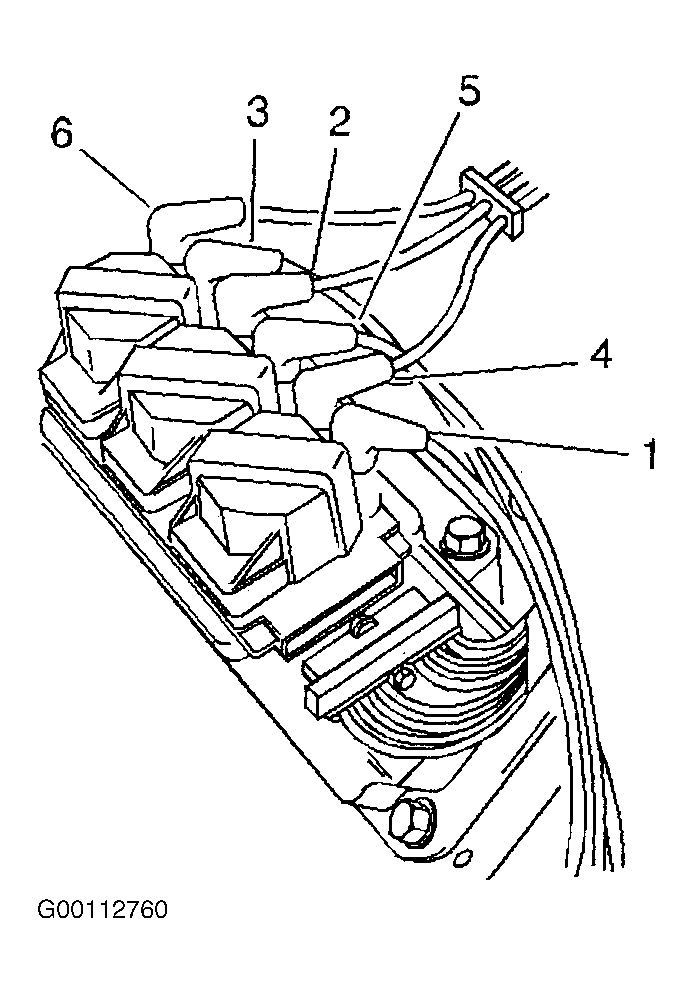

  2. Remove ignition control module. To install, reverse removal procedure. Tighten retaining screws to specification. See TORQUE SPECIFICATIONS  . Ensure plug wires are installed in the proper location on coils. See Figure .
