Removal Procedure

Raise and suitably support the vehicle.
Remove the catalytic converter hanger bolts.
Remove the catalytic converter hanger.

Fig 1: Remove Catalytic Converter Hanger
Courtesy of GENERAL MOTORS CORP.

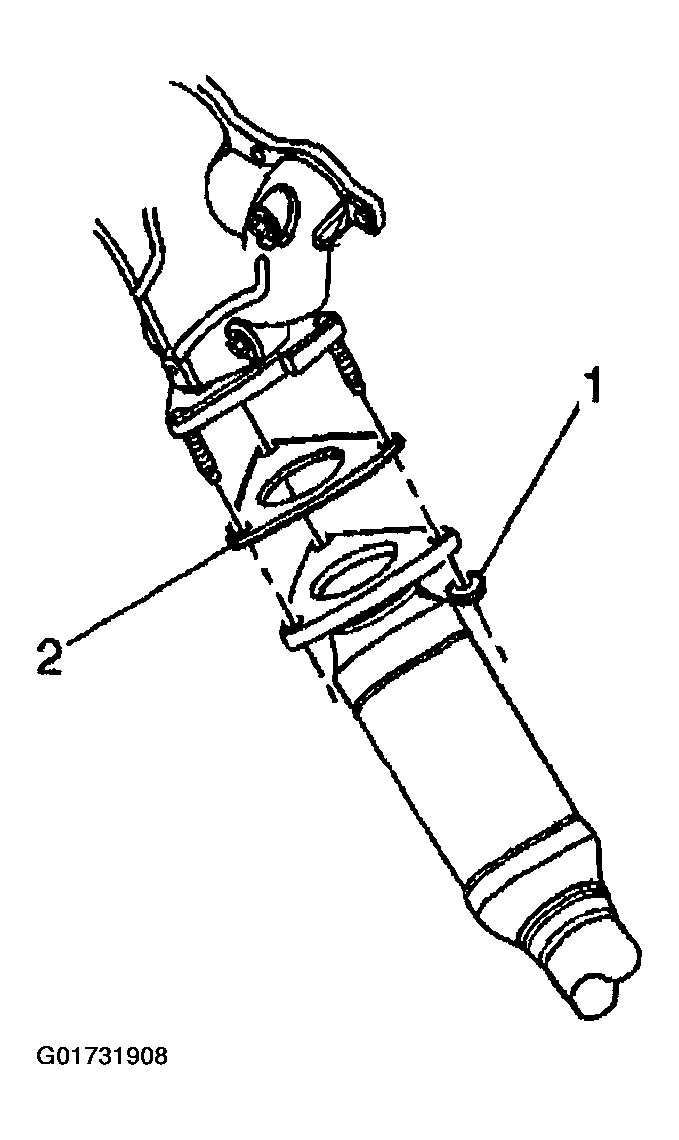

Loosen the exhaust manifold pipe nuts (1) (left side).

Fig 2: Loosen Exhaust Manifold Pipe Nuts
Courtesy of GENERAL MOTORS CORP.
Loosen the exhaust manifold pipe nuts (1) (right side).

Fig 3: Loosening Exhaust Manifold Pipe Nuts
Courtesy of GENERAL MOTORS CORP.

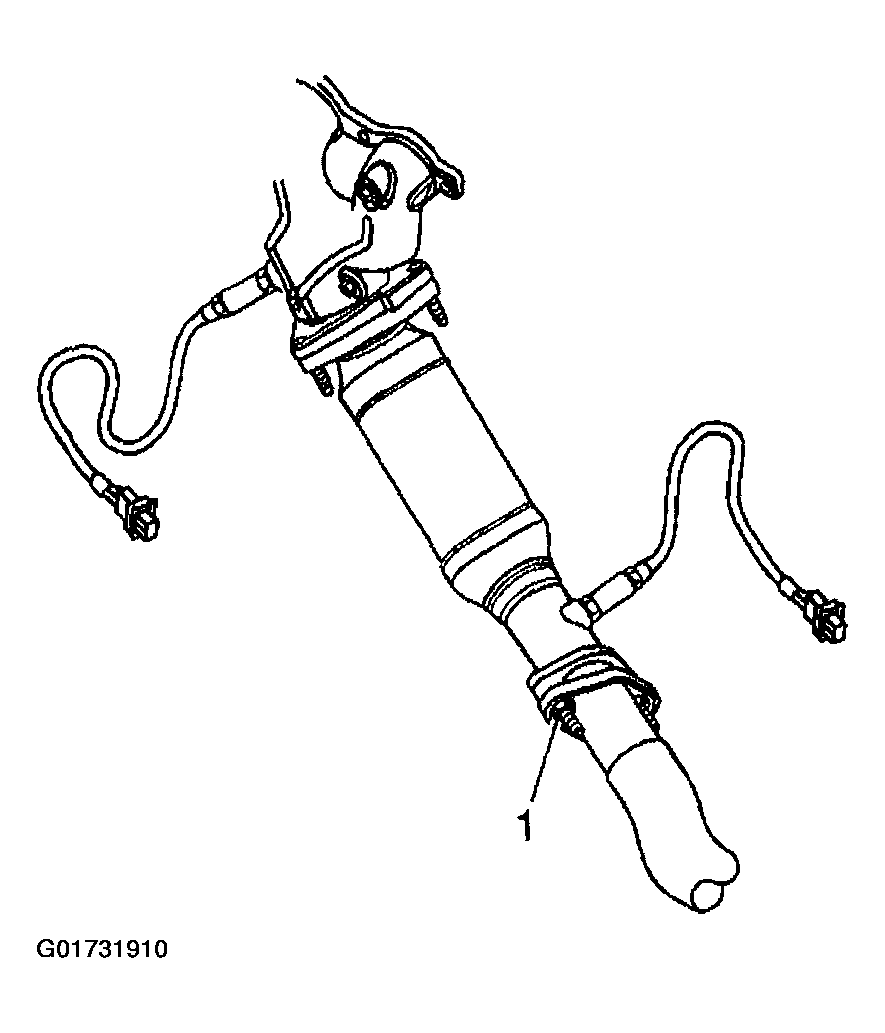

Remove the catalytic converter nuts (1) (left side).

Fig 4: Removing Catalytic Converter Nuts
Courtesy of GENERAL MOTORS CORP.
Remove the catalytic converter nuts (1) (right side).

Fig 5: Removing Catalytic Converter Nuts
Courtesy of GENERAL MOTORS CORP.
Slide the crossover pipe rearward.
Remove the crossover pipe off the studs on the left and right catalytic converters.
Slide the crossover pipe out of the exhaust muffler.
