IP Dimmer Switch Connector End View
IP Dimmer Switch Connector End View

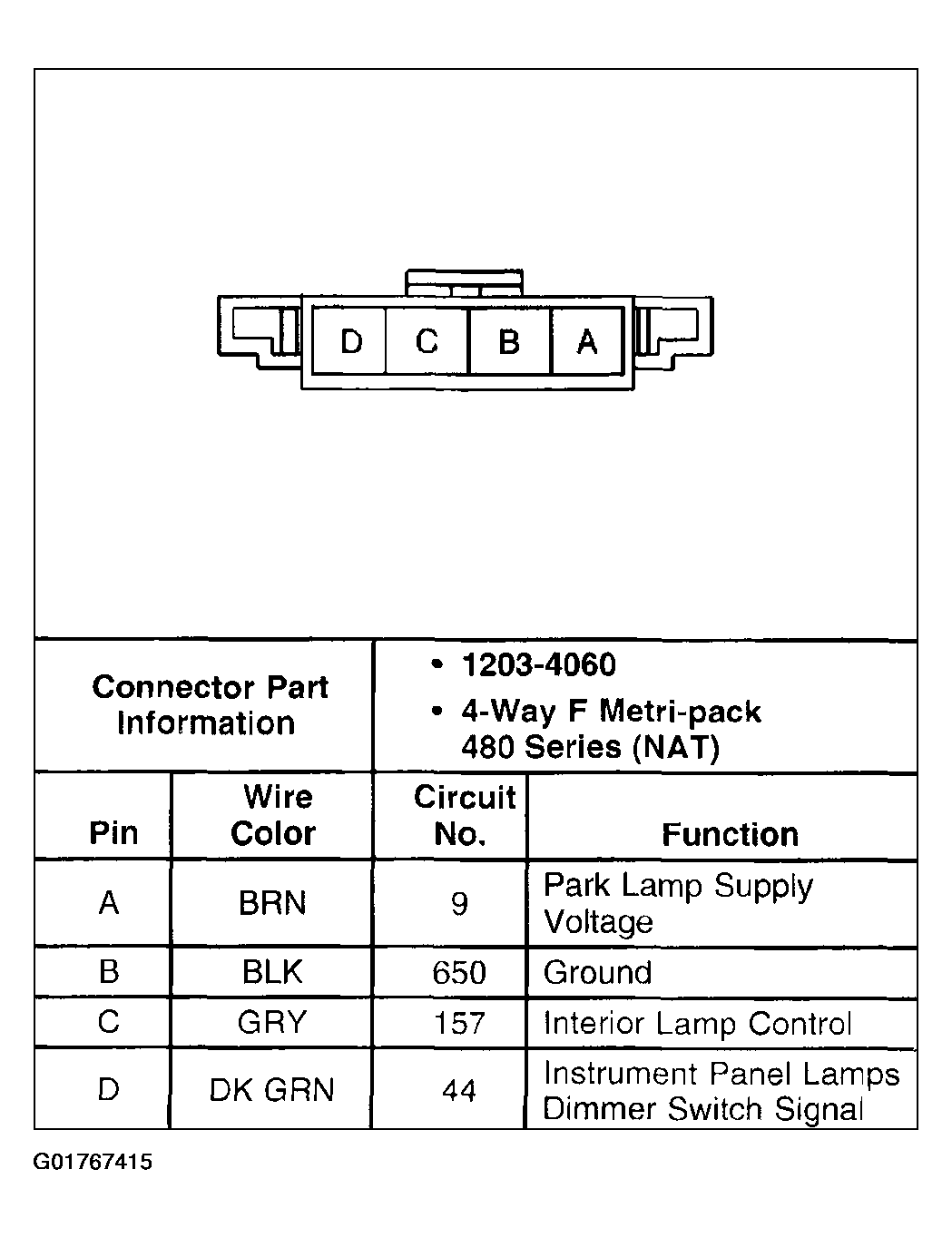

Fig 1: IP Dimmer Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
