Horns Connector End View
Horns Connector End View

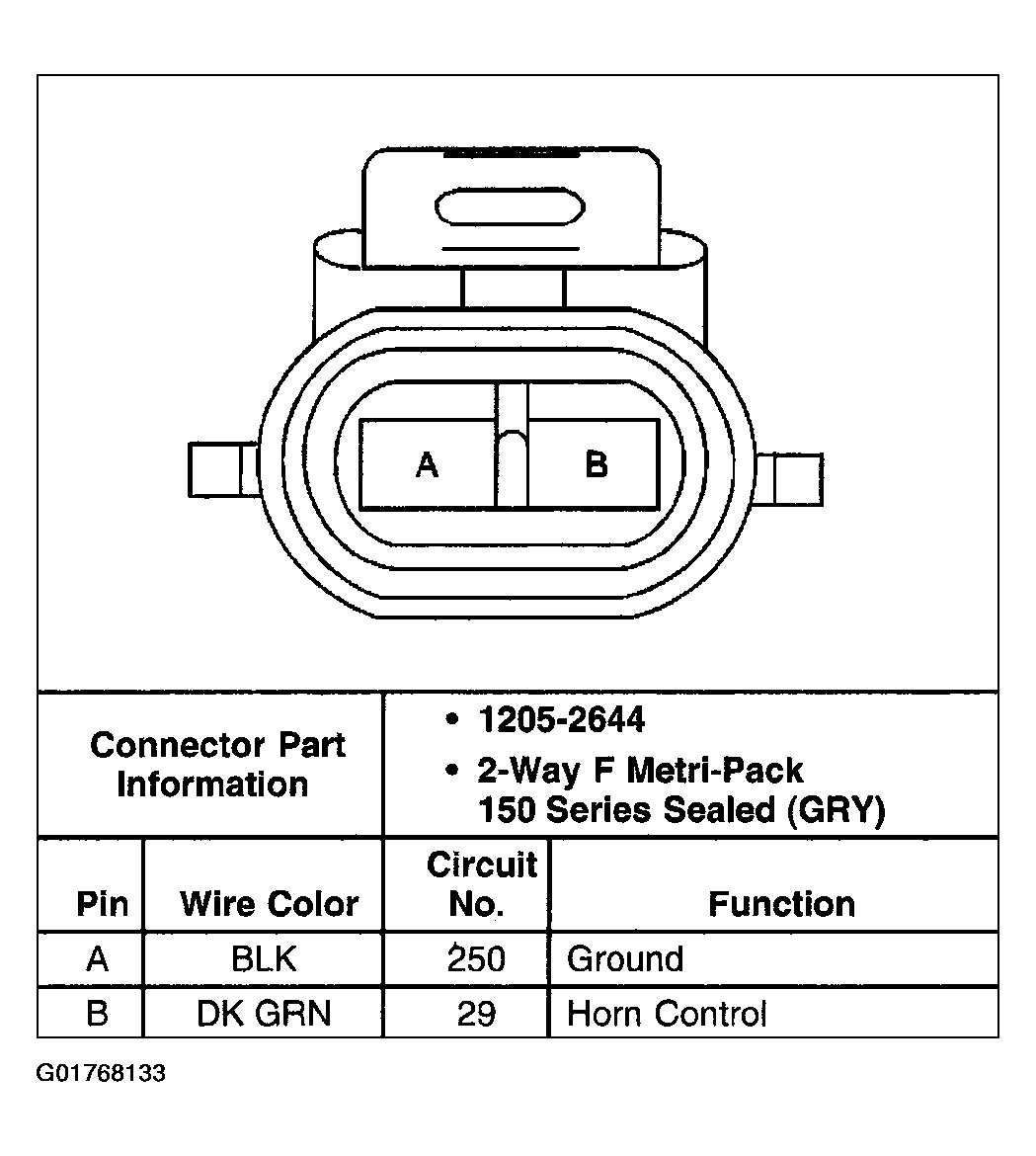

Fig 1: Horns Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
