HVAC Control Connector End View (C1)

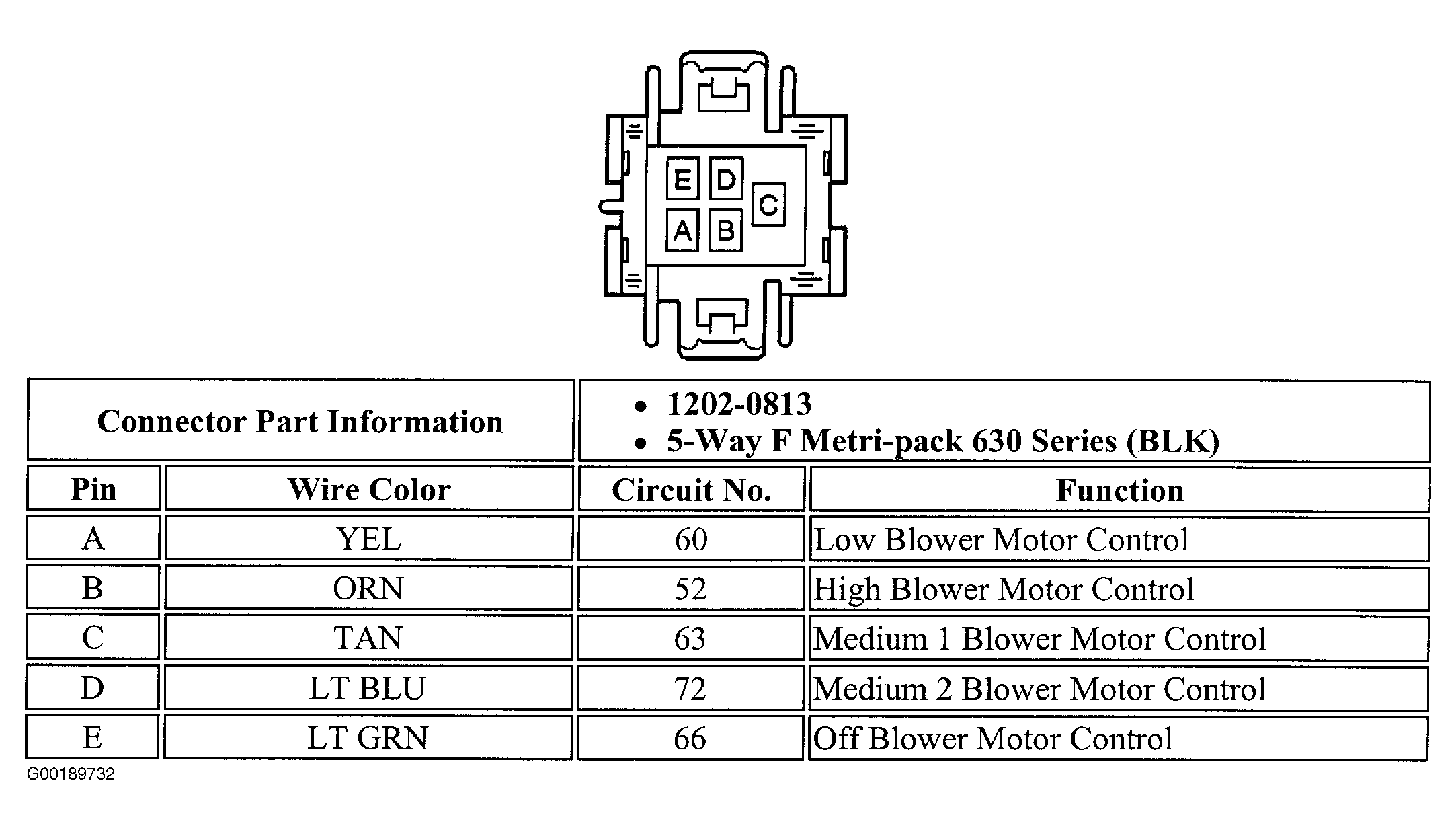

Fig 1: HVAC Control Connector End View (C1)

G00189732

Courtesy of GENERAL MOTORS CORP.
