Removal Procedure

  1. Raise the window.
  2. Remove the front side door trim panel. Refer to LOCK STRIKER ADJUSTMENT - Door .
  3. Remove the water deflector as needed. Refer to WATER DEFLECTOR REPLACEMENT - Door .
  4. Remove the lock cylinder rod (5) from the lock cylinder pawl clip (4).
  5. Remove the lock cylinder retainer (2) using a flat-bladed tool to slide the retainer upward.
  6. Remove the door lock cylinder (1) from the door (3).
  7. Remove the lock cylinder gasket (2) from the door (3).

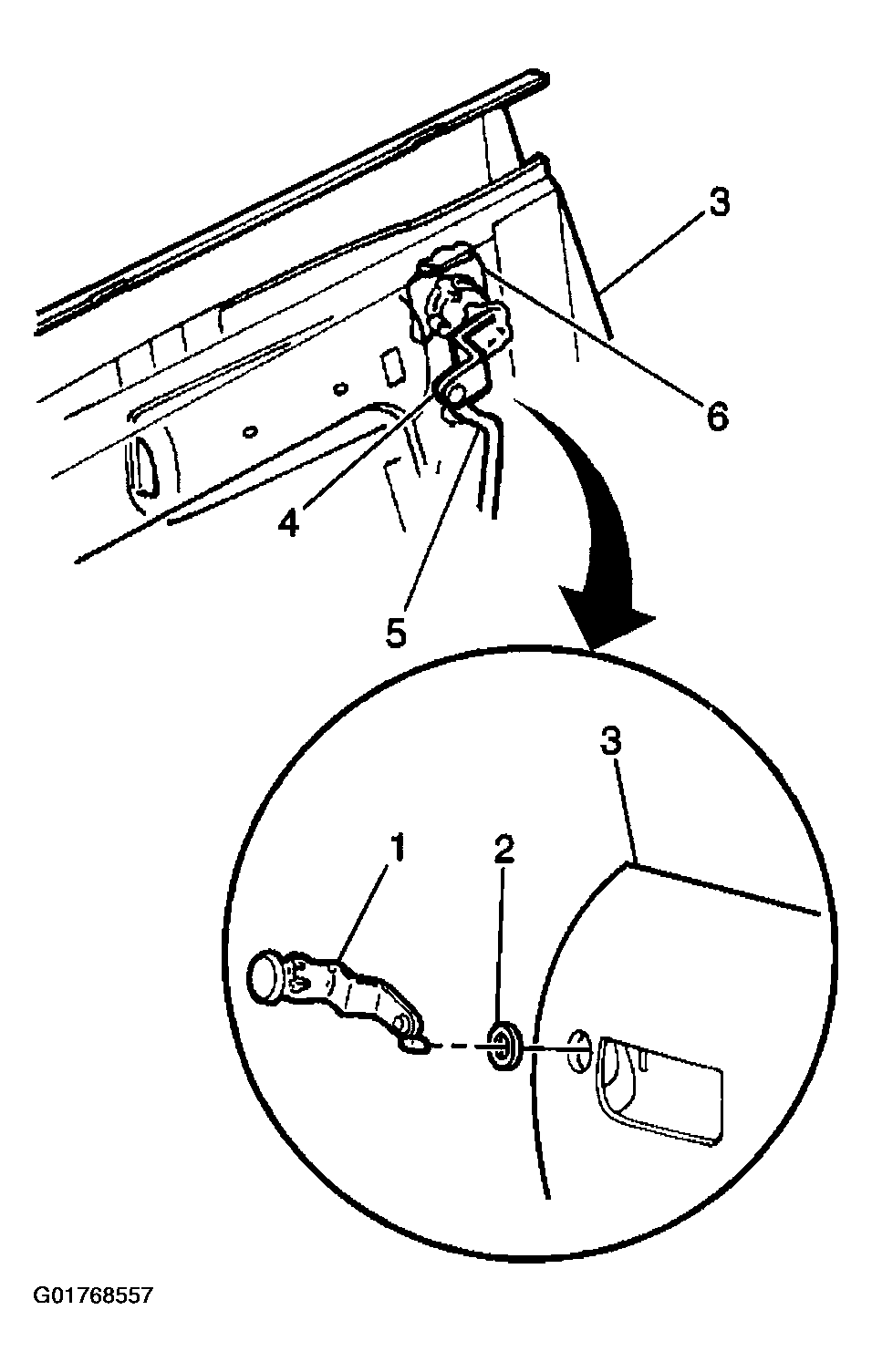

    Fig 1: Removing Door Lock
    G01768557Courtesy of GENERAL MOTORS CORP.
