Power Roof Systems Component Views

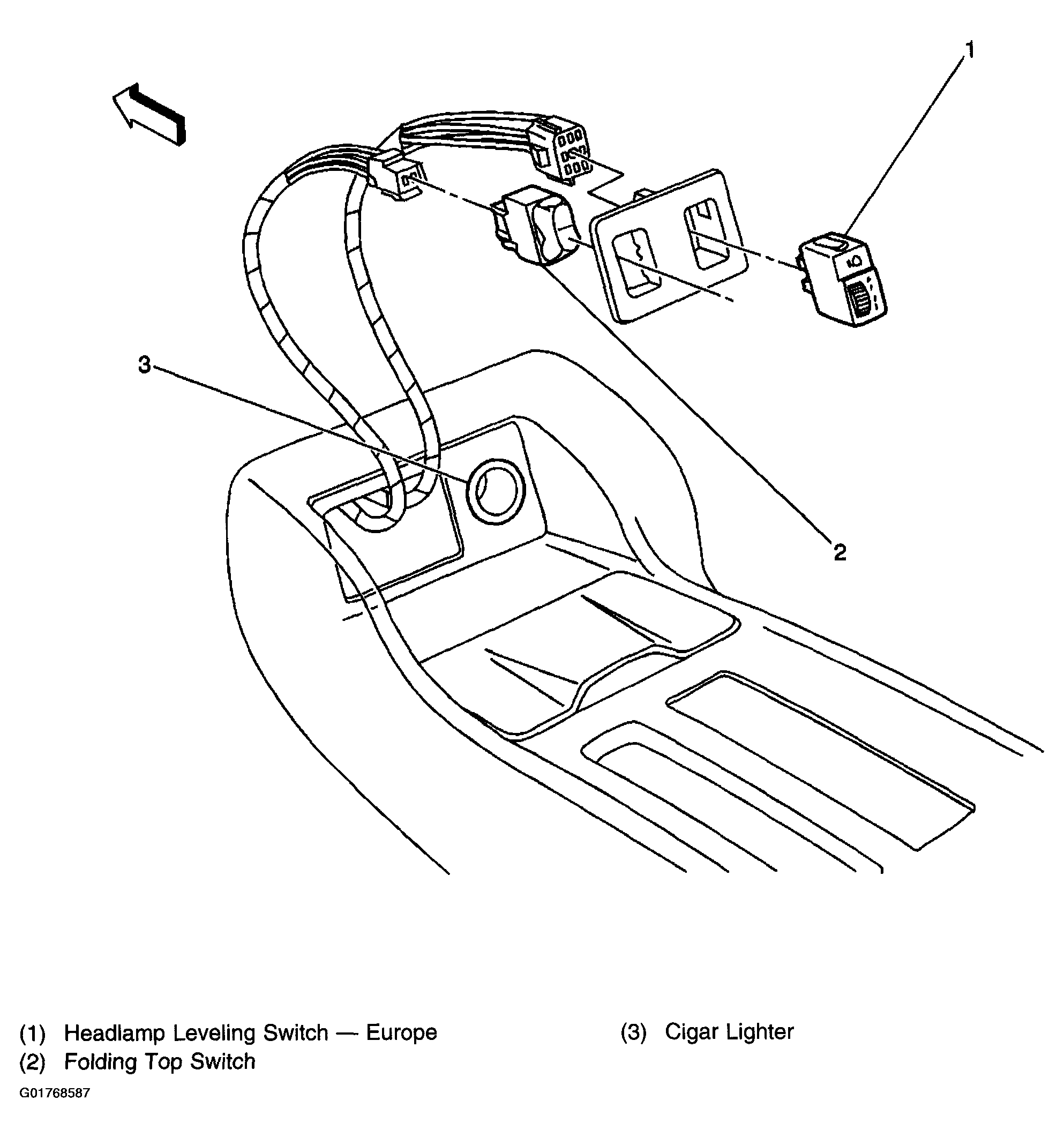

Fig 1: Center Console - Chevrolet
G01768587Courtesy of GENERAL MOTORS CORP.

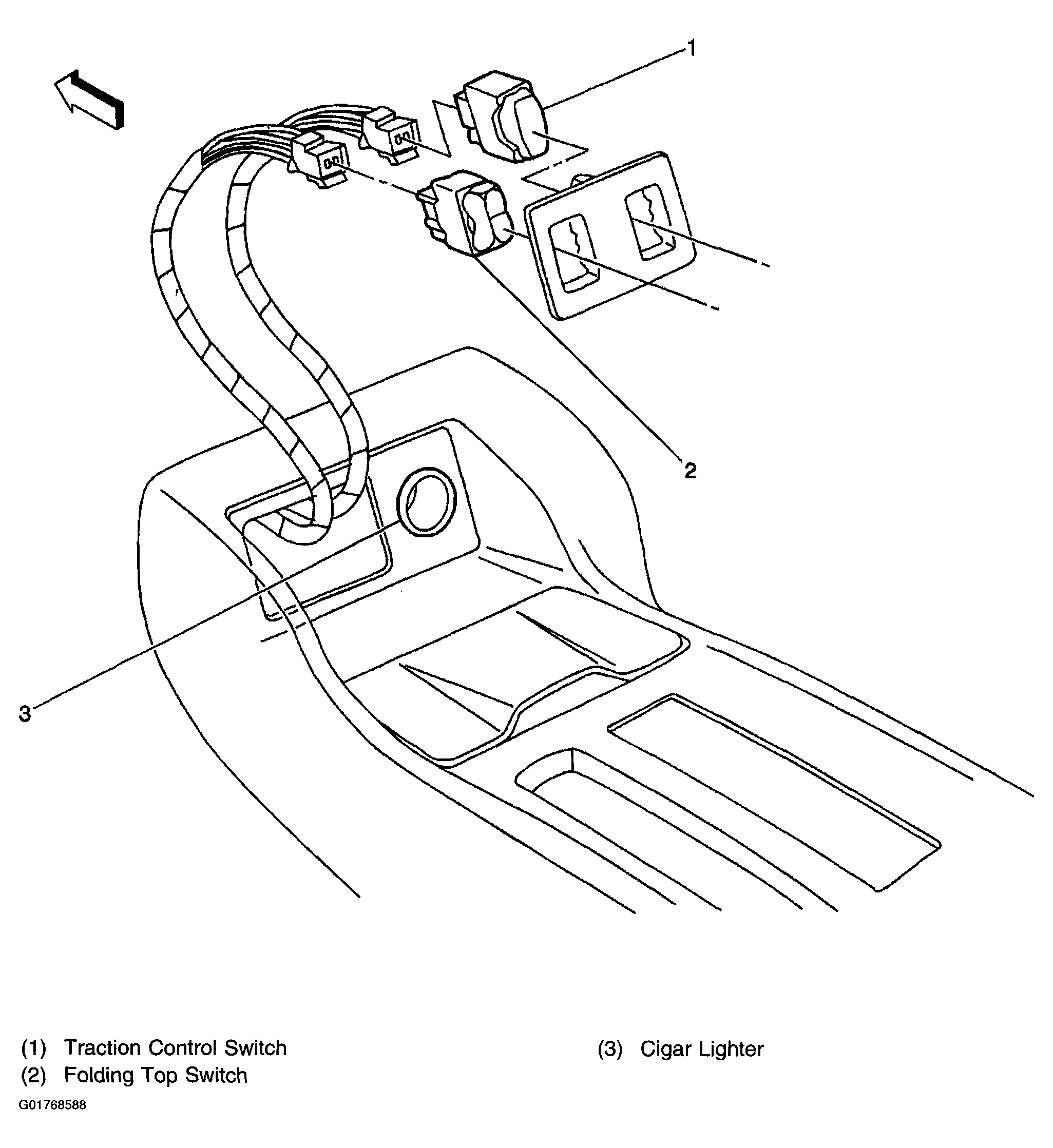

Fig 2: Center Console - Pontiac
G01768588Courtesy of GENERAL MOTORS CORP.

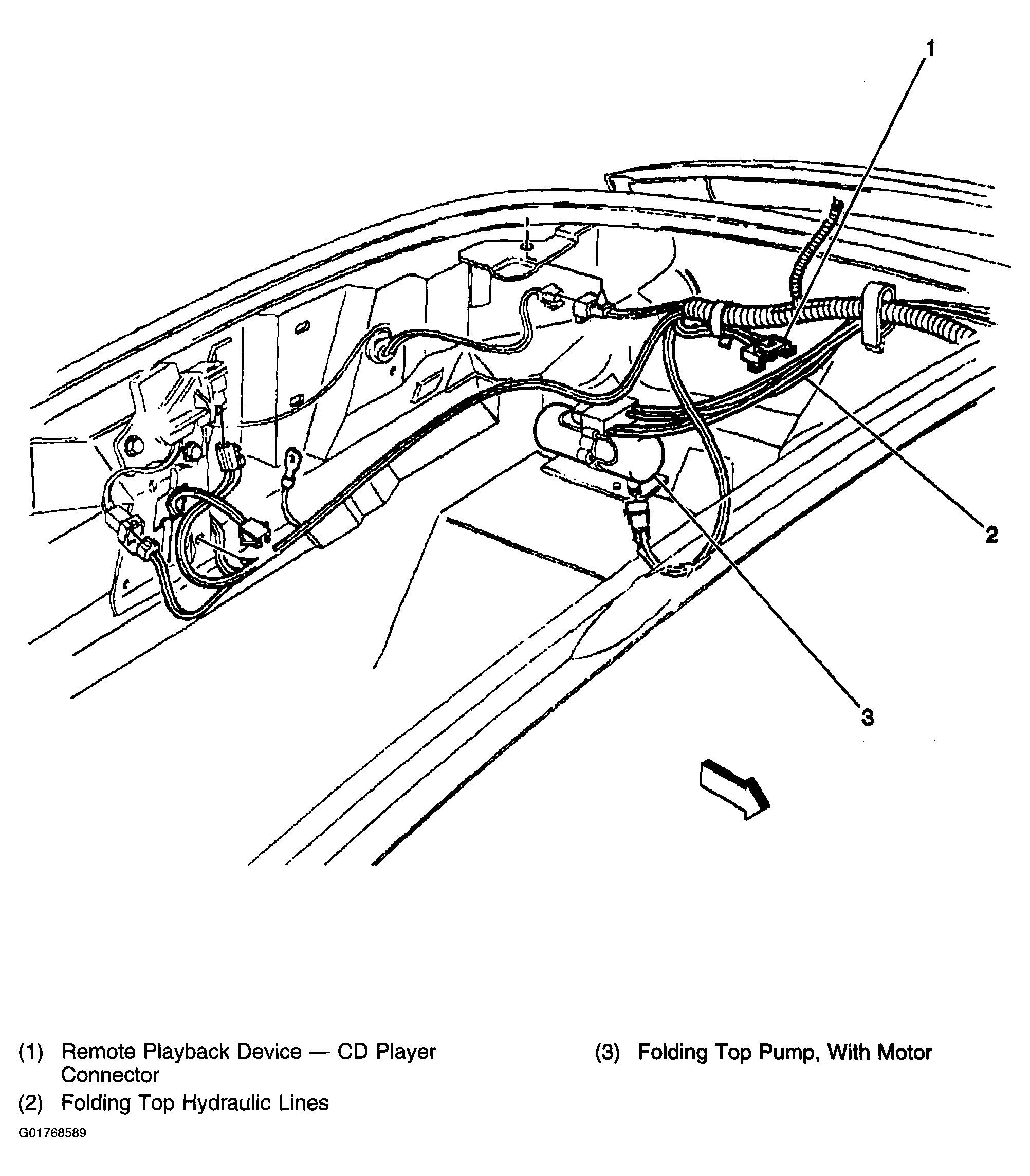

Fig 3: Rear Body
G01768589Courtesy of GENERAL MOTORS CORP.
