Installation Procedure

  1. Install the speedometer driven gear, if necessary.
  2. Install the vehicle speed sensor.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the speed sensor bolt.

    Tighten

    Tighten the speed sensor bolt to 10 N.m (89 lb in).

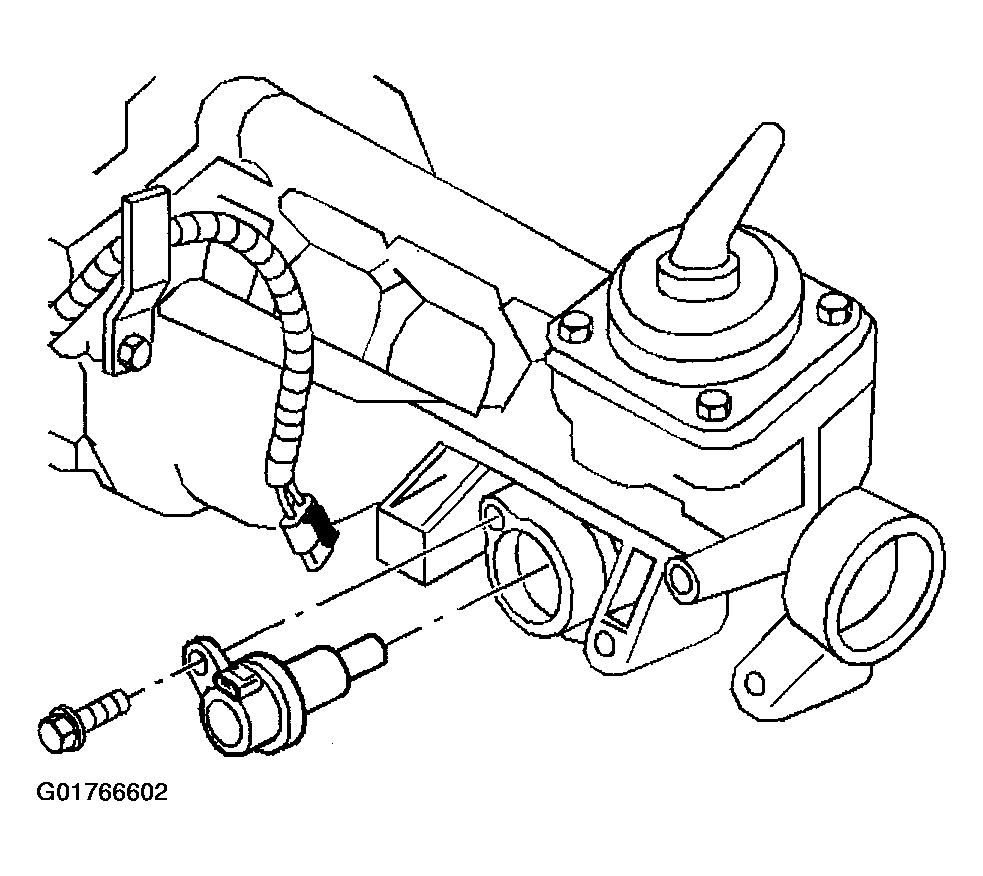

    Fig 1: Tightening Speed Sensor Bolt
    G01766602Courtesy of GENERAL MOTORS CORP.
  4. Connect the speed sensor electrical connector.
  5. Lower the vehicle.

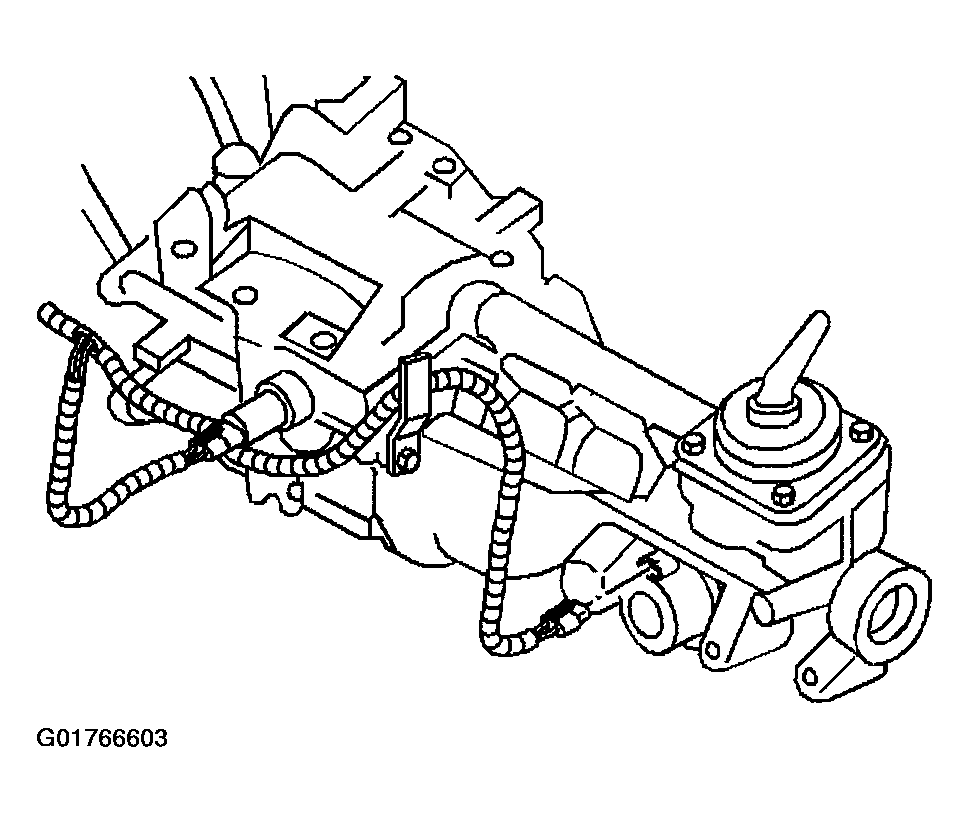

    Fig 2: Connecting Speed Sensor Electrical Connector
    G01766603Courtesy of GENERAL MOTORS CORP.
