Removal Procedure

  1. Set the park brake.
  2. Place the transmission in neutral.
  3. Unscrew the shift control knob (1) from the control.

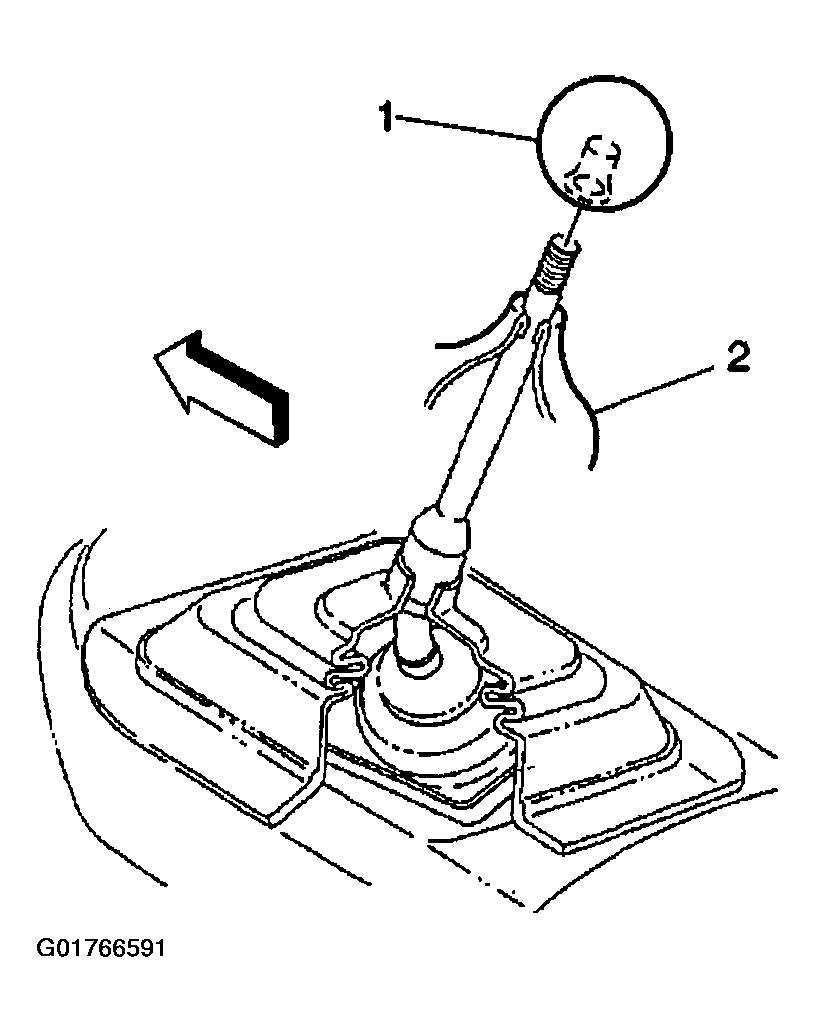

    Fig 1: Unscrewing Shift Control Knob
    G01766591Courtesy of GENERAL MOTORS CORP.
