Removal Procedure

  1. Raise and suitably support the vehicle.
  2. Disconnect the backup lamp switch electrical connector.

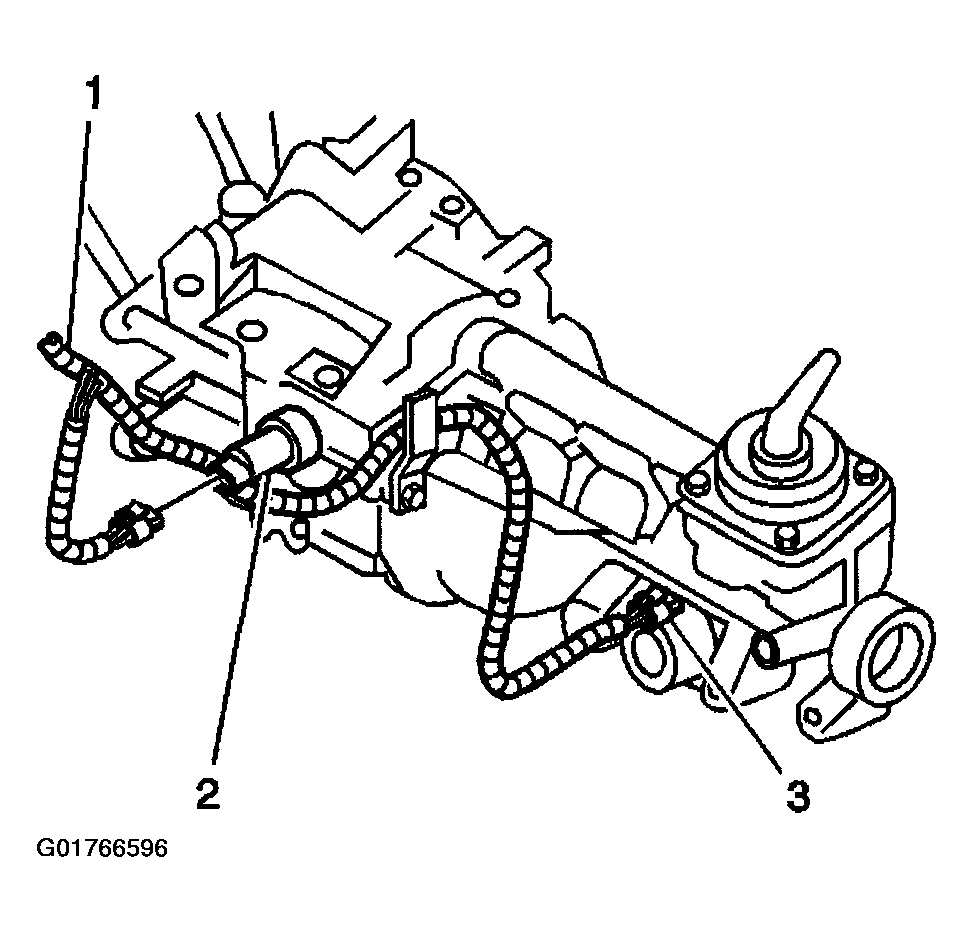

    Fig 1: Disconnecting Backup Lamp Switch Electrical Connector
    G01766596Courtesy of GENERAL MOTORS CORP.
  3. Remove the backup lamp switch.

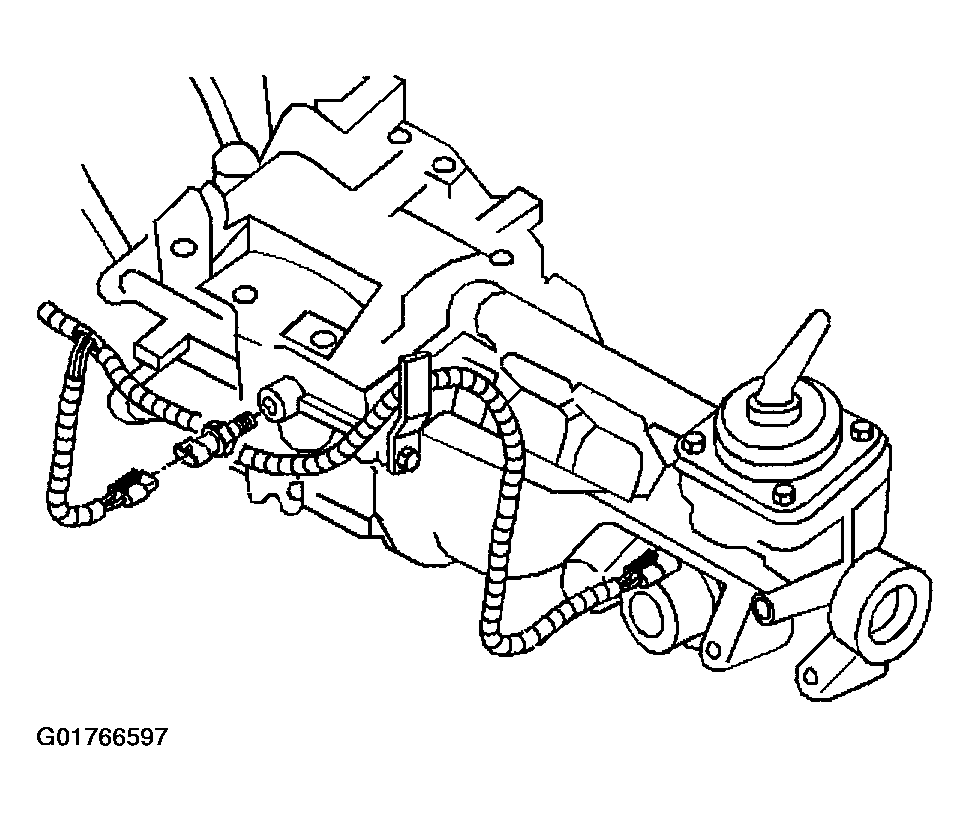

    Fig 2: Removing Backup Lamp Switch
    G01766597Courtesy of GENERAL MOTORS CORP.
