Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the following components from the vehicle:
    • The 6 bolts
    • The engine splash shield (1)

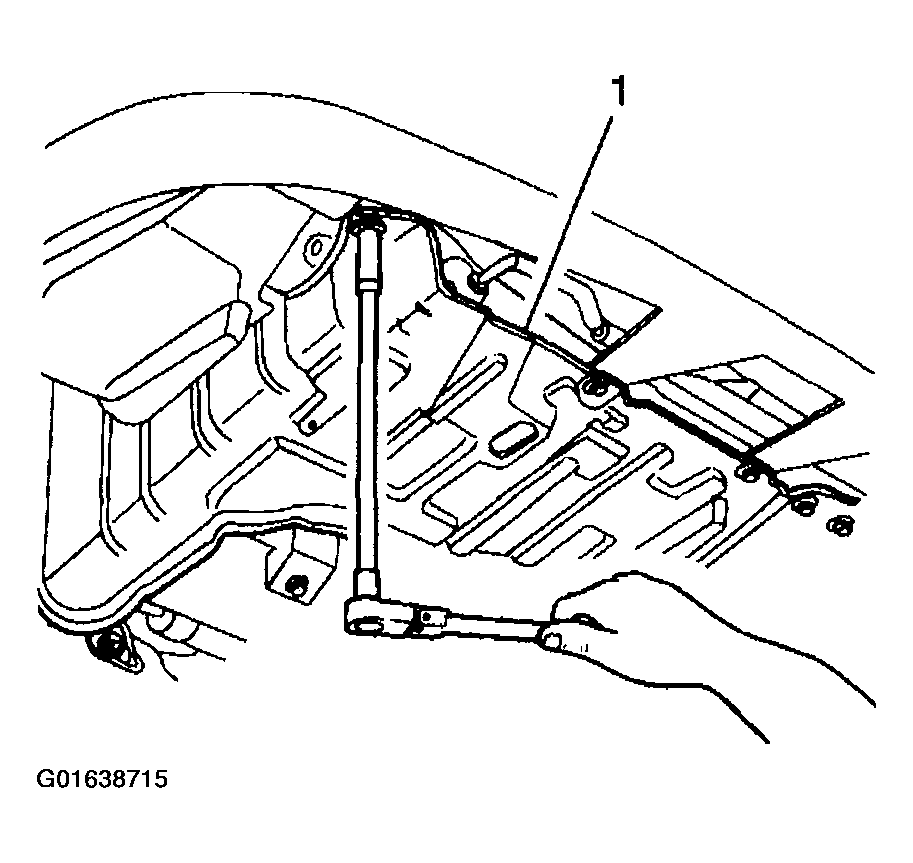

      Fig 1: Removing Engine Splash Shield
      G01638715Courtesy of GENERAL MOTORS CORP.
