Installation Procedure

Important:  Before installing the hood, be sure to apply anti-corrosion treatment to the hood and hood hinge mating surfaces.

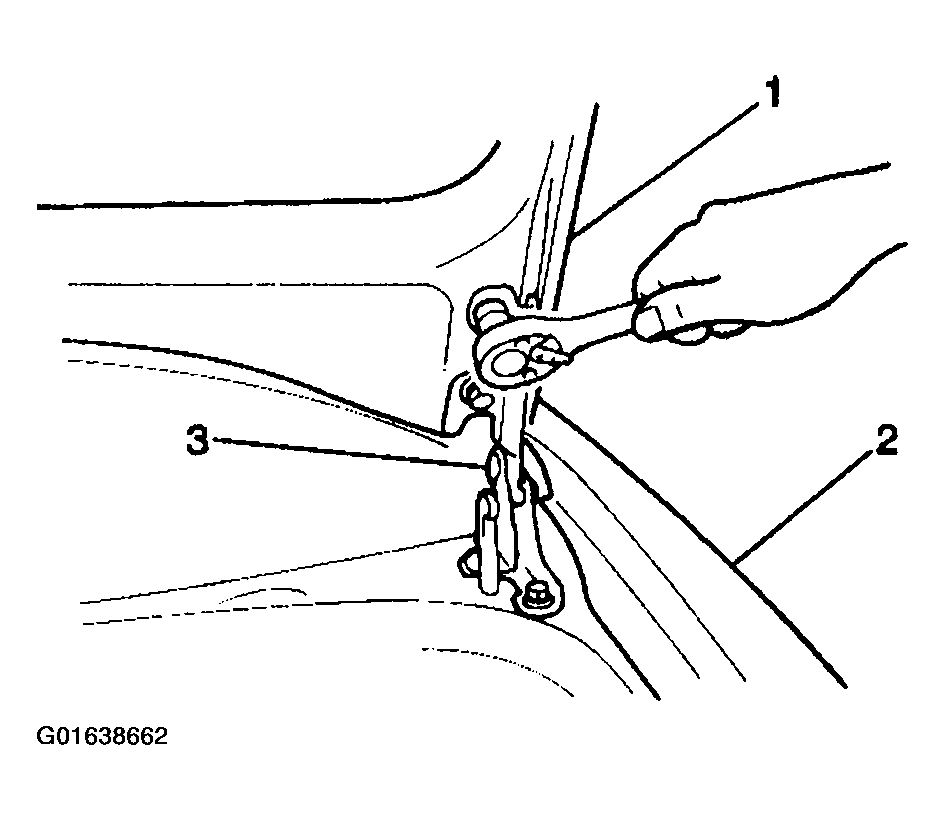

1. Install the hood (1) with the aid of a helper to the hood hinges (3), aligning the mating marks. Secure the hood with 2 mounting bolts at each hinge. Do not tighten fully.
   Fig 1: Installing Hood

   Courtesy of GENERAL MOTORS CORP.

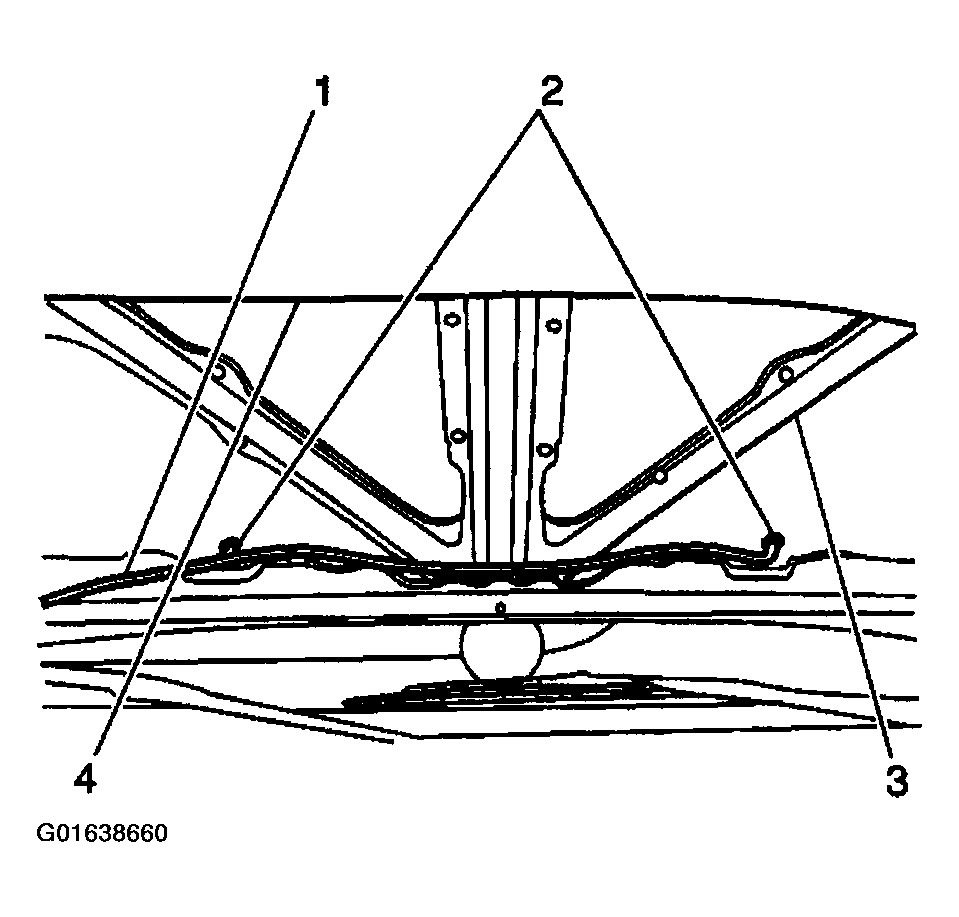

2. Install the windshield washer nozzles (2) and supply hose (1) to the hood (3).
   Fig 2: Installing Windshield Washer Nozzles And Supply Hose

   Courtesy of GENERAL MOTORS CORP.

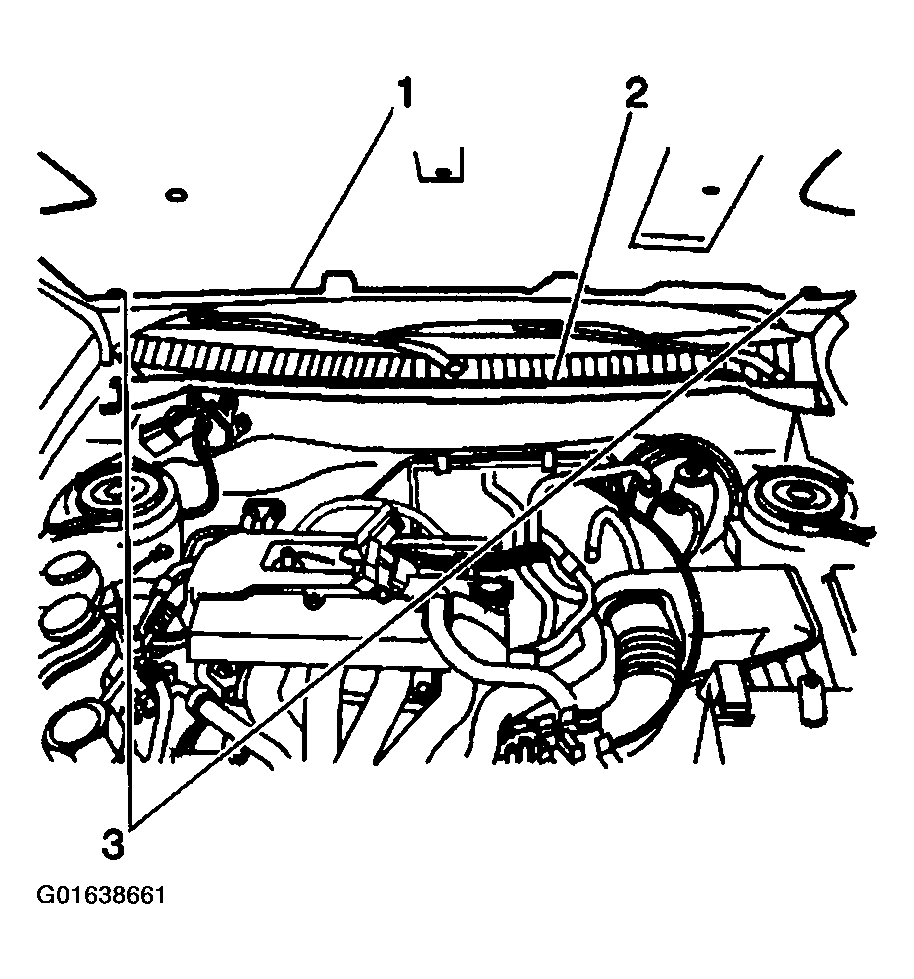

3. Reposition the hood insulator (1) and secure with the 2 plastic retainers (3).
   Fig 3: Repositioning Hood Insulator

   Courtesy of GENERAL MOTORS CORP.
4. Remove the protective covers from the front fenders (2).
5. Adjust the hood if necessary. Refer to Hood Adjustment .
   Fig 4: Removing Protective Covers From Front Fenders

   Courtesy of GENERAL MOTORS CORP.
