Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

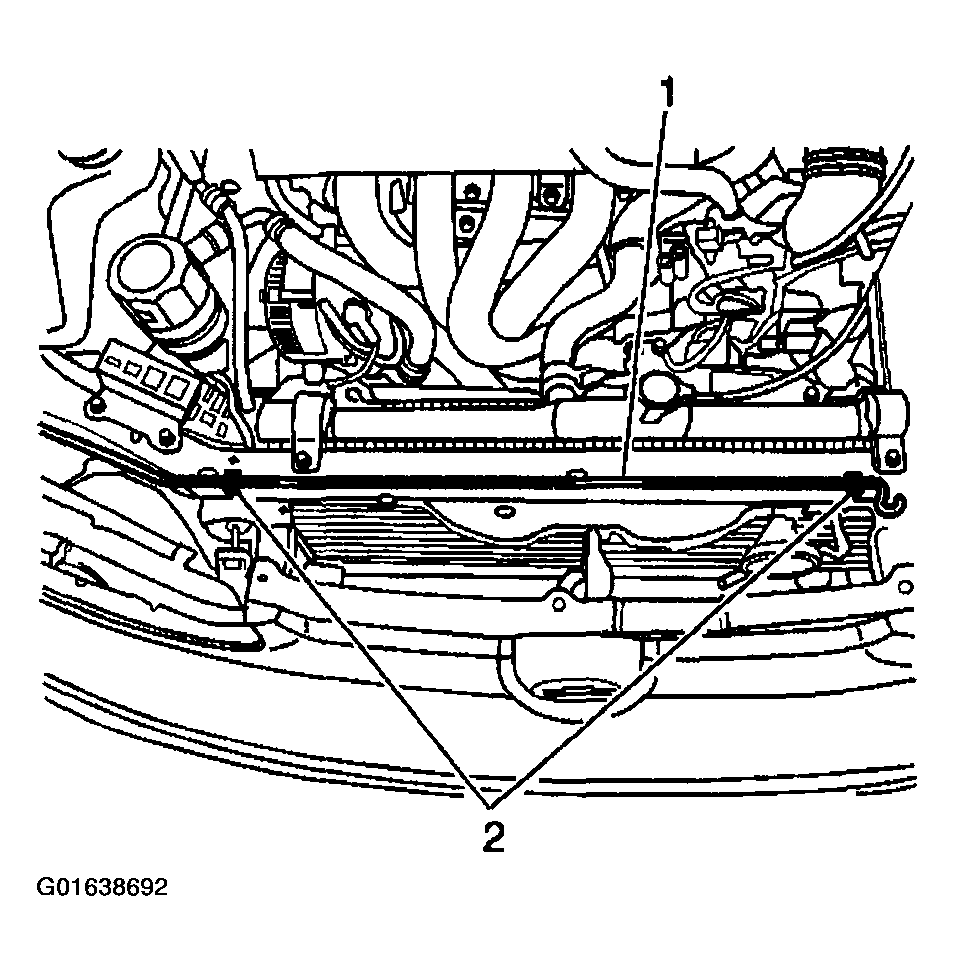

Install the hold-open rod (1) to the pivot clip (2).
Push in and rotate the rod (1) 90 degrees clockwise.

Fig 1: Installing Hold-Open Rod To Pivot Clip
Courtesy of GENERAL MOTORS CORP.

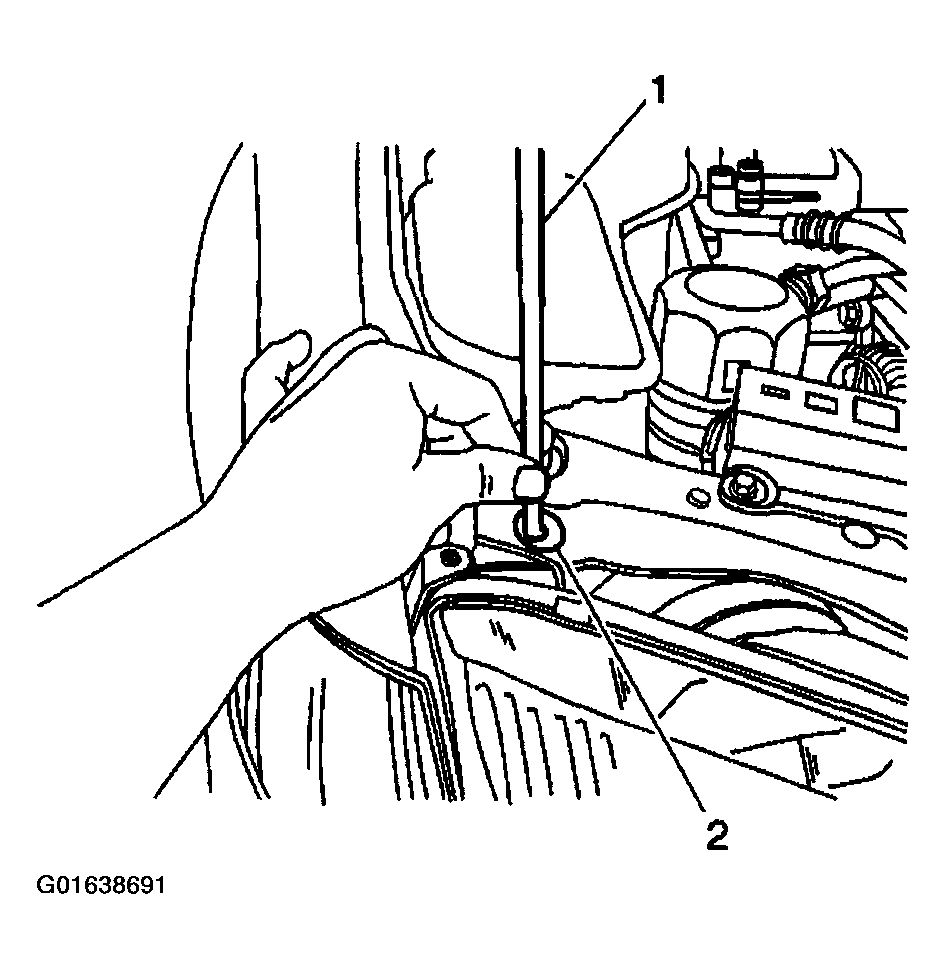

Install the hold-open rod (1) into the retaining clips (2).
Lower the hood.

Fig 2: Installing Hold-Open Rod Into Retaining Clips
Courtesy of GENERAL MOTORS CORP.
