Installation Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

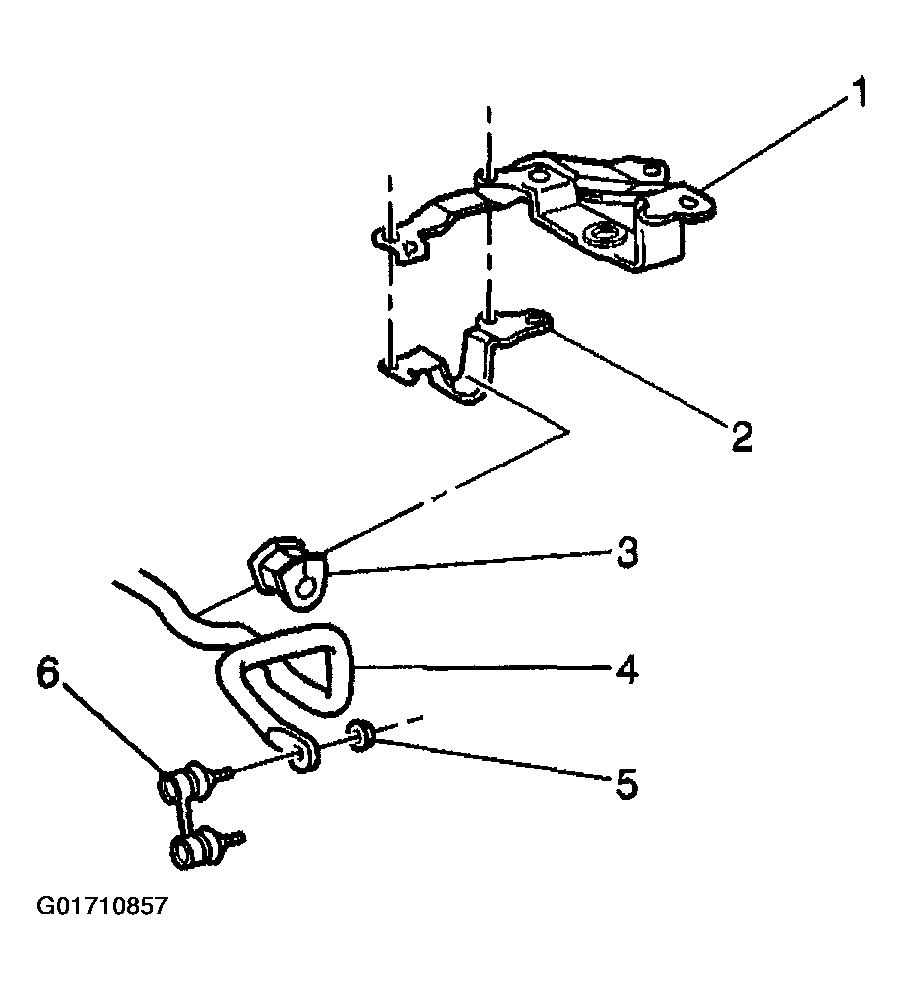

- Install the insulator (3) to the stabilizer shaft (4).
- Install the clamp (2) to the insulator.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Secure the clamp to the vehicle with the nut (2).
Tighten
Tighten the nut to 19 N.m (14 ft lbs).
- Install the stud (3).
Tighten
Tighten the stud to 147 N.m (109 ft lbs).
- Install the bolt (1).
Tighten
Tighten the bolt to 225 N.m (167 ft lbs).

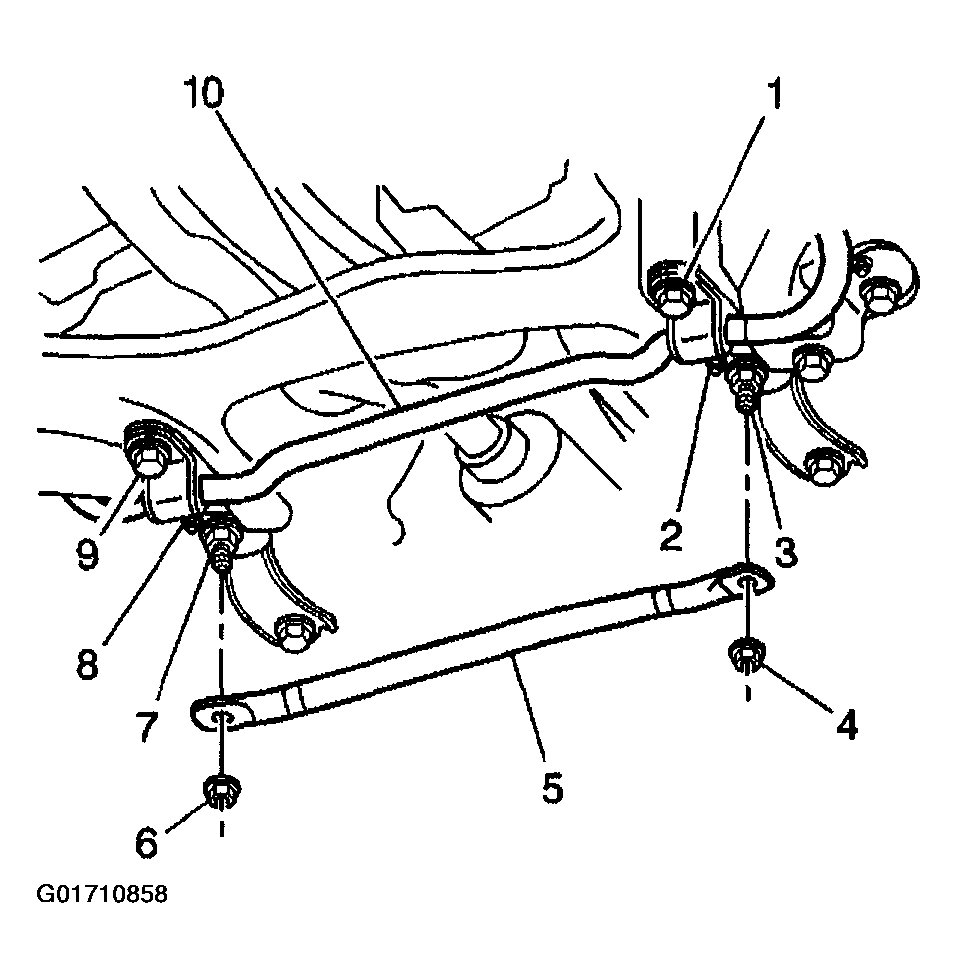

- Install the front suspension brace (5). Secure the brace to the studs with the 2 nuts (4, 6).
Tighten
Tighten the nuts to 69 N.m (51 ft lbs).
- Lower the vehicle.
