Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlining trim finish panel through a rear door.
  2. Install the headlining panel (1) to the roof panel. Secure the headlining panel with the rear 3 plastic retainers (5).

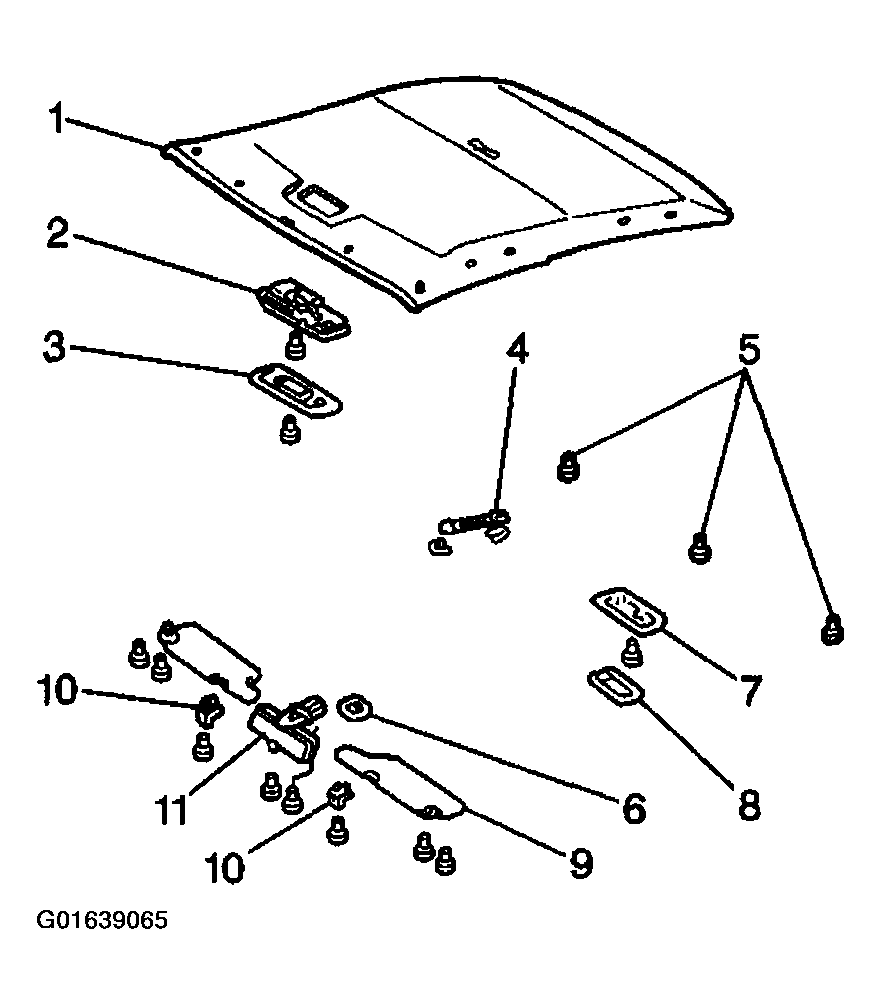

    Fig 1: Installing Headlining Panel
    G01639065Courtesy of GENERAL MOTORS CORP.
  3. Install the dome lamp. Refer to DOME LAMP REPLACEMENT .
  4. Install the courtesy and reading lamp/sunroof switch assembly. Refer to POWER SUNROOF SWITCH REPLACEMENT .
  5. Install the sunshades and retainers. Refer to Sunshade Replacement .
  6. Install the windshield side garnish moldings (1) to the vehicle. Ensure that the plastic retainers are fully engaged.

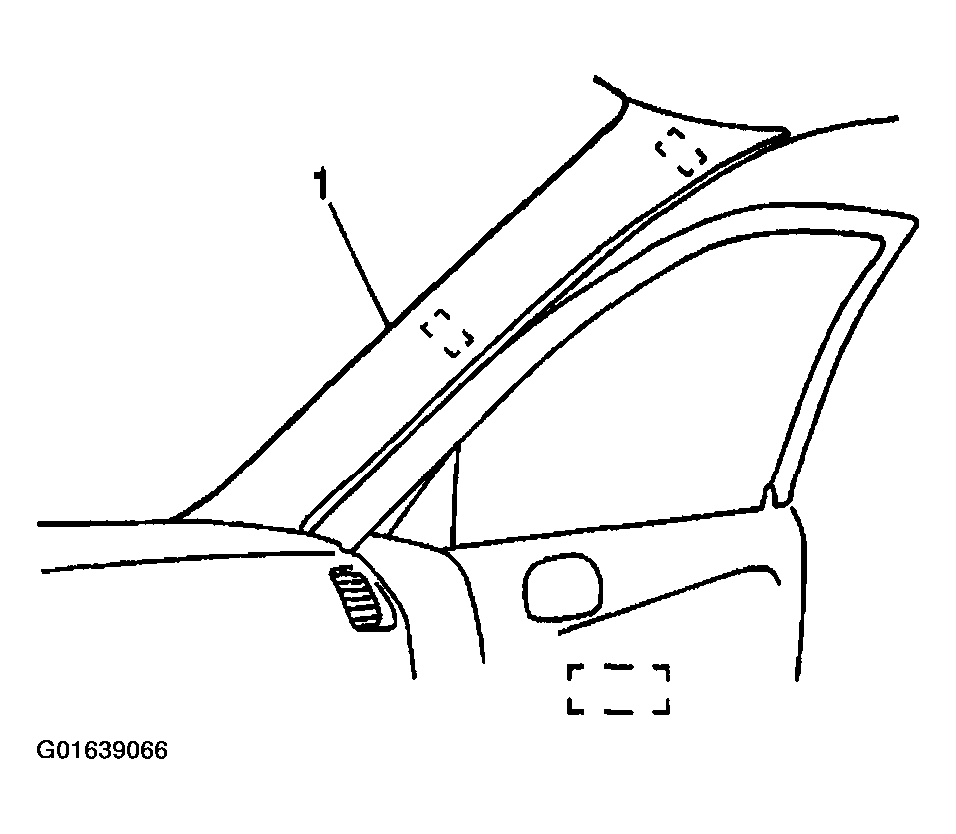

    Fig 2: Installing Windshield Side Garnish Moldings
    G01639066Courtesy of GENERAL MOTORS CORP.
  7. Install the front assist handle. Refer to Assist Handle Replacement .
  8. Install the rear assist handles. Refer to Assist Handle and Rear Coat Hook Replacement .
  9. Install the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - Upper Center Pillar .
  10. Reposition the door opening frame garnish moldings (1,2) on all doors to the correct position on the pinch well flange.

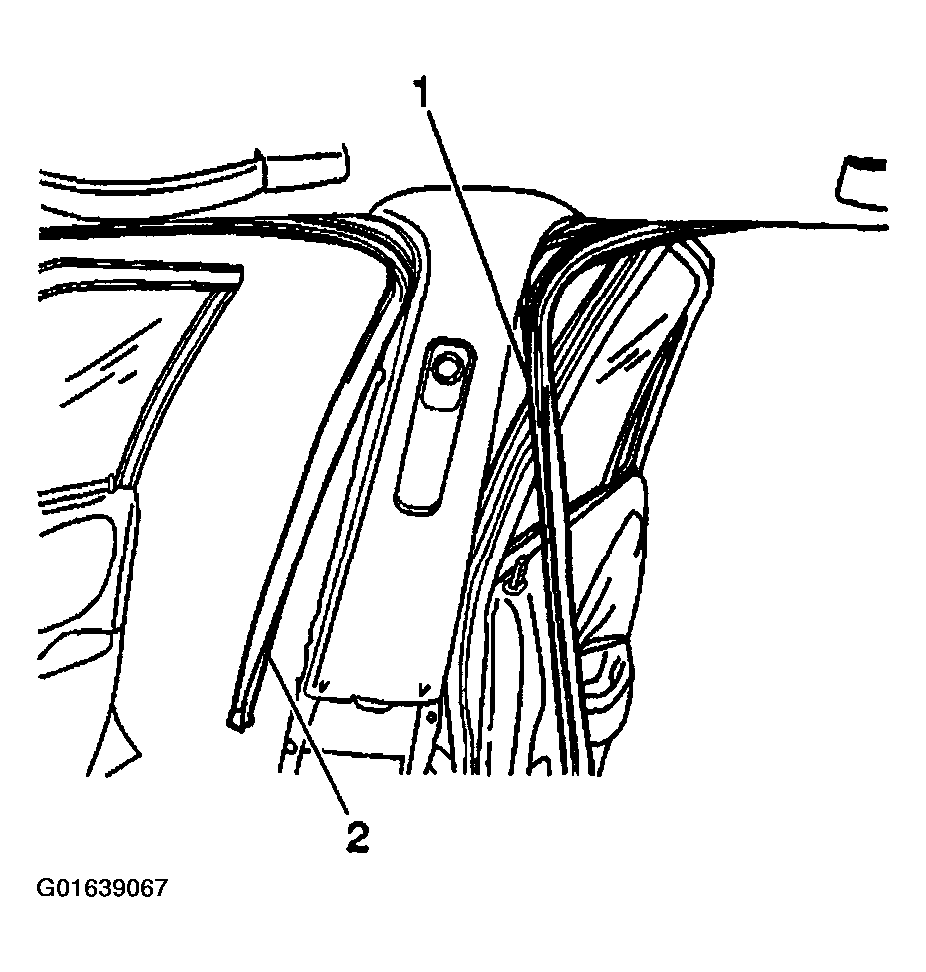

    Fig 3: Repositioning Door Opening Frame Garnish Moldings
    G01639067Courtesy of GENERAL MOTORS CORP.
  11. Install the quarter upper trim panels (2). Ensure that the plastic retainers are fully engaged.
  12. Position the front seat back cushions back to the upright position.

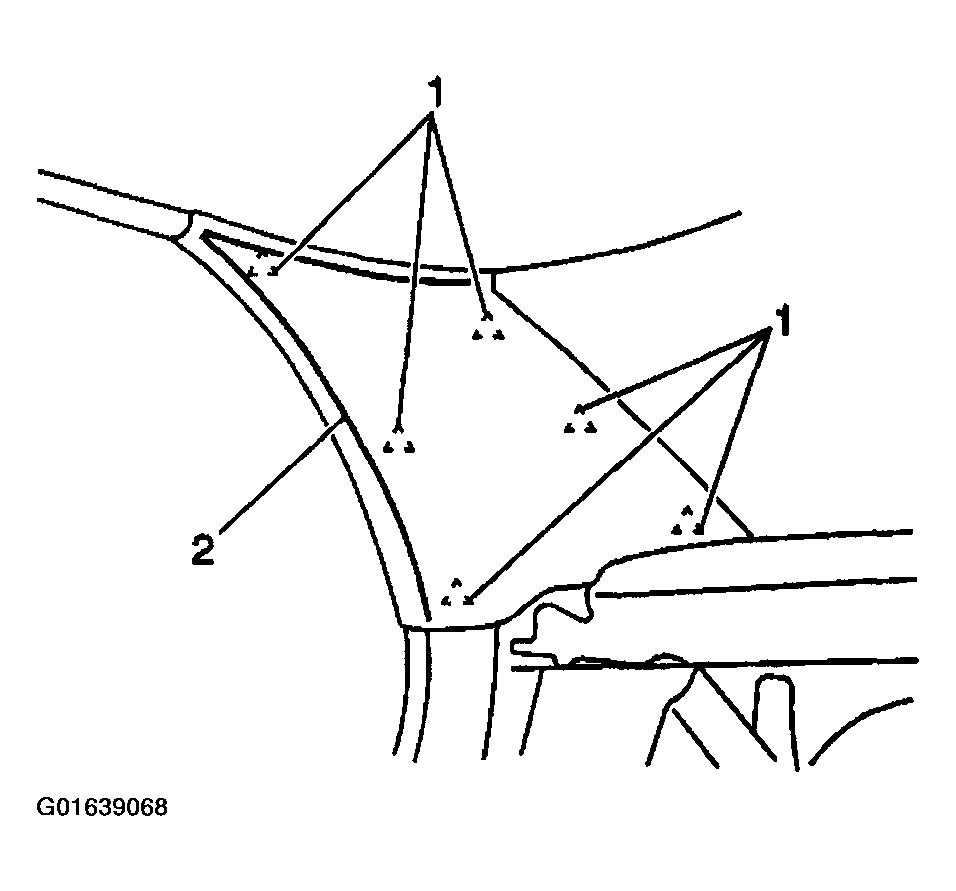

    Fig 4: Installing Quarter Upper Trim Panels
    G01639068Courtesy of GENERAL MOTORS CORP.
