Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

Install the foot rest (5) to the floor panel studs. Secure the foot rest with the 2 plastic retainers (4).

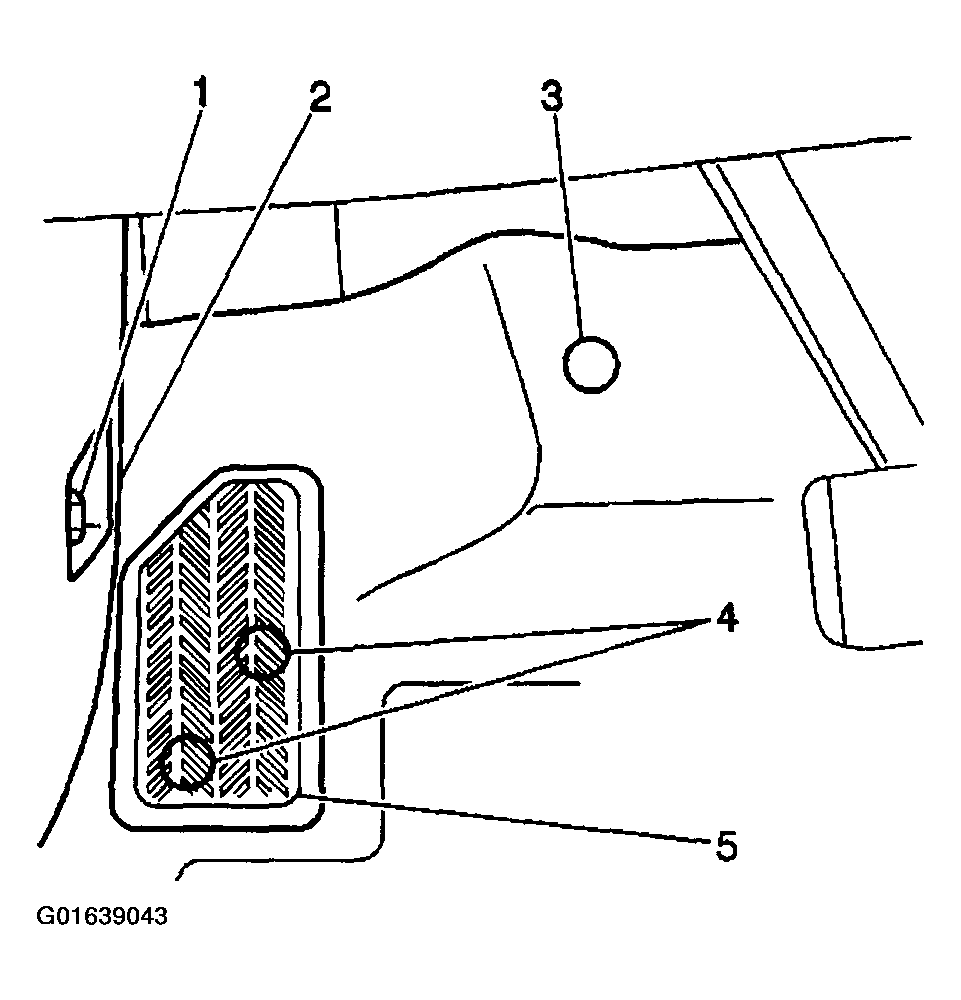

Fig 1: Installing Foot Rest
G01639043Courtesy of GENERAL MOTORS CORP.
