Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front assist handle (2) to the roof. Secure the handle with the 2 screws (1).
  2. Install the front assist handle trim covers (3) that conceal the screws.

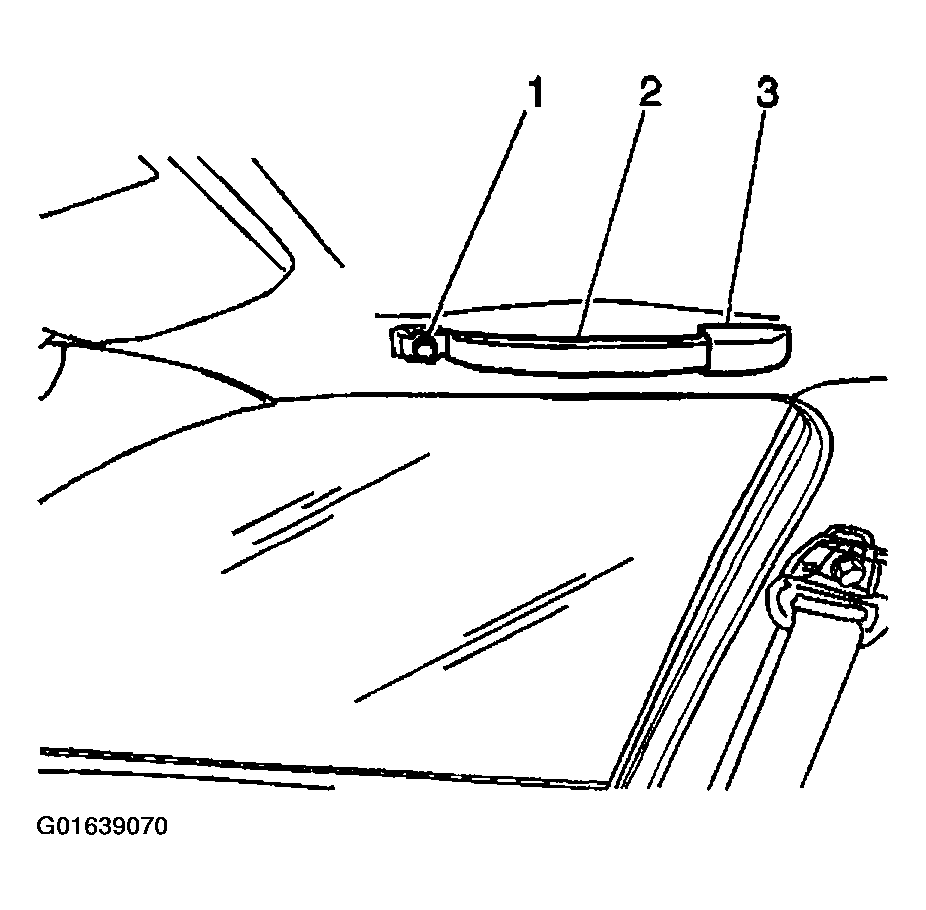

    Fig 1: Installing Front Assist Handle to roof And Securing Handle With 2 Screws
    G01639070Courtesy of GENERAL MOTORS CORP.
