Installation Procedure

Install the roof drip scalp molding (1) using the following method:

  1. Begin installing the roof drip scalp molding (1) at the rear of the door opening.
  2. Press the entire length of the roof drip scalp molding (1) in order to secure the molding.

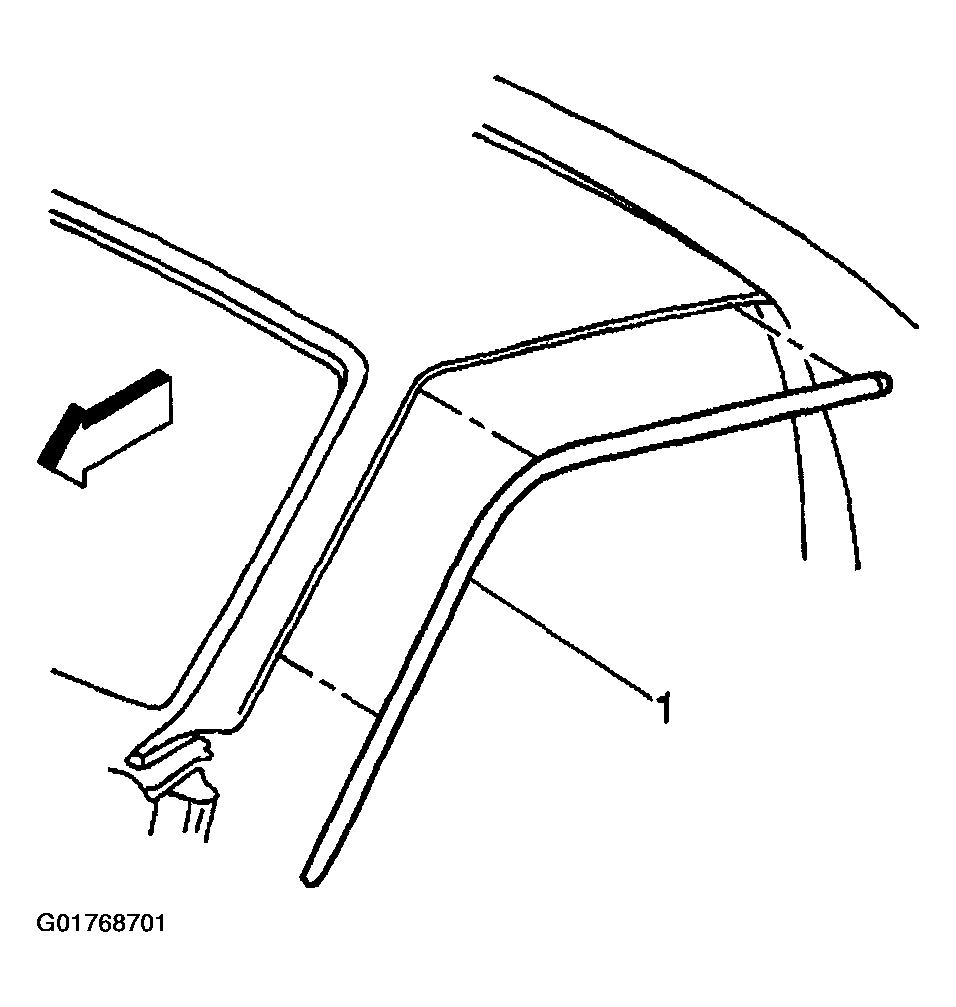

    Fig 1: Installing Roof Drip Scalp Molding
    G01768701Courtesy of GENERAL MOTORS CORP.
