Power Roof Systems Connector End Views

Fig 1: Folding Top Pump with Motor

Courtesy of GENERAL MOTORS CORP.

Fig 2: Folding Top Switch (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

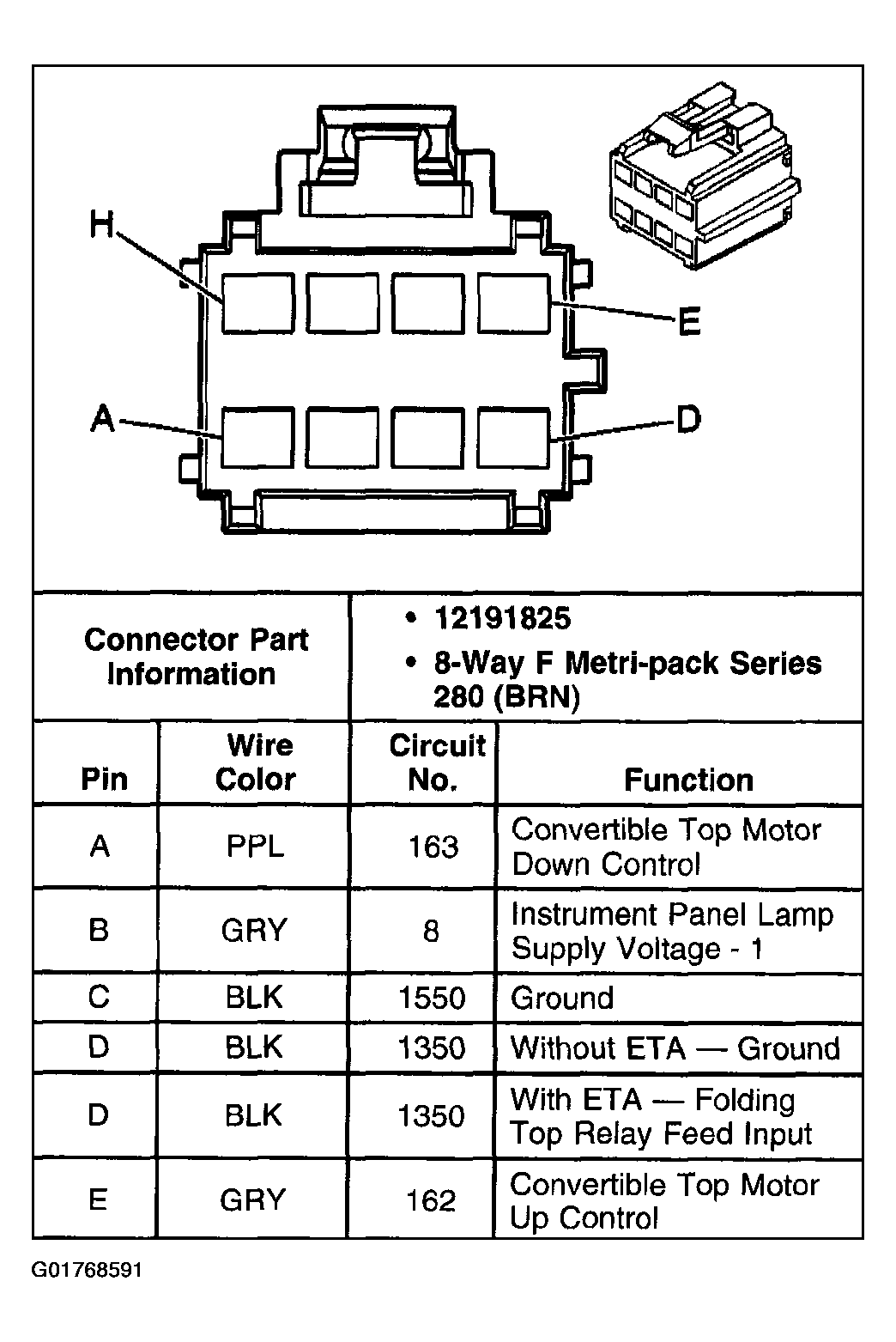

Fig 3: Folding Top Switch (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
