Cruise Control Clutch Switch

Depress clutch pedal and insert cruise control clutch switch into proper pedal receptacle until retainer on switch is fully seated. See Fig 1. Slowly pull clutch pedal back to its fully retracted position (requires 50 lbs. of force) until click sounds are no longer heard. Switch will move within switch retainer to proper adjustment.

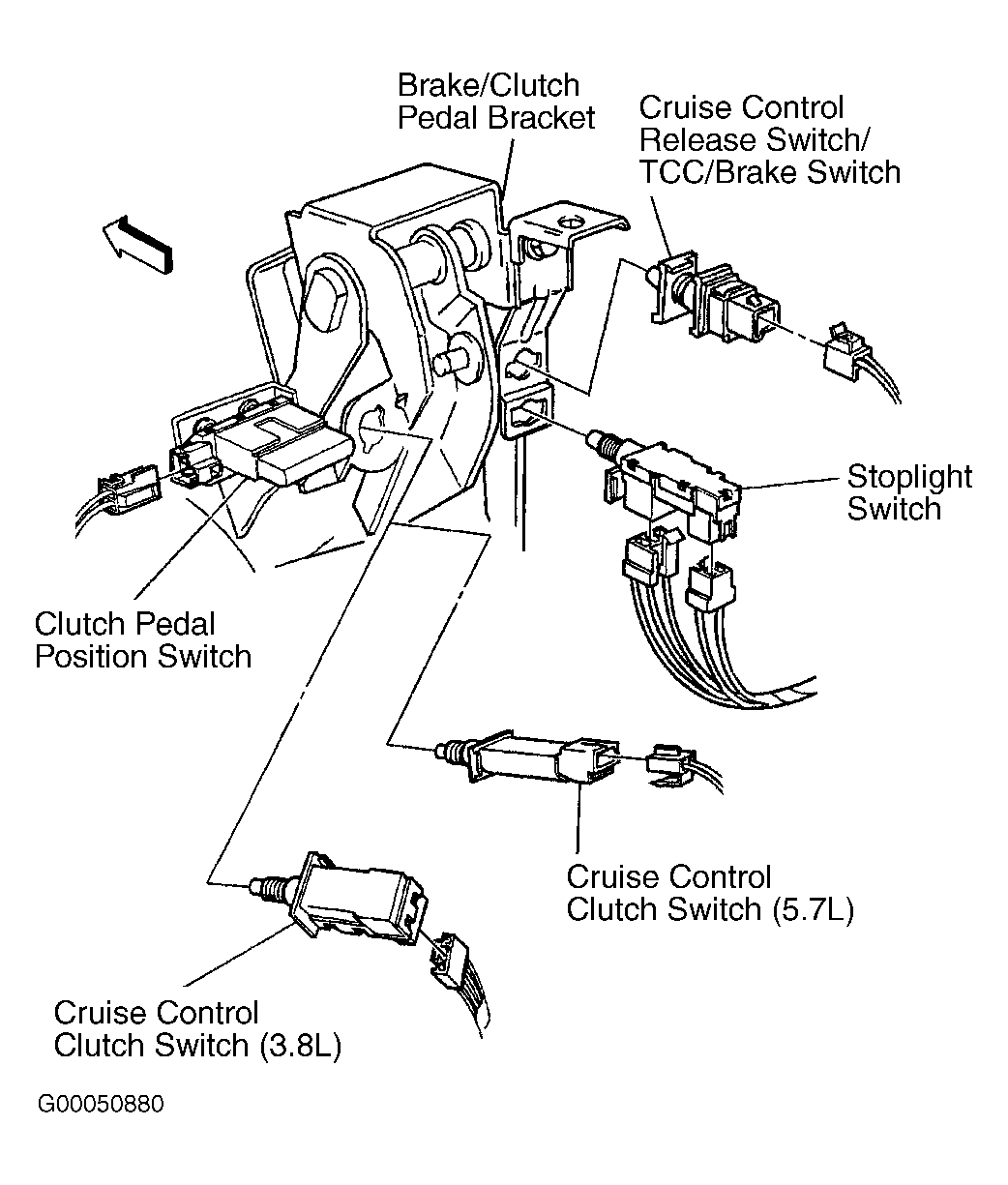

Fig 1: Identifying Cruise Control System Switches
G00050880Courtesy of GENERAL MOTORS CORP.
