Park/Neutral Position Switch: Installation

  1. Ensure that the transmission control is still in the NEUTRAL position. Install the tang on the Park Neutral position switch, into the slot on the transmission control.

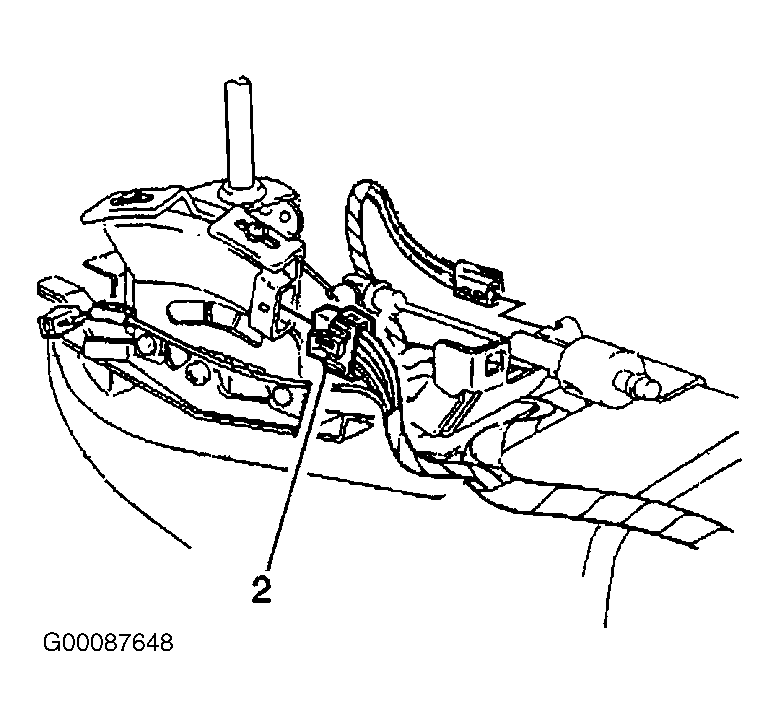

  2. Adjust the Park Neutral switch. See PARK/NEUTRAL POSITION SWITCH  under ADJUSTMENTS. Connect the Park Neutral position switch electrical connector (2). See Figure . Install the front floor console.
