Inflatable Restraint Steering Wheel Module Coil Connector End View (C217)

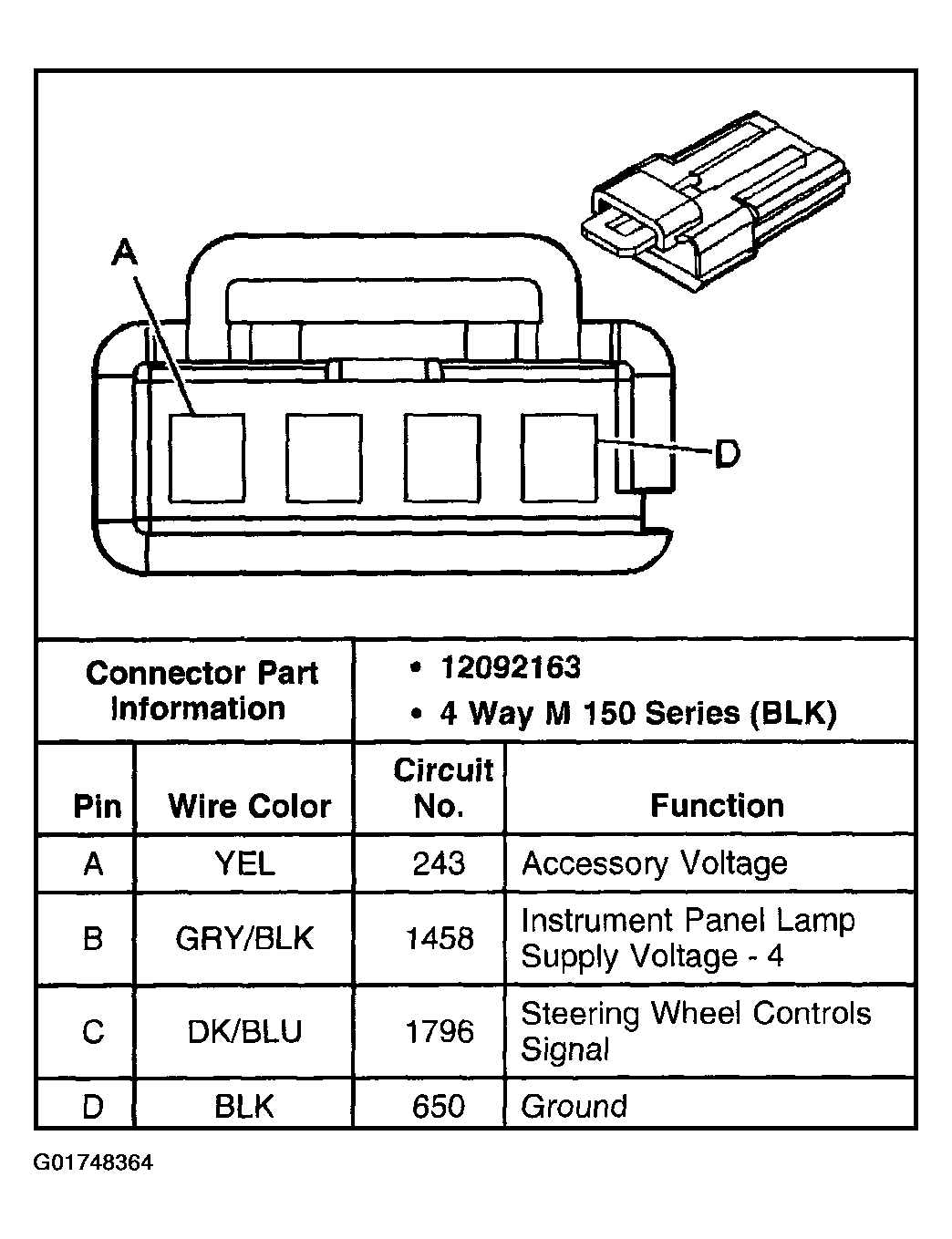

Fig 1: Inflatable Restraint Steering Wheel Module Coil Connector End View (C217)

G01748364

Courtesy of GENERAL MOTORS CORP.
