Removal Procedure

  1. Raise and suitably support the vehicle.
  2. Remove the engine mount heat shield nuts.
  3. Remove the engine mount heat shield.

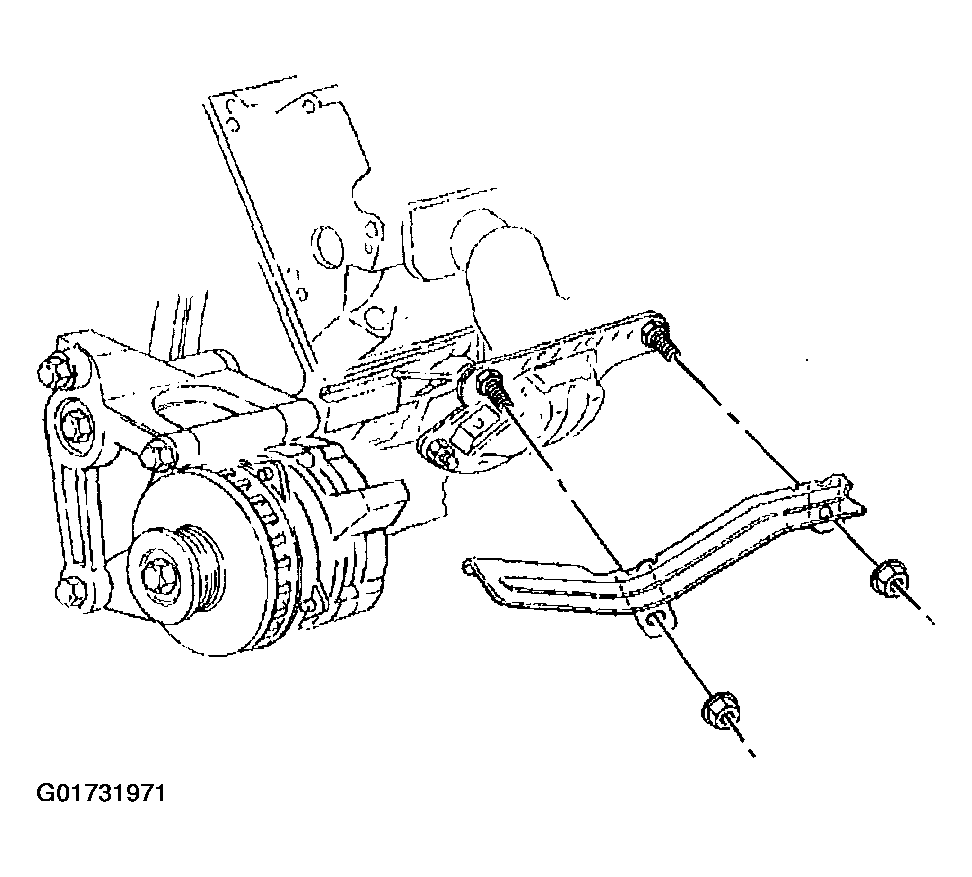

    Fig 1: Removing Engine Mount Heat Shield
    G01731971Courtesy of GENERAL MOTORS CORP.
