Installation Procedure

  1. Install the radiator support.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the radiator support bolts

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

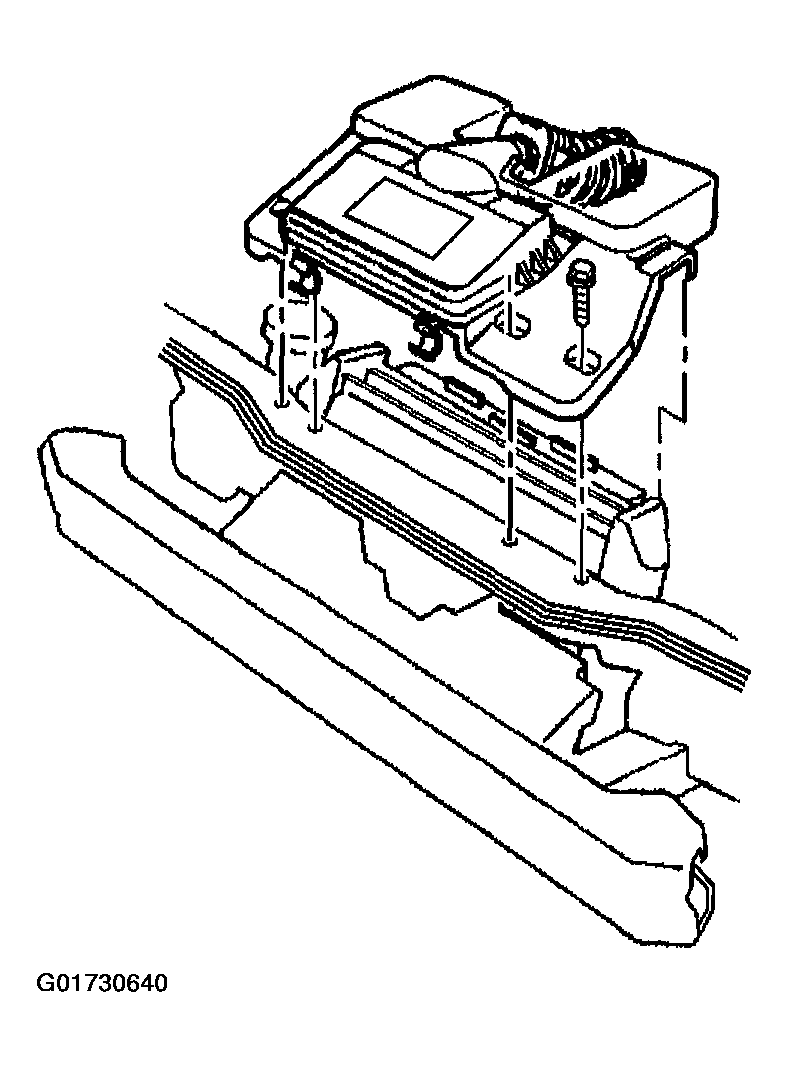

    Fig 1: Installing Radiator Support Bolts
    G01730640Courtesy of GENERAL MOTORS CORP.
  3. Install the intake air duct resonator, if equipped with the 3.8L engine.

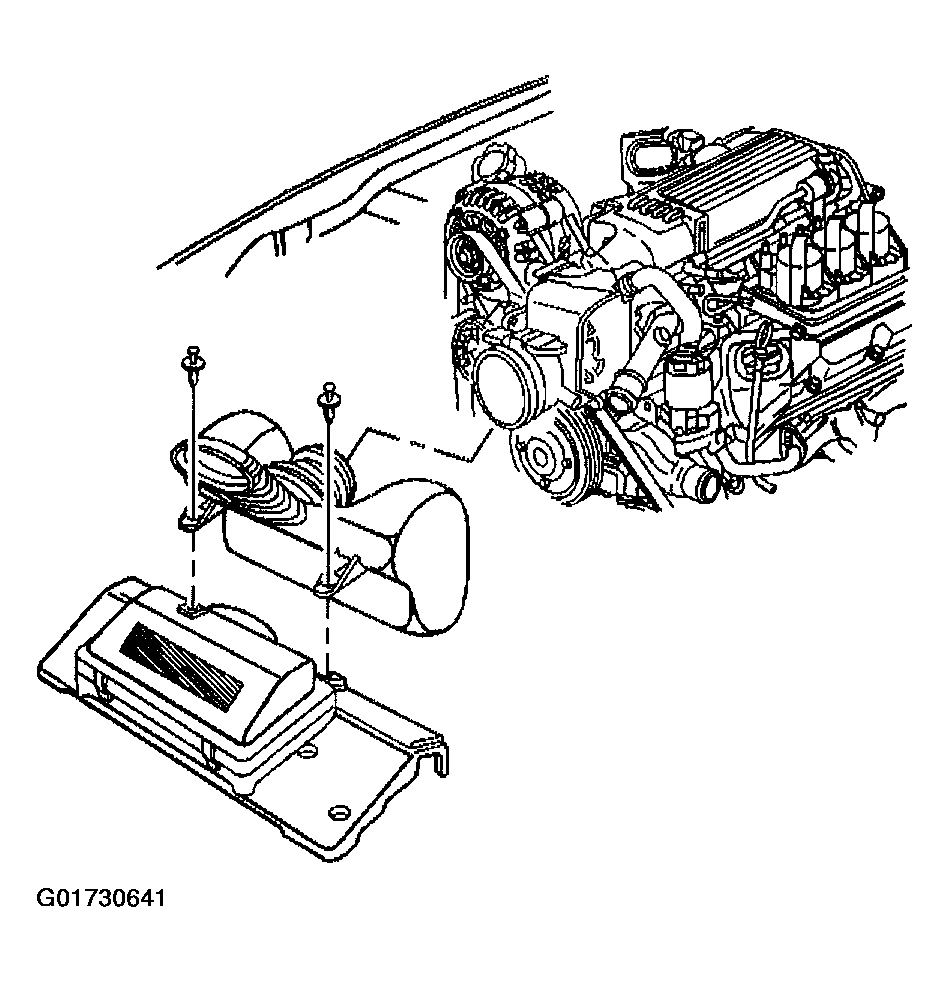

    Fig 2: Installing Intake Air Duct Resonator
    G01730641Courtesy of GENERAL MOTORS CORP.
  4. Connect the intake air temperature sensor electrical connector, if equipped with the 3.8L engine.

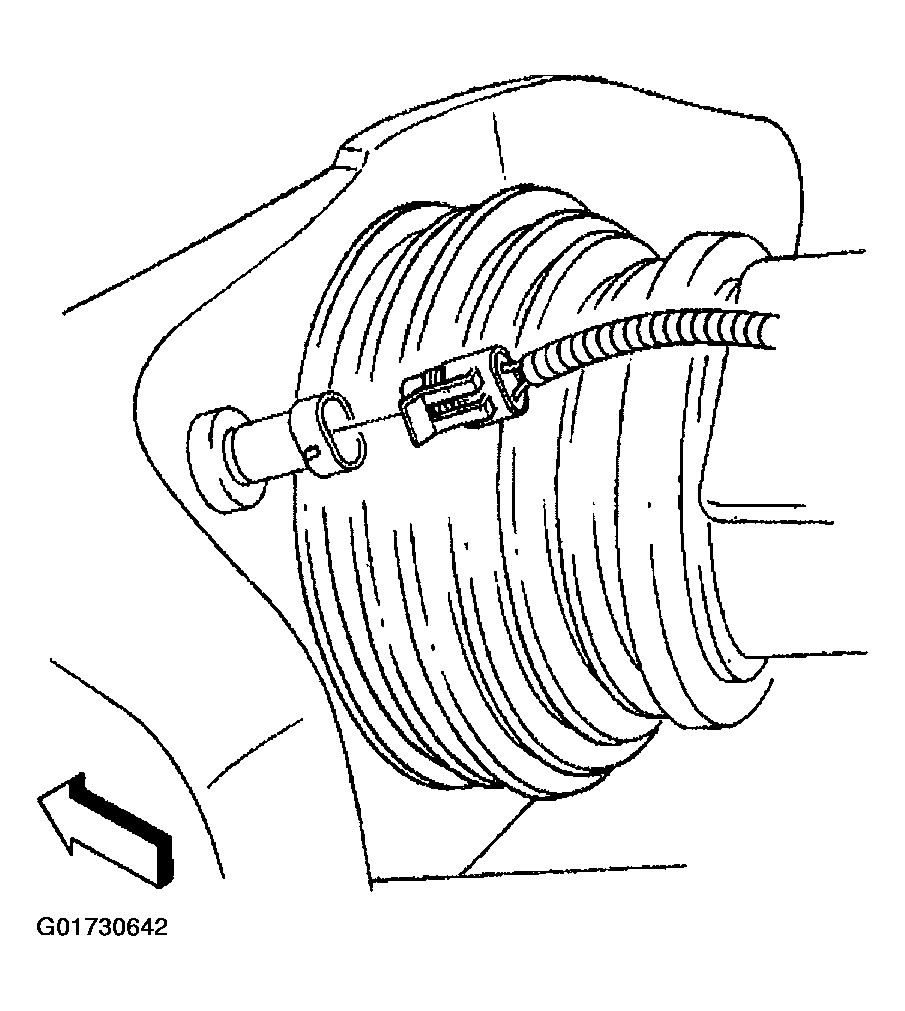

    Fig 3: Connecting Intake Air Temperature Sensor Electrical Connector
    G01730642Courtesy of GENERAL MOTORS CORP.
  5. Install the air cleaner outlet duct, if equipped with the 5.7L engine.

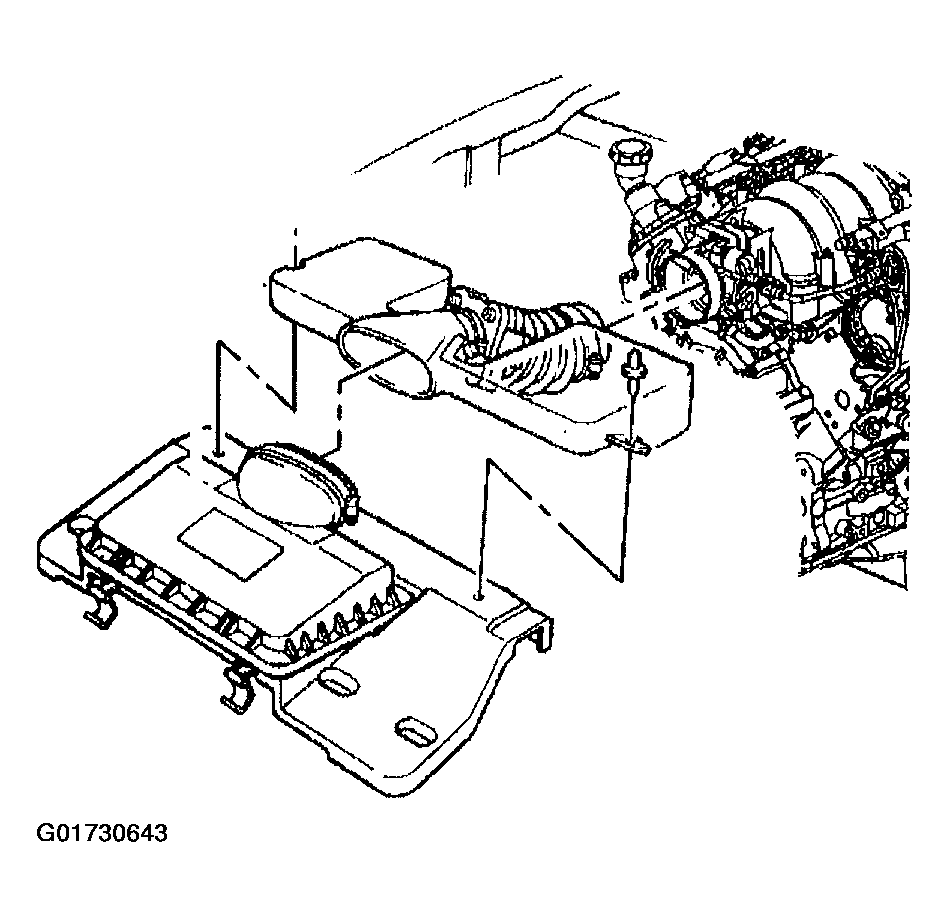

    Fig 4: Installing Air Cleaner Outlet Duct
    G01730643Courtesy of GENERAL MOTORS CORP.
  6. Connect the following electrical connectors, if equipped with the 5.7L engine:
    • Intake air temperature sensor
    • Mass air flow sensor

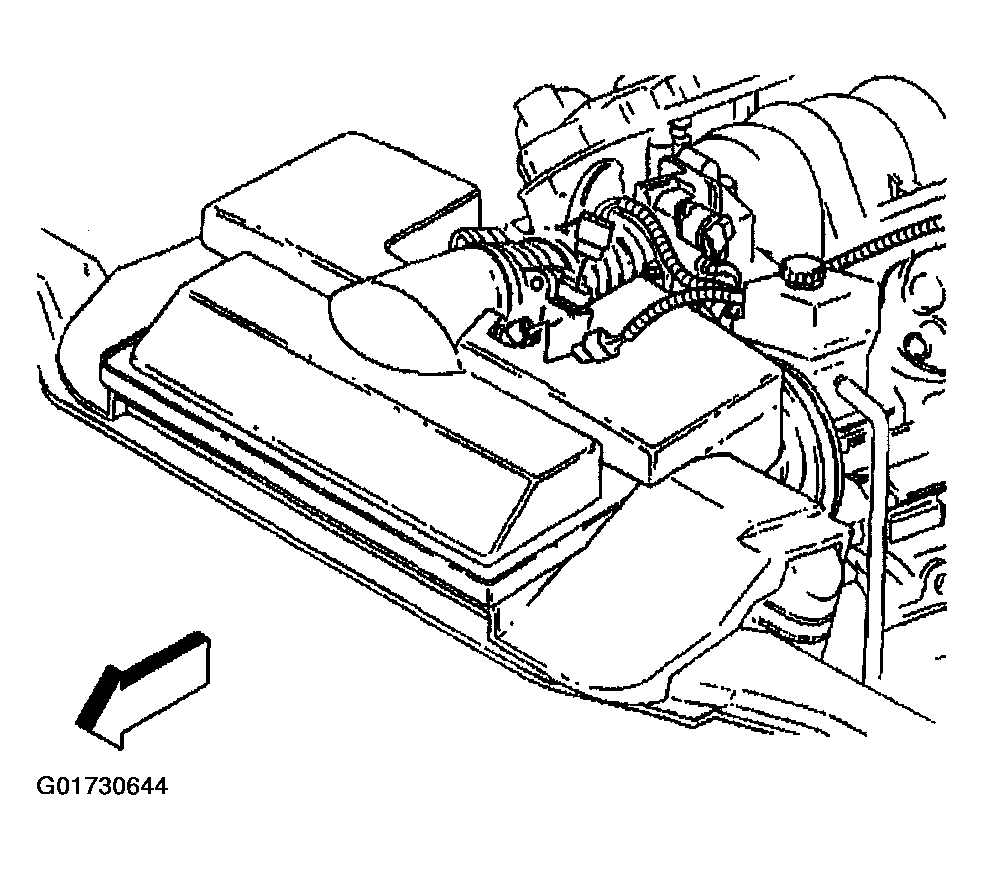

      Fig 5: Connecting Electrical Connectors
      G01730644Courtesy of GENERAL MOTORS CORP.
