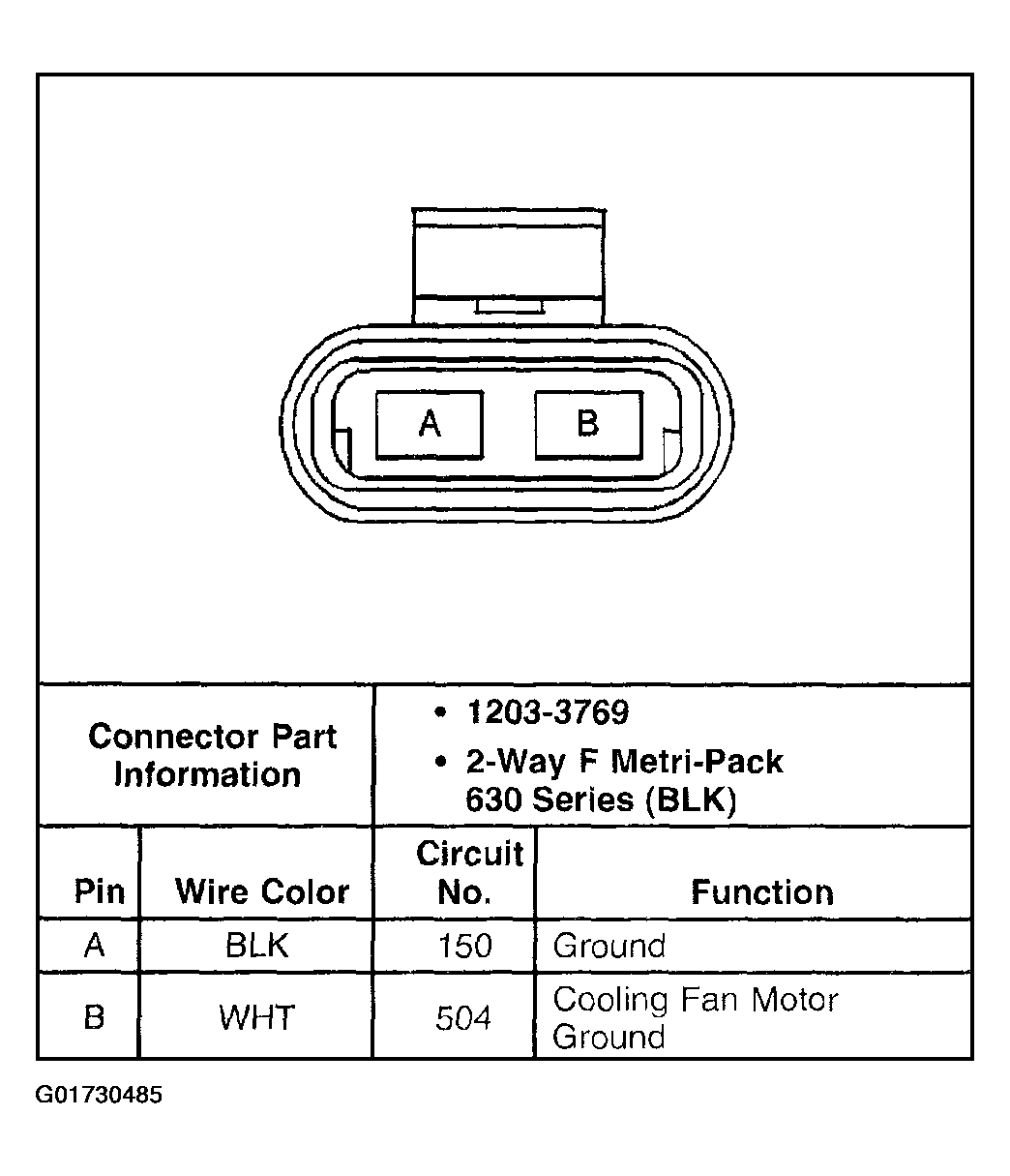

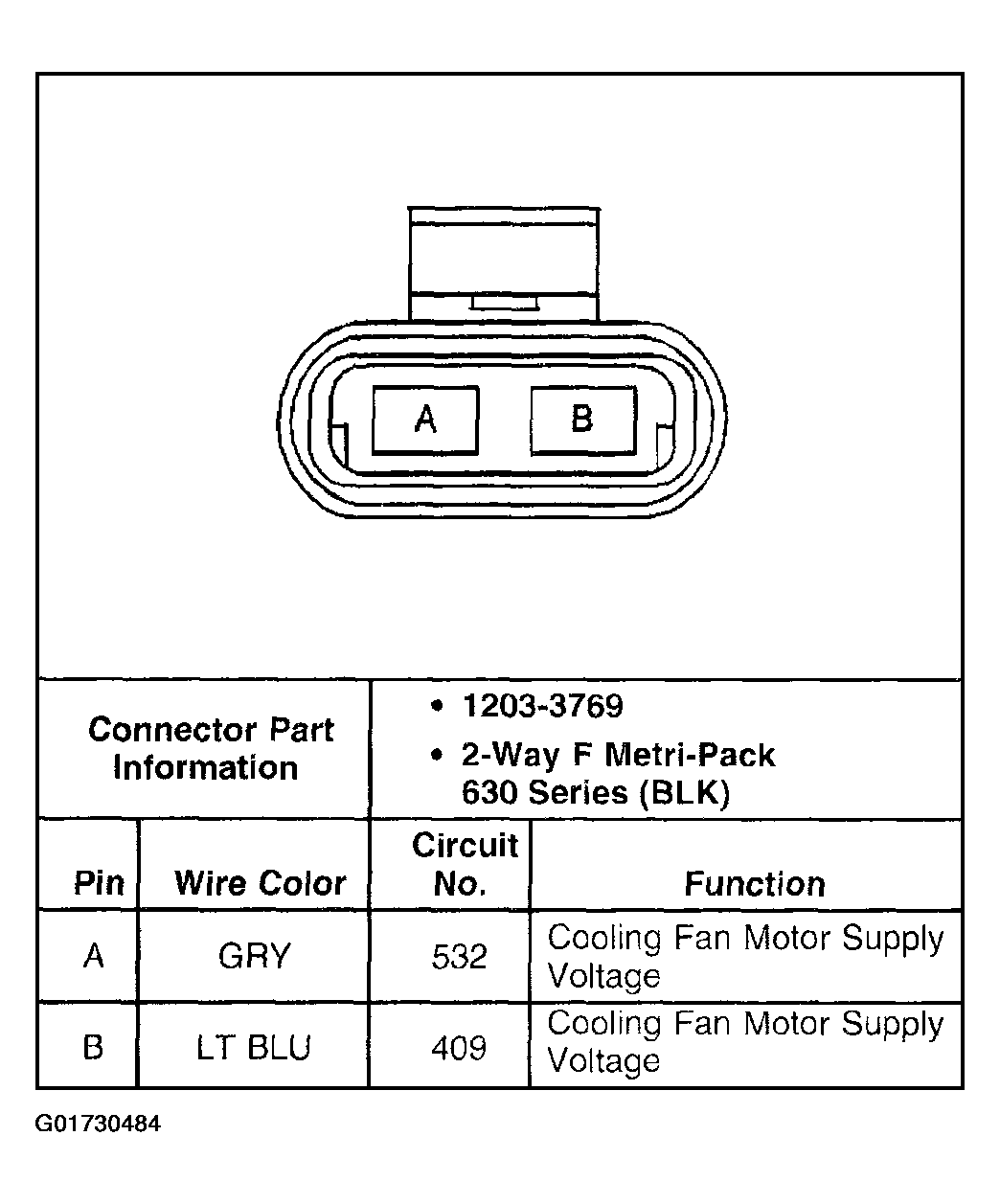

Home >> Pontiac >> 2002 >> Firebird Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> Component Locator >> Cooling System Connector End Views
