Home >> Pontiac >> 2002 >> Firebird Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Traction Control Switch Connector End View

Traction Control Switch Connector End View

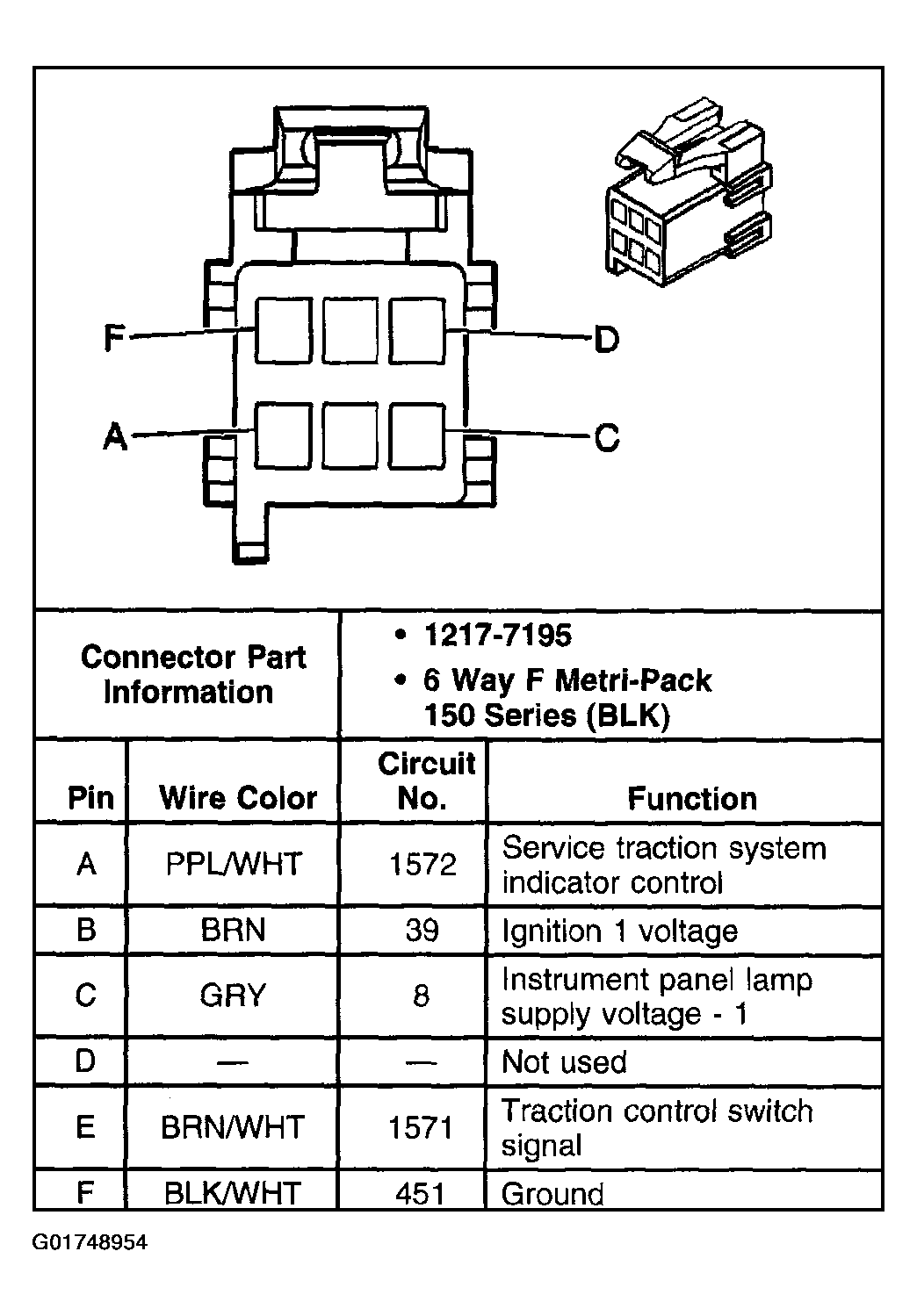

Fig 1: Traction Control Switch Connector End View

G01748954

Courtesy of GENERAL MOTORS CORP.
