Remote Compact Disc Player Connector End View

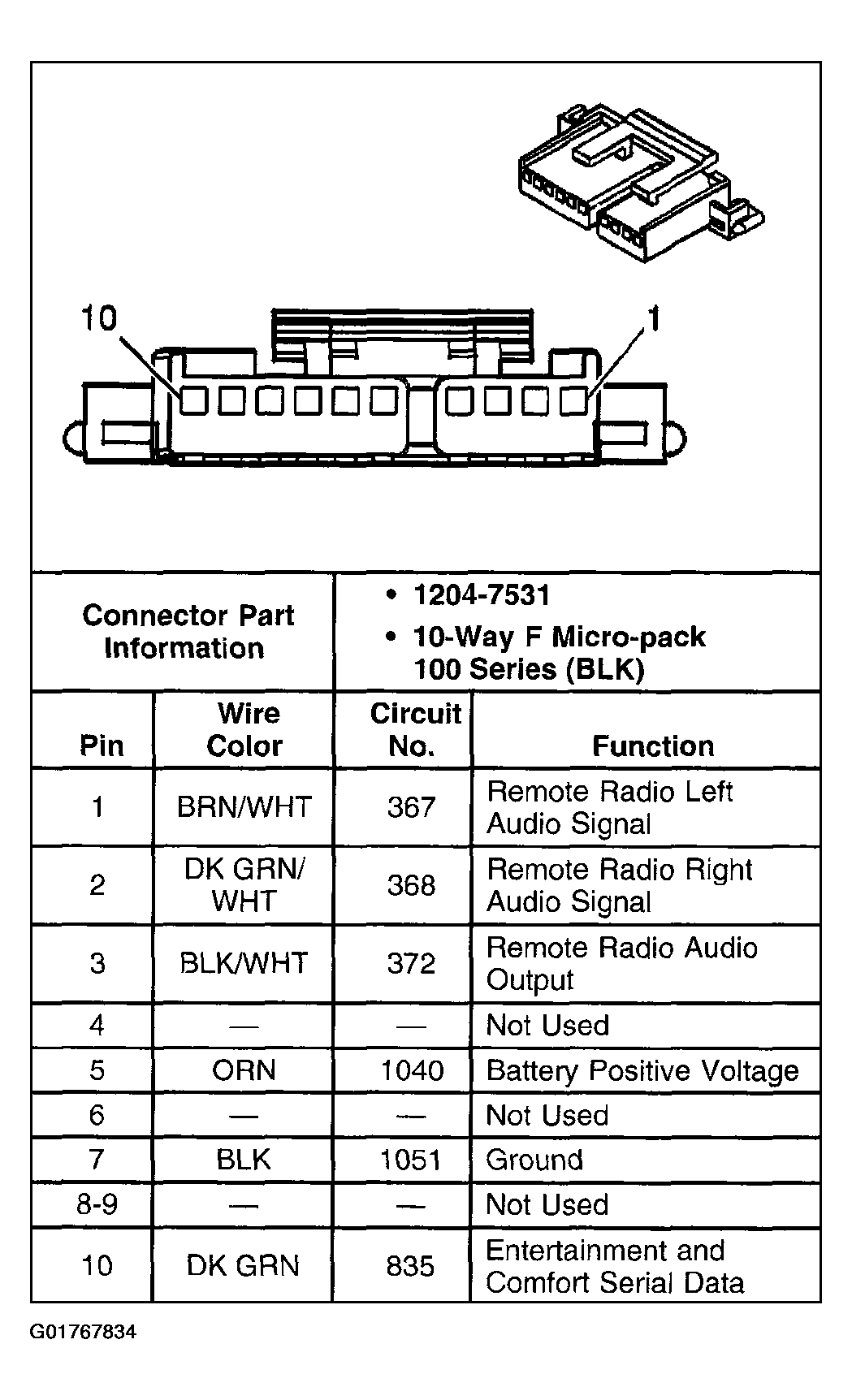

Fig 1: Remote Compact Disc Player Connector End View

G01767834

Courtesy of GENERAL MOTORS CORP.
