Installation Procedure

  1. Insert switches (4) into accessory panel (3).
  2. Connect the electrical connector (5) to the switches (4).
  3. Insert the front edge of the drivers side accessory panel (3), and or the rear edge of the passenger side accessory panel (3), into the door trim panel.
  4. Press the rear edge of the drivers side accessory panel (3), and or the front edge of the passenger side accessory panel (3) until fully seated.

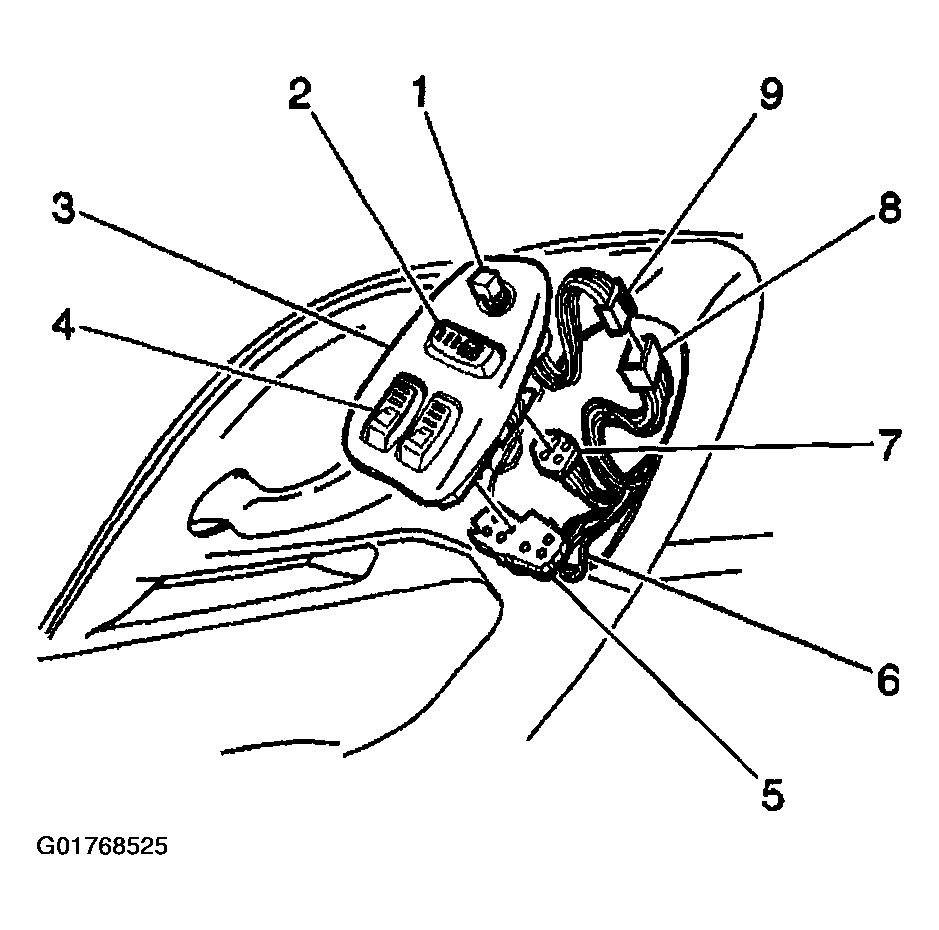

    Fig 1: Installing Window Switch (Chevrolet)
    G01768525Courtesy of GENERAL MOTORS CORP.
