Power Door Systems Component Views

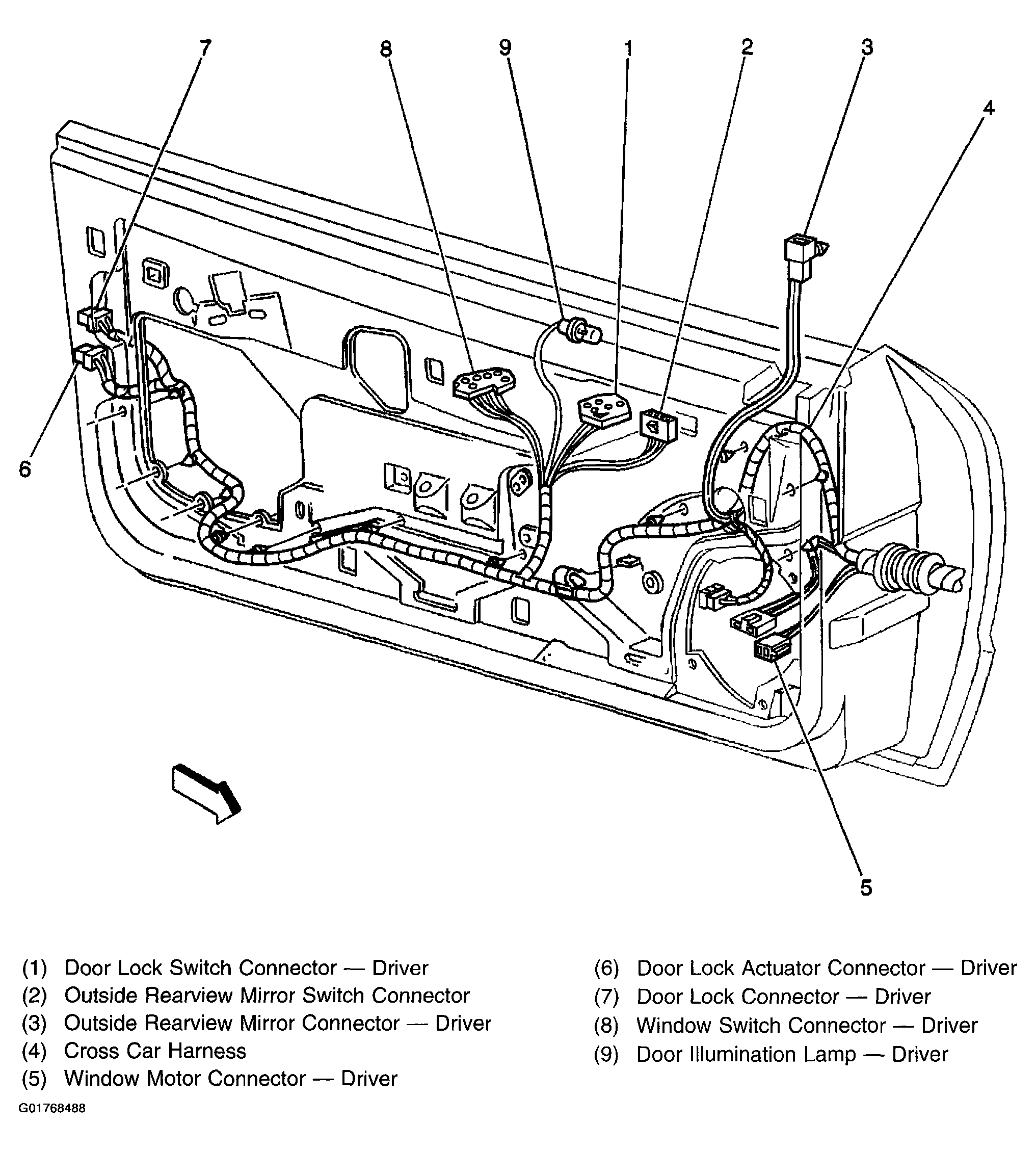

Fig 1: Drivers Door
G01768488Courtesy of GENERAL MOTORS CORP.

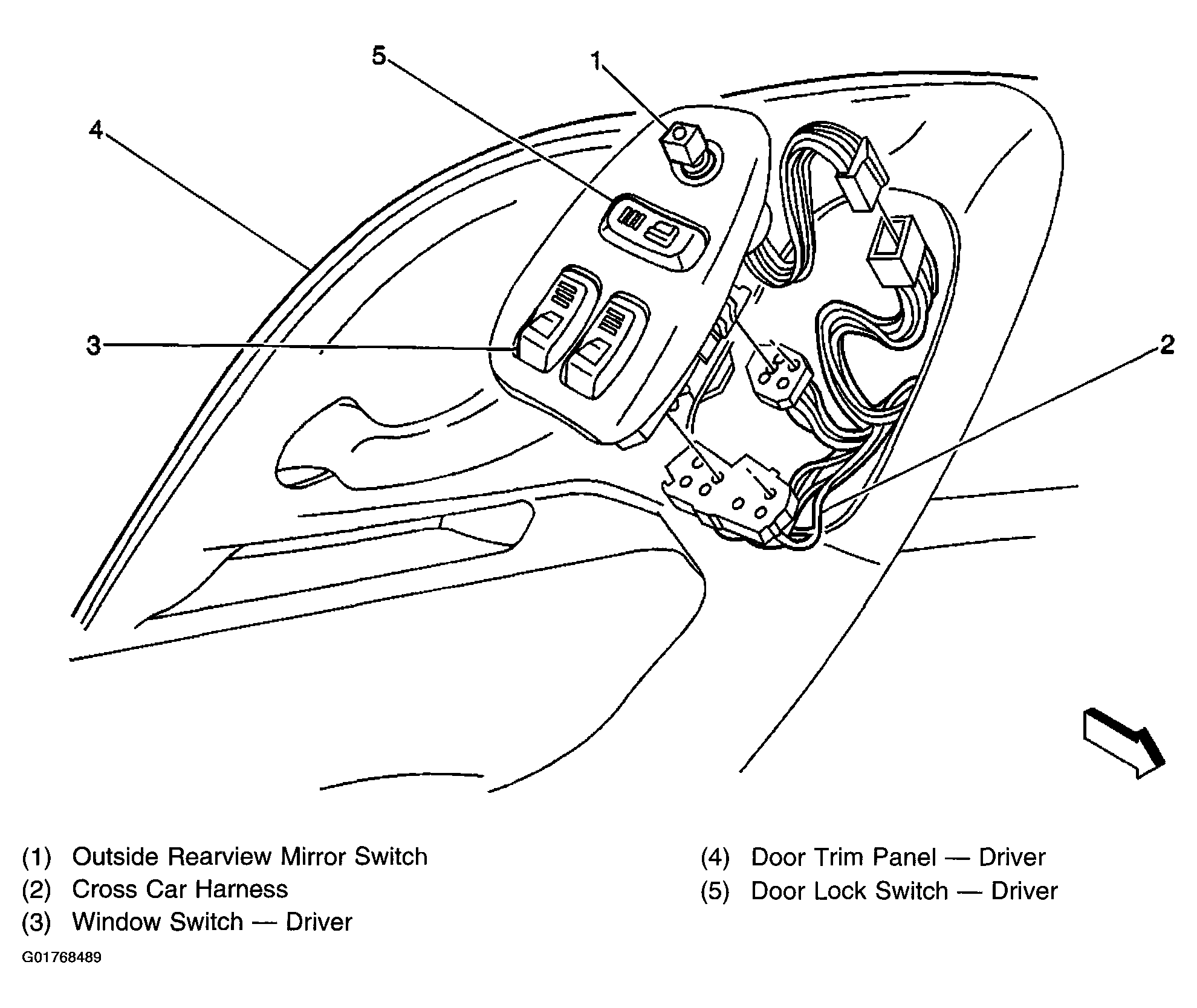

Fig 2: Drivers Door Armrest - Chevrolet
G01768489Courtesy of GENERAL MOTORS CORP.

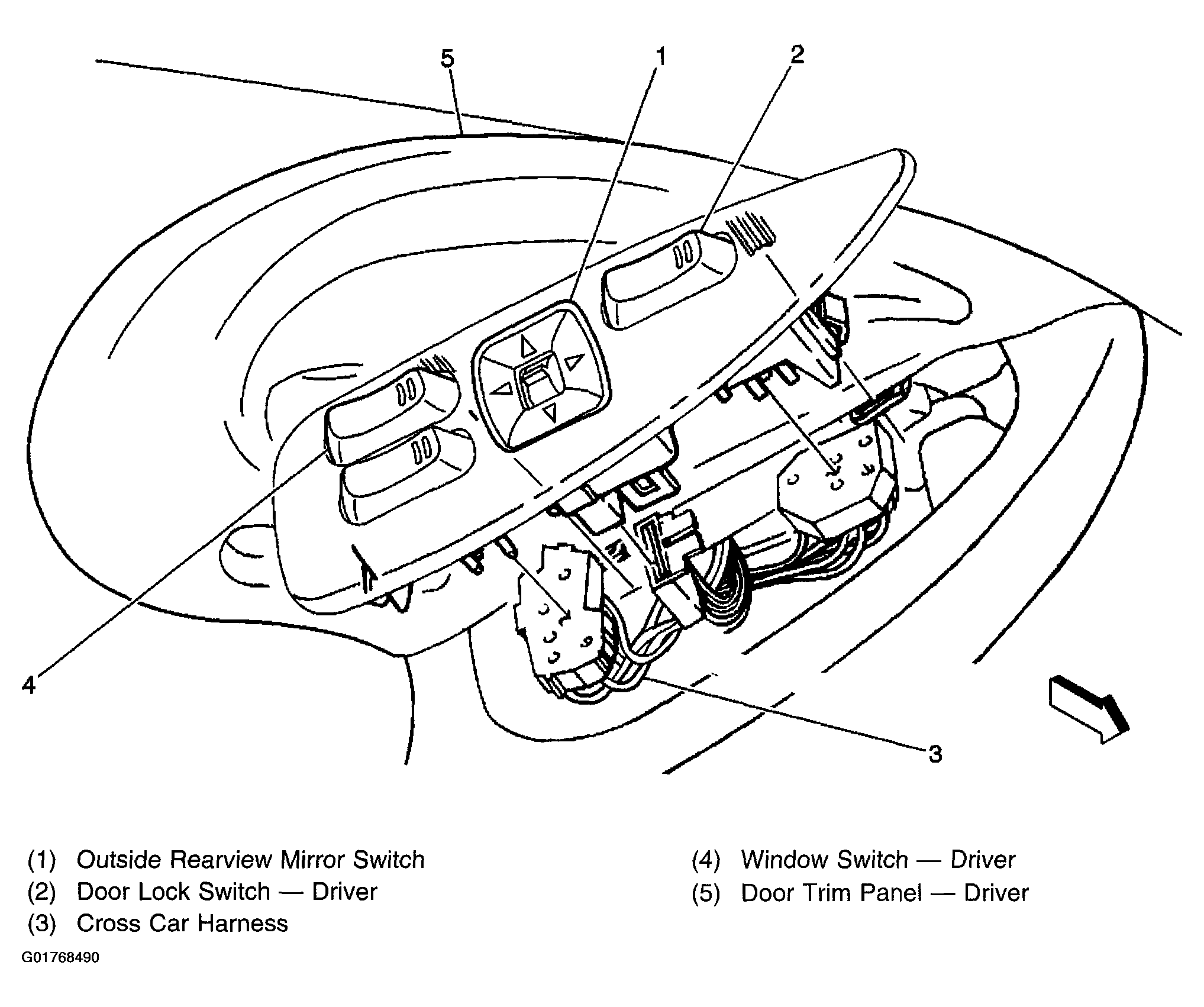

Fig 3: Drivers Door Armrest - Pontiac
G01768490Courtesy of GENERAL MOTORS CORP.

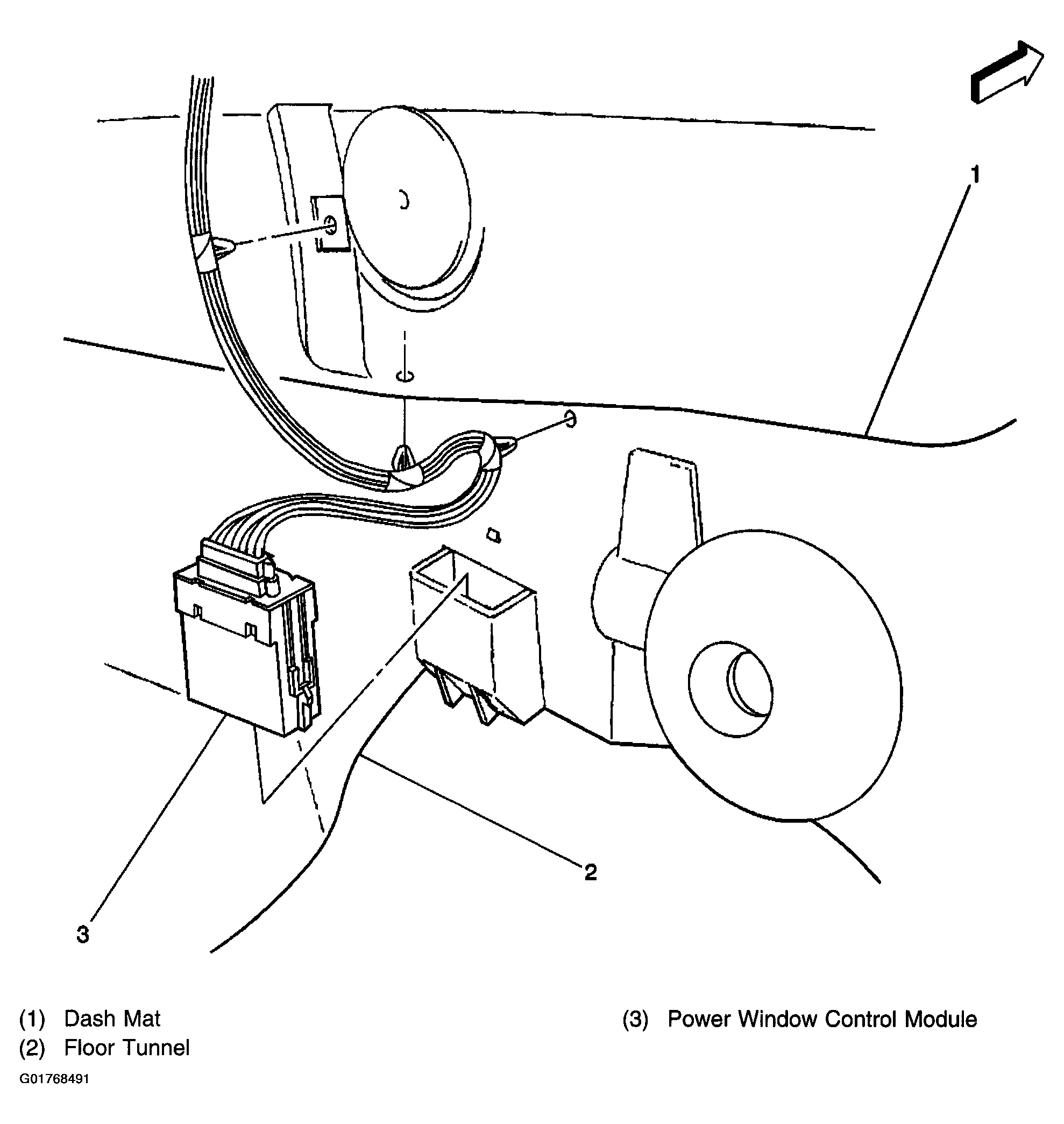

Fig 4: Center of Dash Mat Above Floor Tunnel
G01768491Courtesy of GENERAL MOTORS CORP.
