Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 and Fig 2 .

COMPONENT LOCATIONS

Component	Location
Forward/Back, Front Height & Rear Height Motors	Below Driver's Seat (Part Of Actuator Assembly)
Instrument Panel Fuse Block	Behind Left Side Of Instrument Panel
Power Seat Cushion Air Control Module	Below Passenger's Seat

Fig 1: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

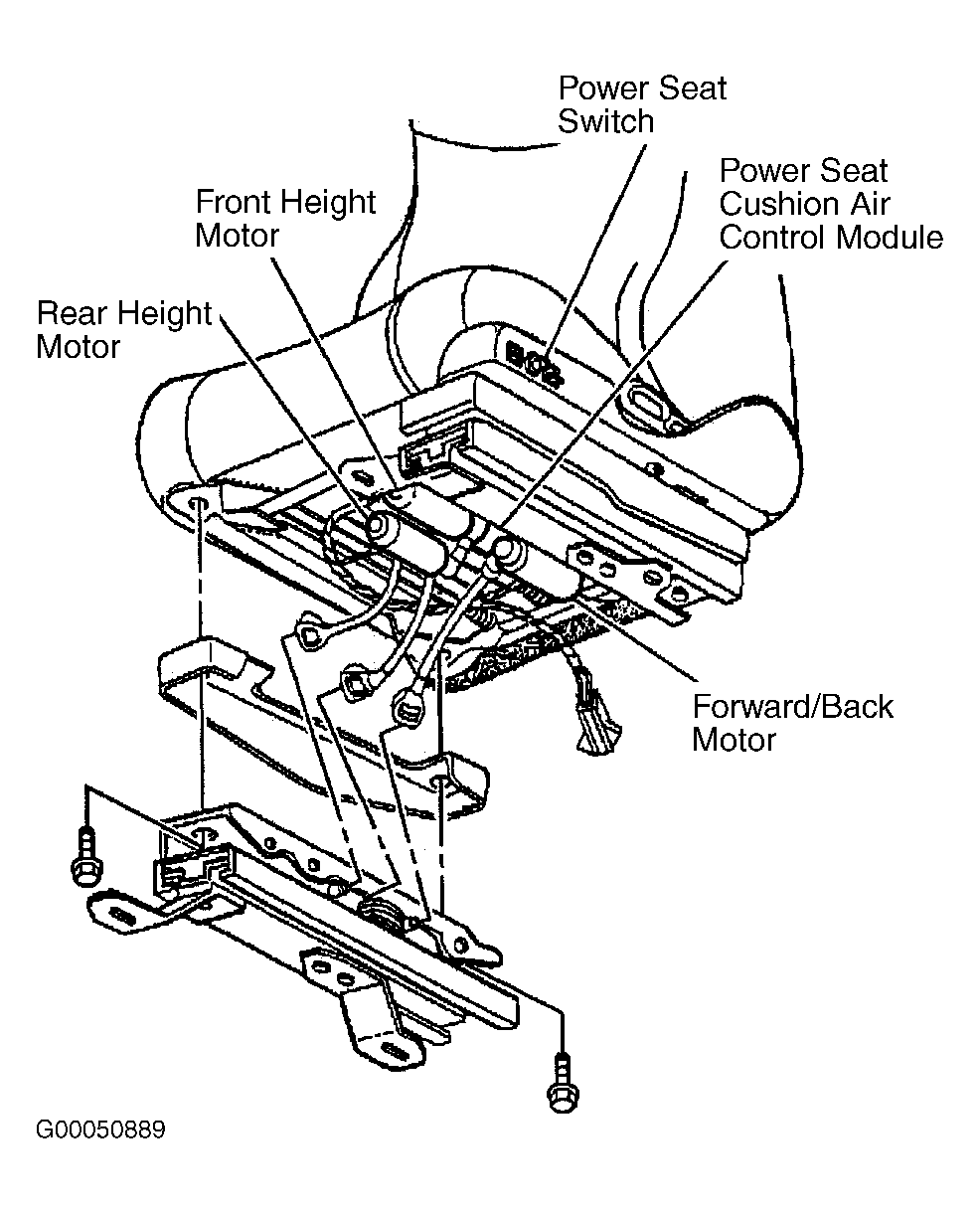

Fig 2: Locating Power Seat Cushion Air Control Module

Courtesy of GENERAL MOTORS CORP.
