ABS Component Views

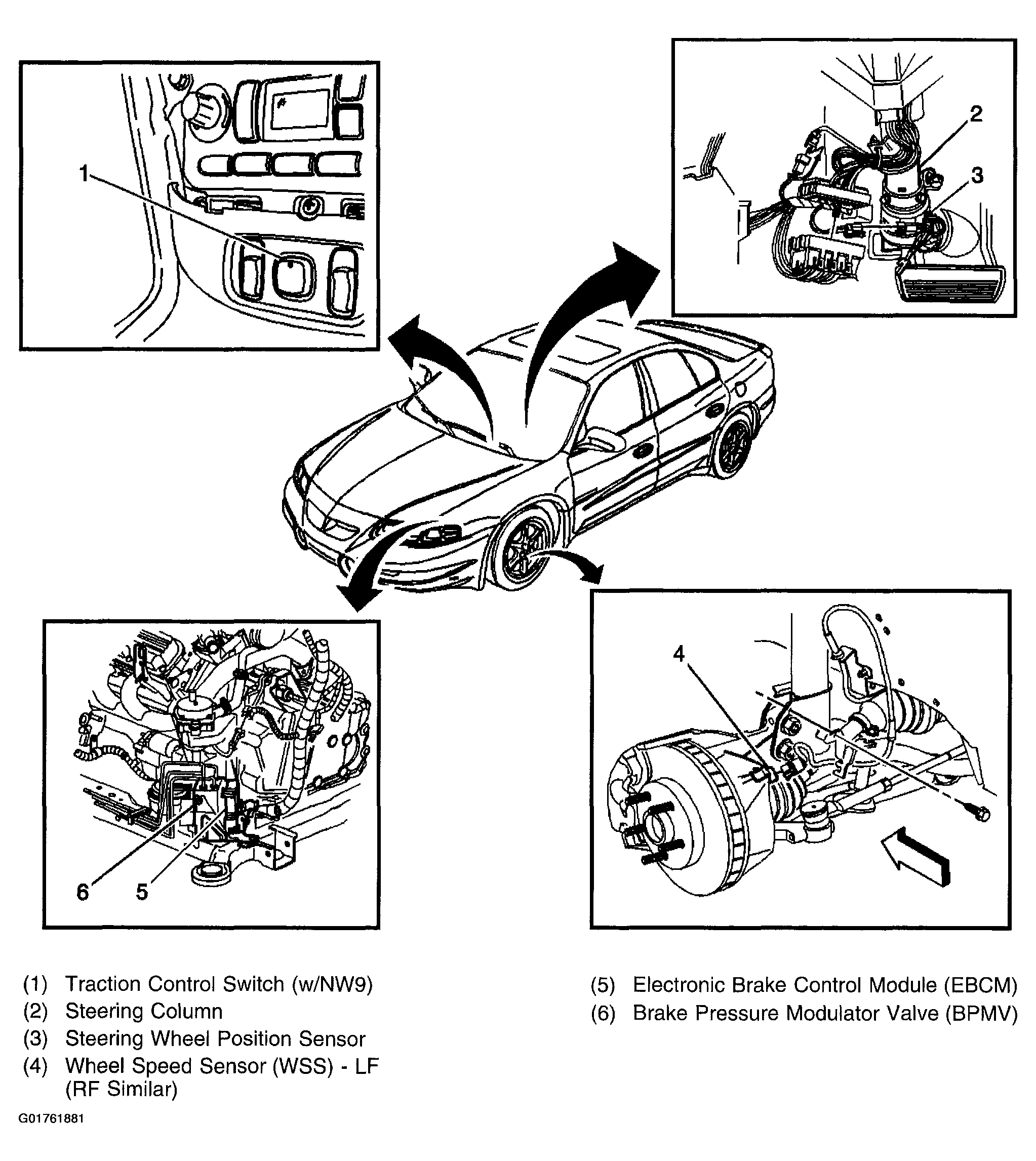

Fig 1: Antilock Brake - Front Component Views
Courtesy of GENERAL MOTORS CORP.

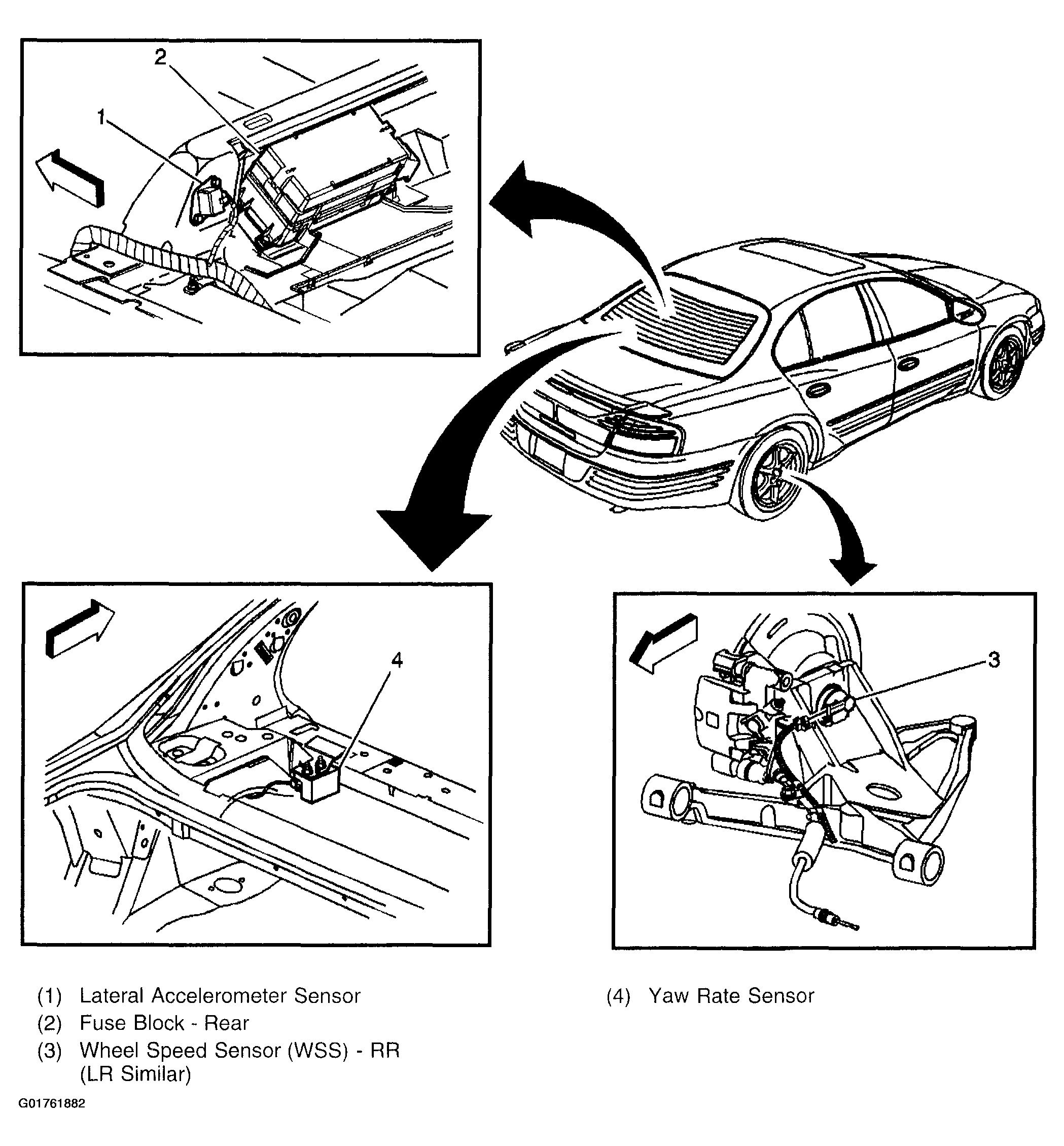

Fig 2: Antilock Brake - Rear Component Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
