Installation Procedure

  1. Install the wheel bearing/hub.
    NOTE: Refer to FASTENER NOTICE .
  2. Install NEW wheel bearing/hub bolts.

    Tighten

    Tighten the new wheel bearing/hub bolts to 130 N.m (96 lb ft).

  3. Install the brake rotor. Refer to BRAKE ROTOR .
  4. Install the wheel drive shaft nut. Refer to AXLE SHAFT .

    Important:  Ensure that the connector clip engages the bracket properly.

  5. Install the wheel speed sensor electrical connector to the bracket.

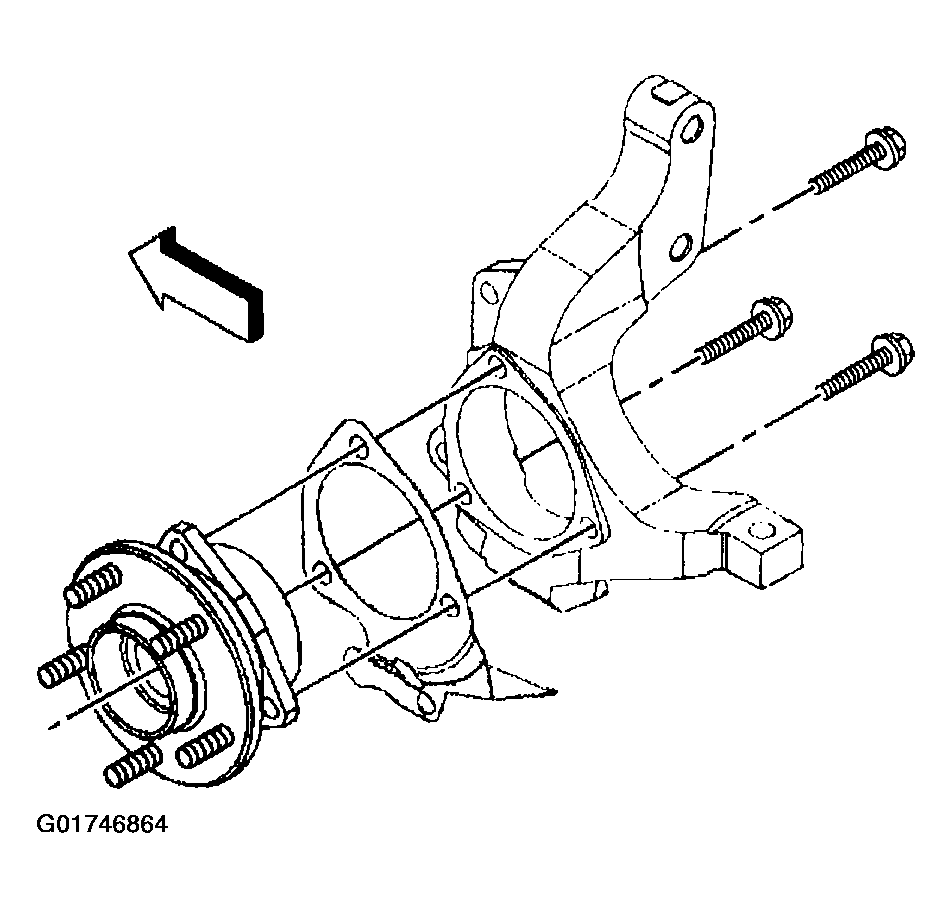

    Fig 1: Installing Wheel Bearing/Hub & Bolts
    G01746864Courtesy of GENERAL MOTORS CORP.
  6. Connect the wheel speed sensor electrical connector.
  7. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  8. Lower the vehicle.

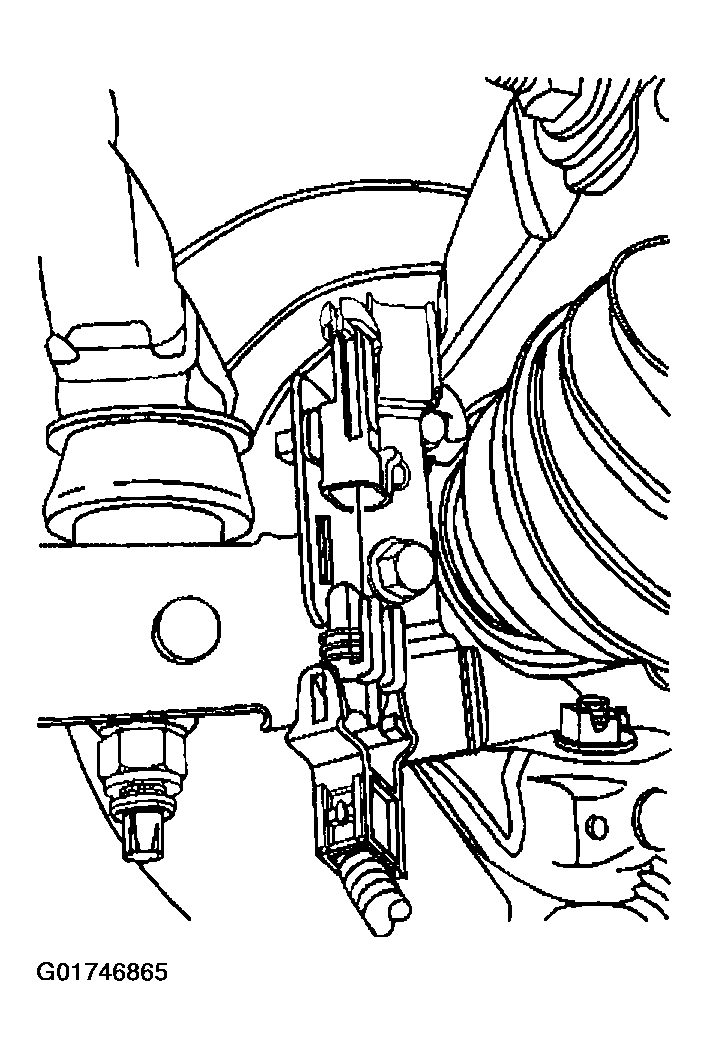

    Fig 2: Installing Wheel Speed Sensor Electrical Connector
    G01746865Courtesy of GENERAL MOTORS CORP.
