Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the stabilizer shaft link bolt and nut.
  3. Use a pry bar in order remove the stabilizer shaft link insulators and the spacer.

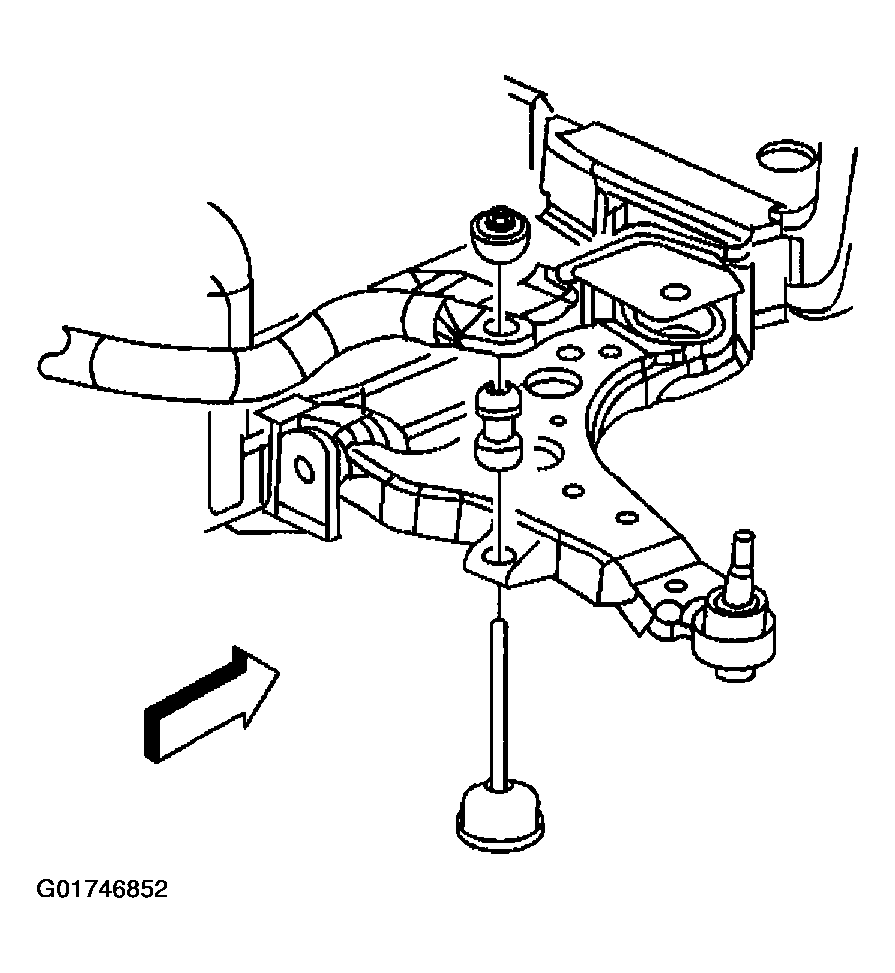

    Fig 1: Removing Stabilizer Shaft Link Bolt & Nut
    G01746852Courtesy of GENERAL MOTORS CORP.
