Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Move (turn) the tires in order to access the stabilizer shaft insulator brackets.
  3. Remove the side stabilizer shaft insulator bracket bolts.
  4. Remove the stabilizer shaft insulator brackets.
  5. Use a pry bar in order to remove the stabilizer shaft insulators (4).

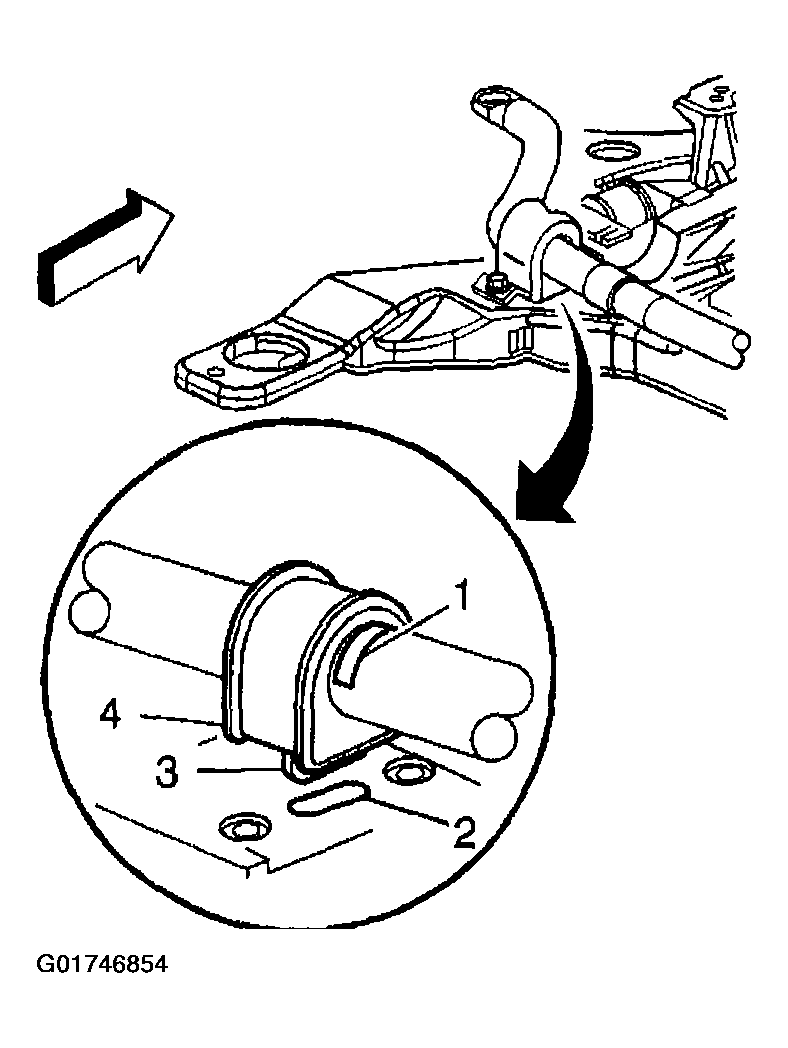

    Fig 1: Removing Stabilizer Shaft Insulators
    G01746854Courtesy of GENERAL MOTORS CORP.
