Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

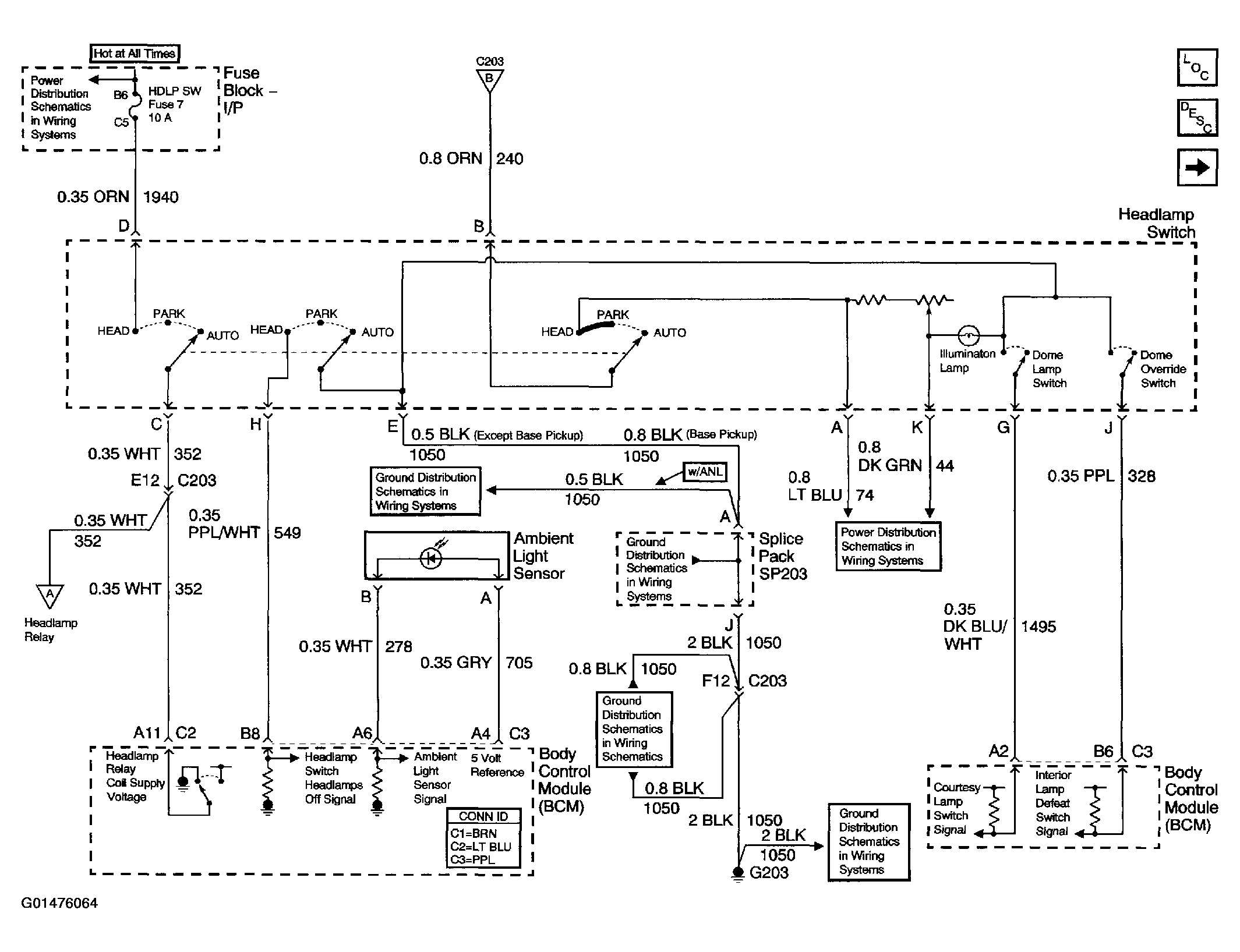

Fig 1: Headlights/Daytime Running Lights (DRL) Schematics (Headlamp Switch, Ambient Light Sensor & BCM)

Courtesy of GENERAL MOTORS CORP.

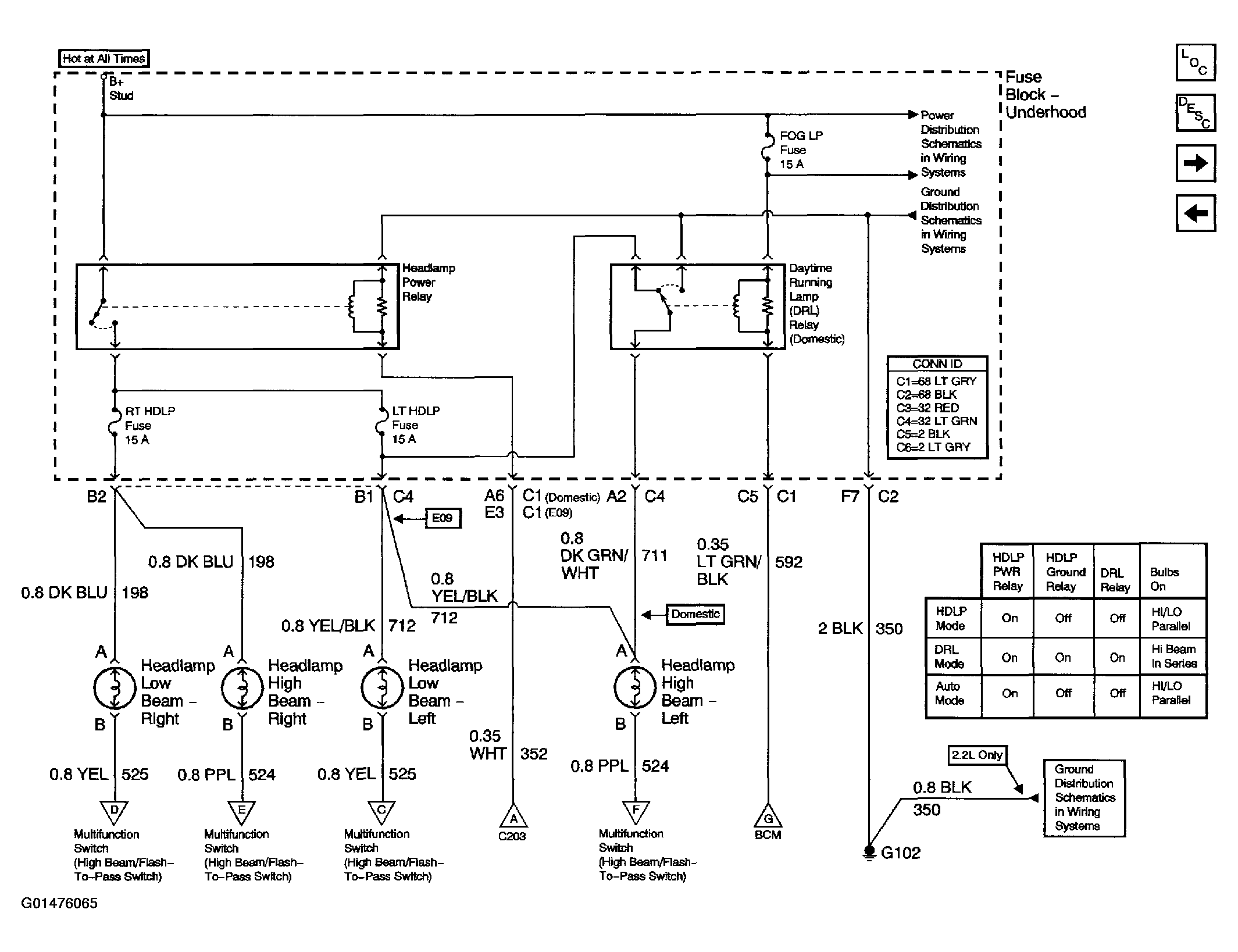

Fig 2: Headlights/Daytime Running Lights (DRL) Schematics (DRL & Headlamp Power Relays)

Courtesy of GENERAL MOTORS CORP.

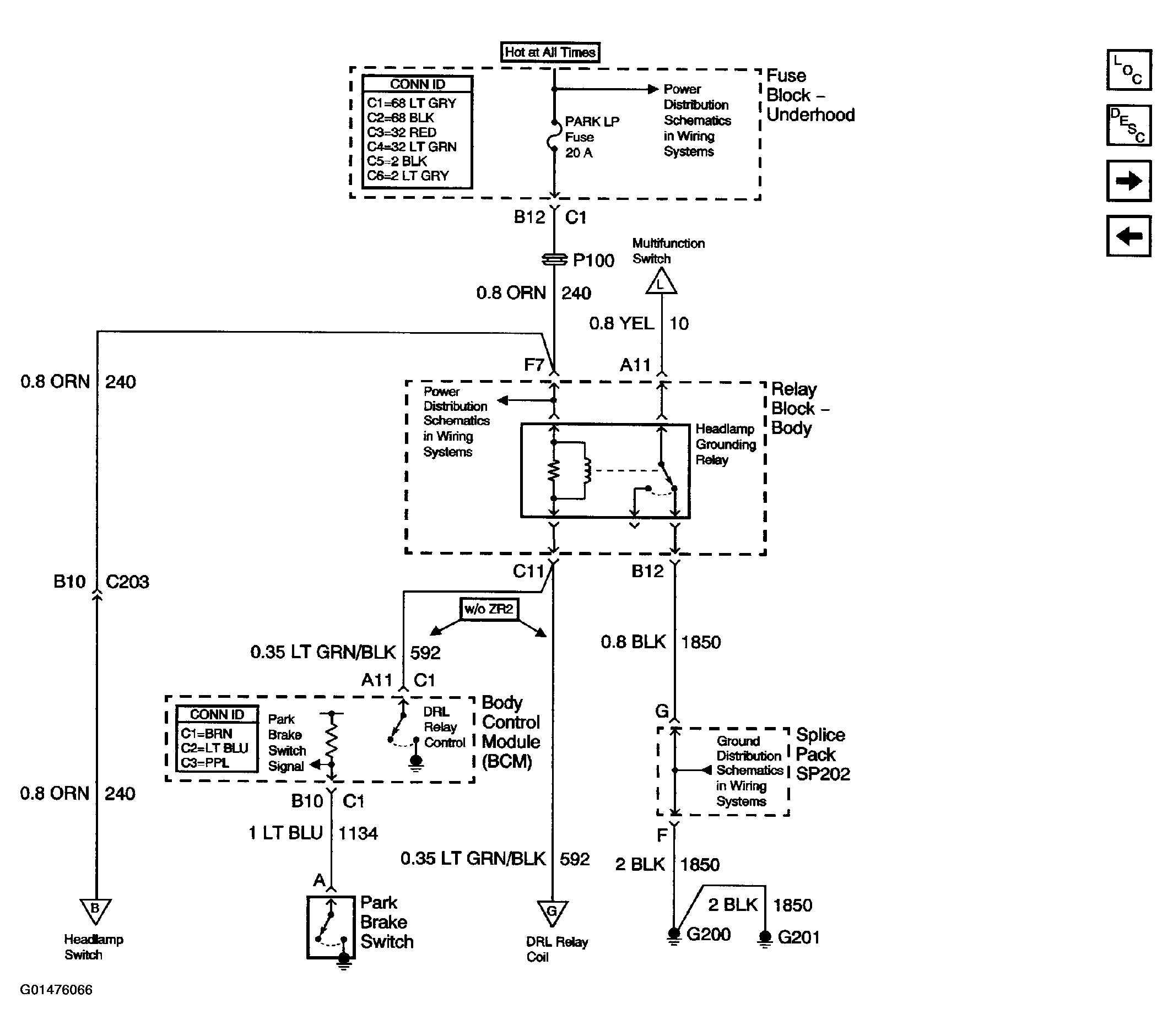

Fig 3: Headlights/Daytime Running Lights (DRL) Schematics (Headlamp Grounding Relay & BCM)

Courtesy of GENERAL MOTORS CORP.

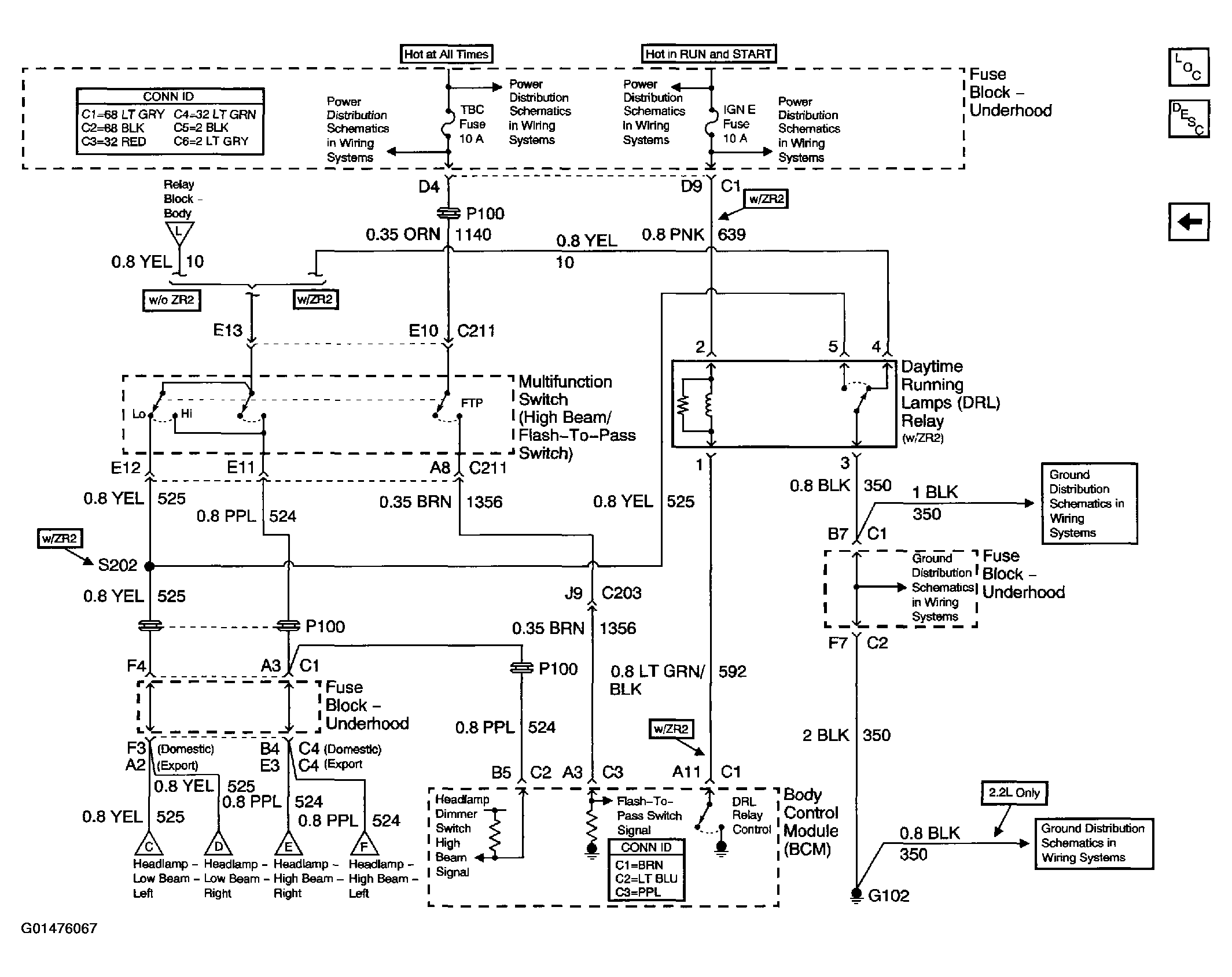

Fig 4: Headlights/Daytime Running Lights (DRL) Schematics (Flash-To-Pass Switch, DRL Relay (ZR2) & BCM)

Courtesy of GENERAL MOTORS CORP.

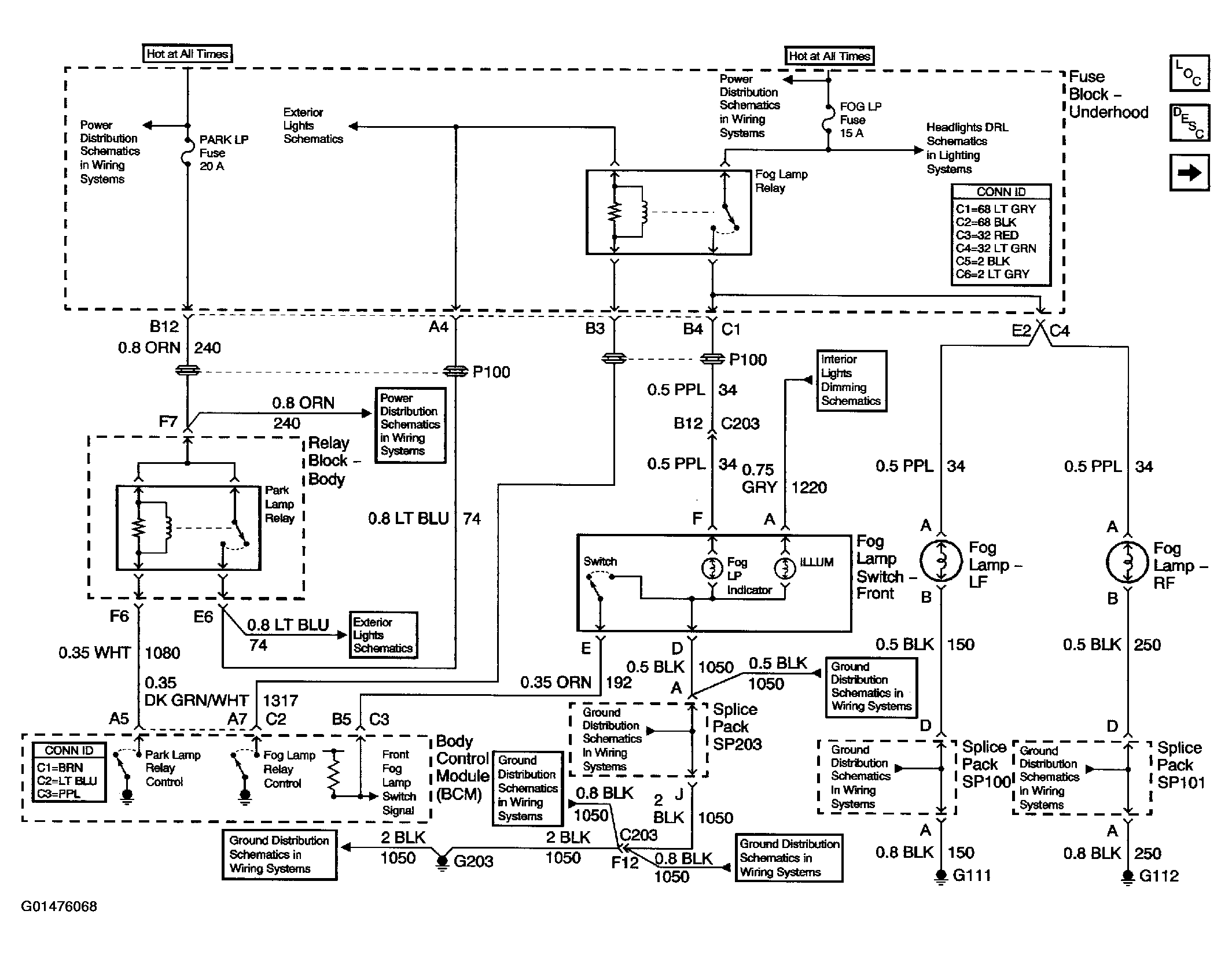

Fig 5: Fog Lights Schematics (Front)

Courtesy of GENERAL MOTORS CORP.

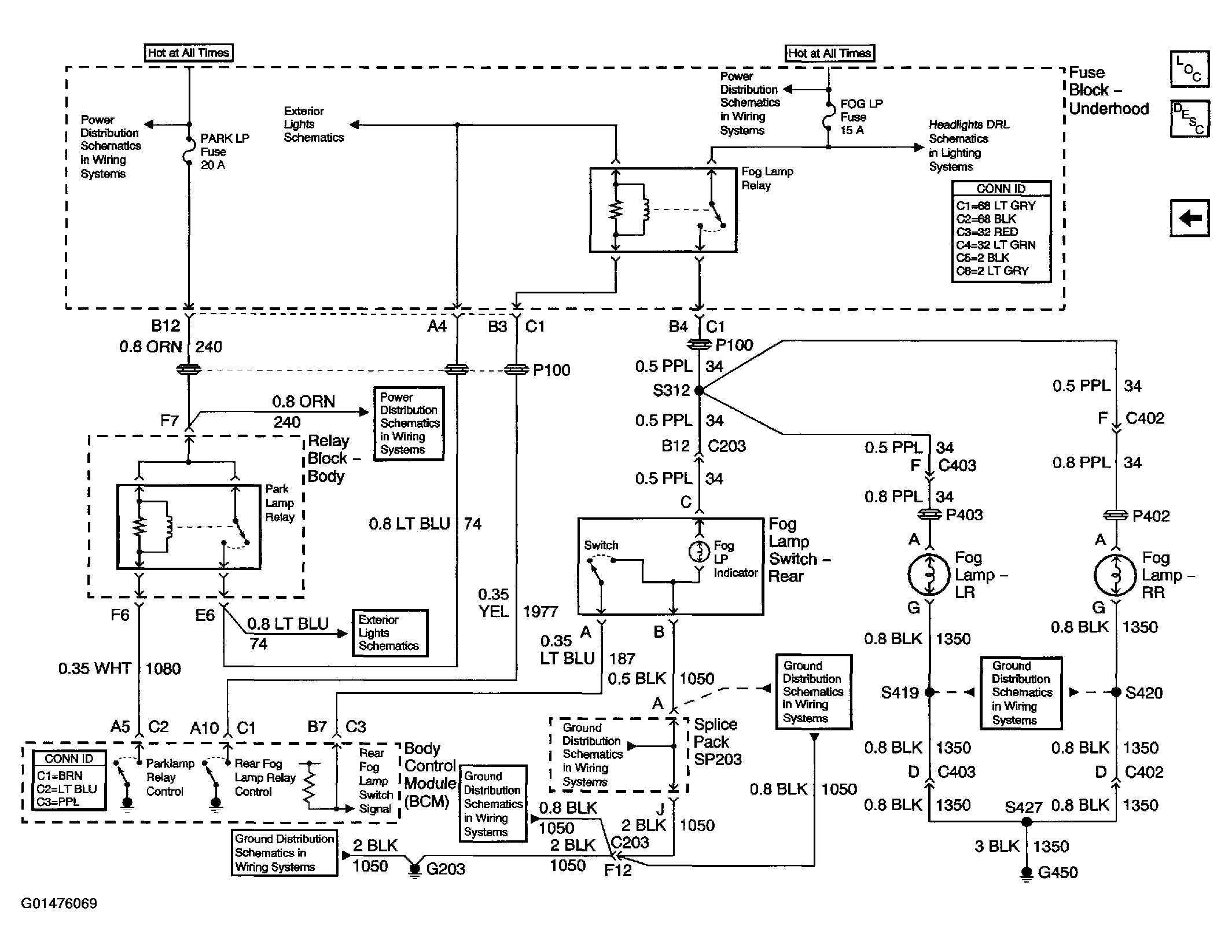

Fig 6: Fog Lights Schematics (Rear Export)

Courtesy of GENERAL MOTORS CORP.

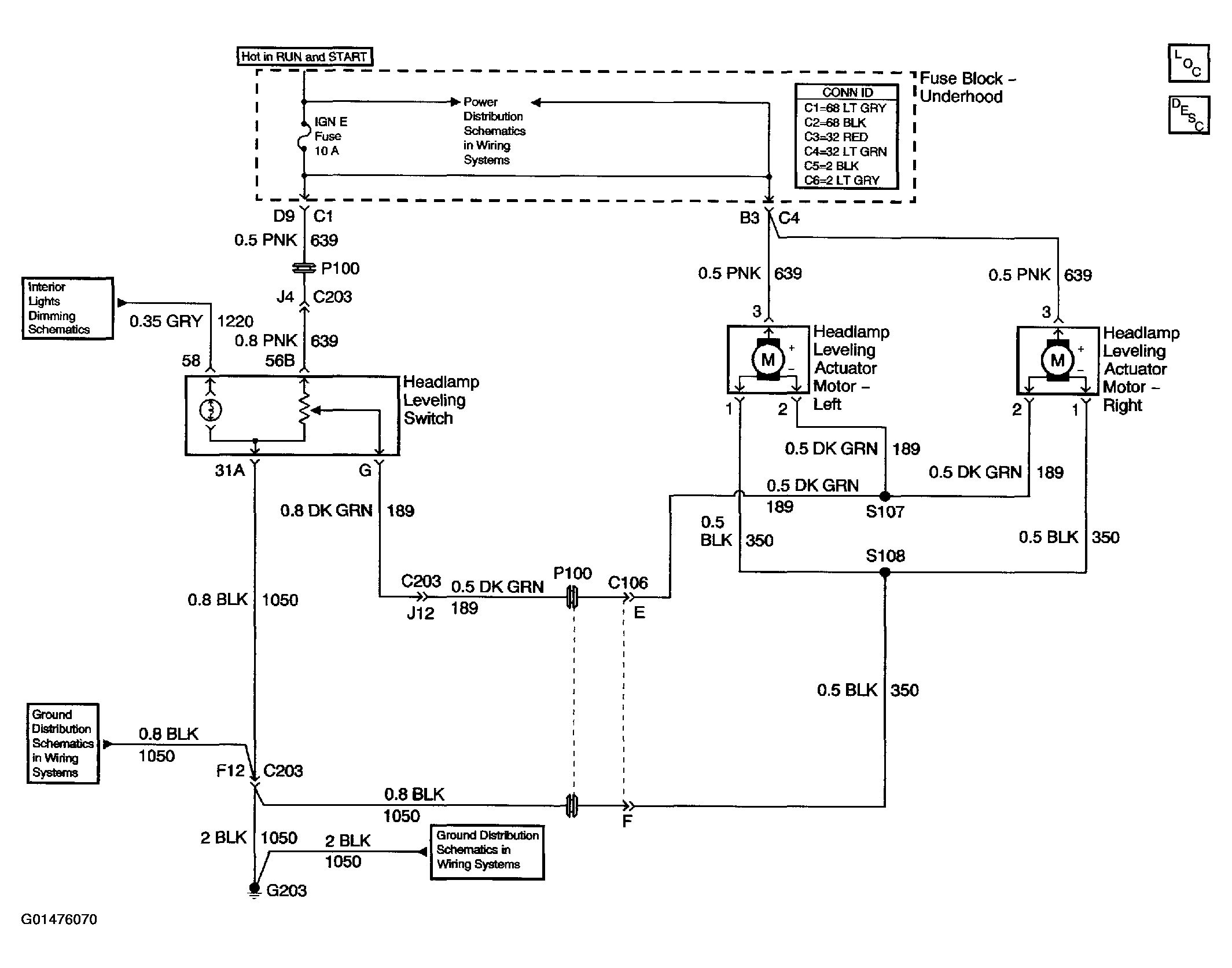

Fig 7: Headlight Leveling Schematics

Courtesy of GENERAL MOTORS CORP.

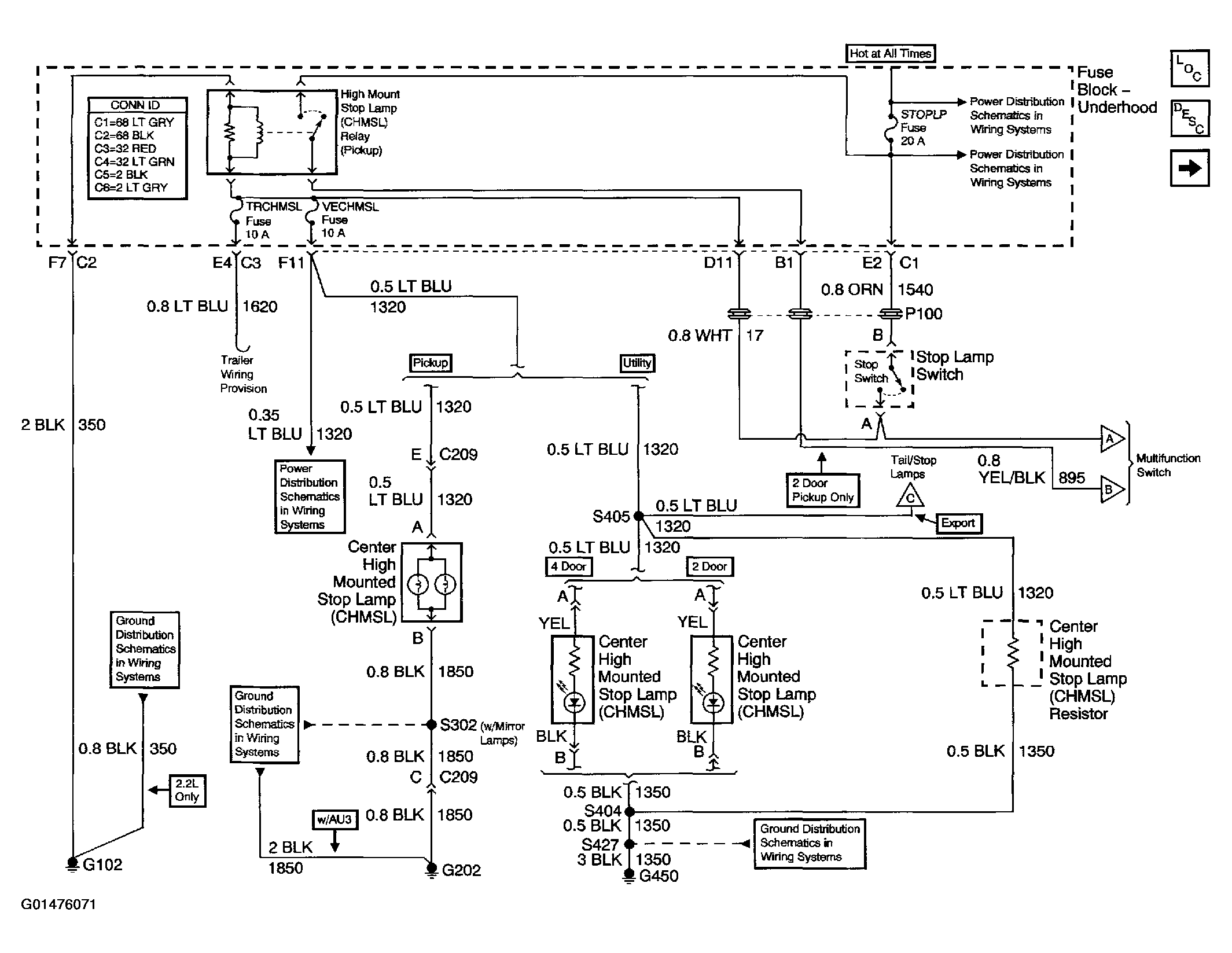

Fig 8: Exterior Lights Schematics (Center High Mounted Stop Lamp)

Courtesy of GENERAL MOTORS CORP.

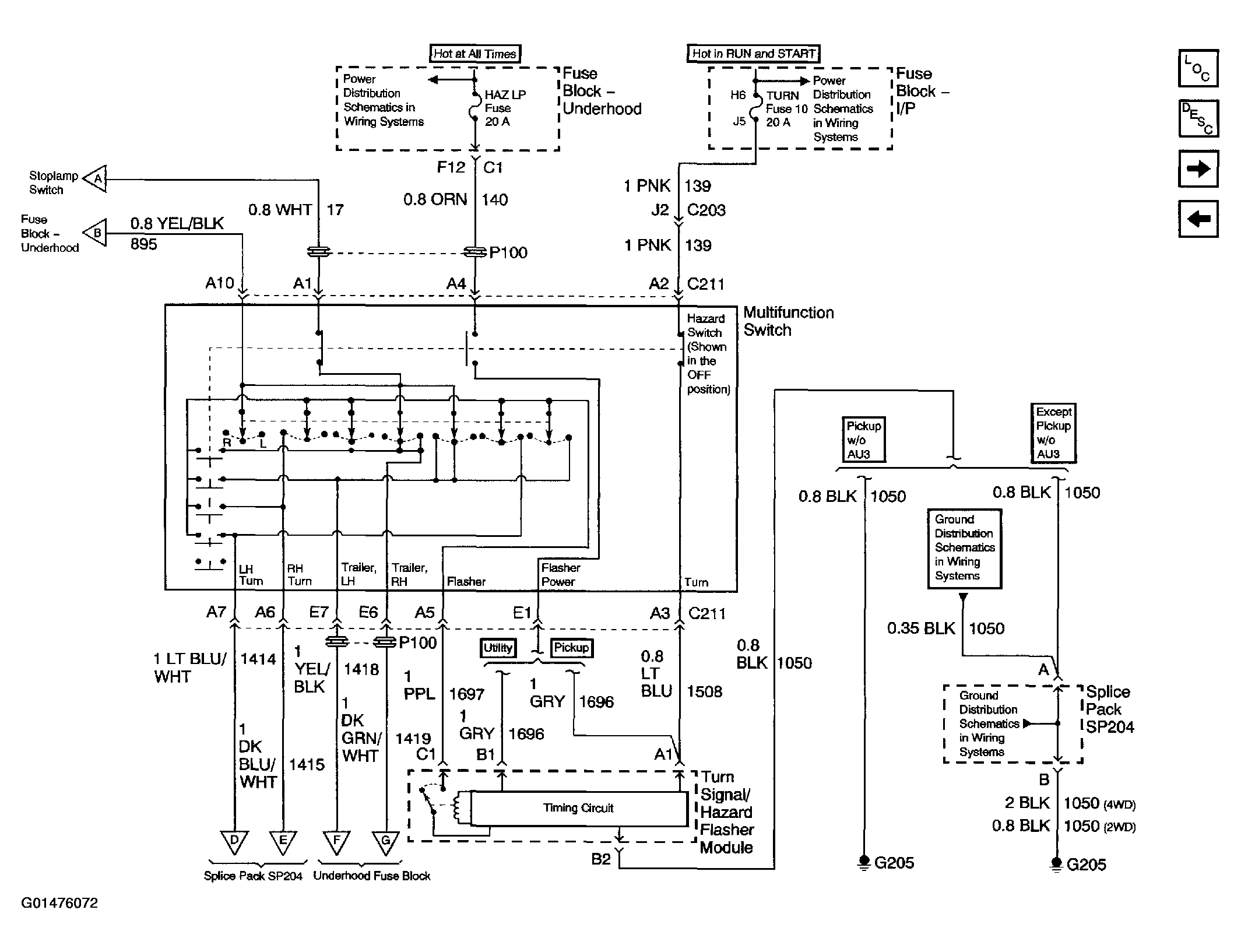

Fig 9: Exterior Lights Schematics (Multifunction Switch & Turn Signal Lamp Flasher)

Courtesy of GENERAL MOTORS CORP.

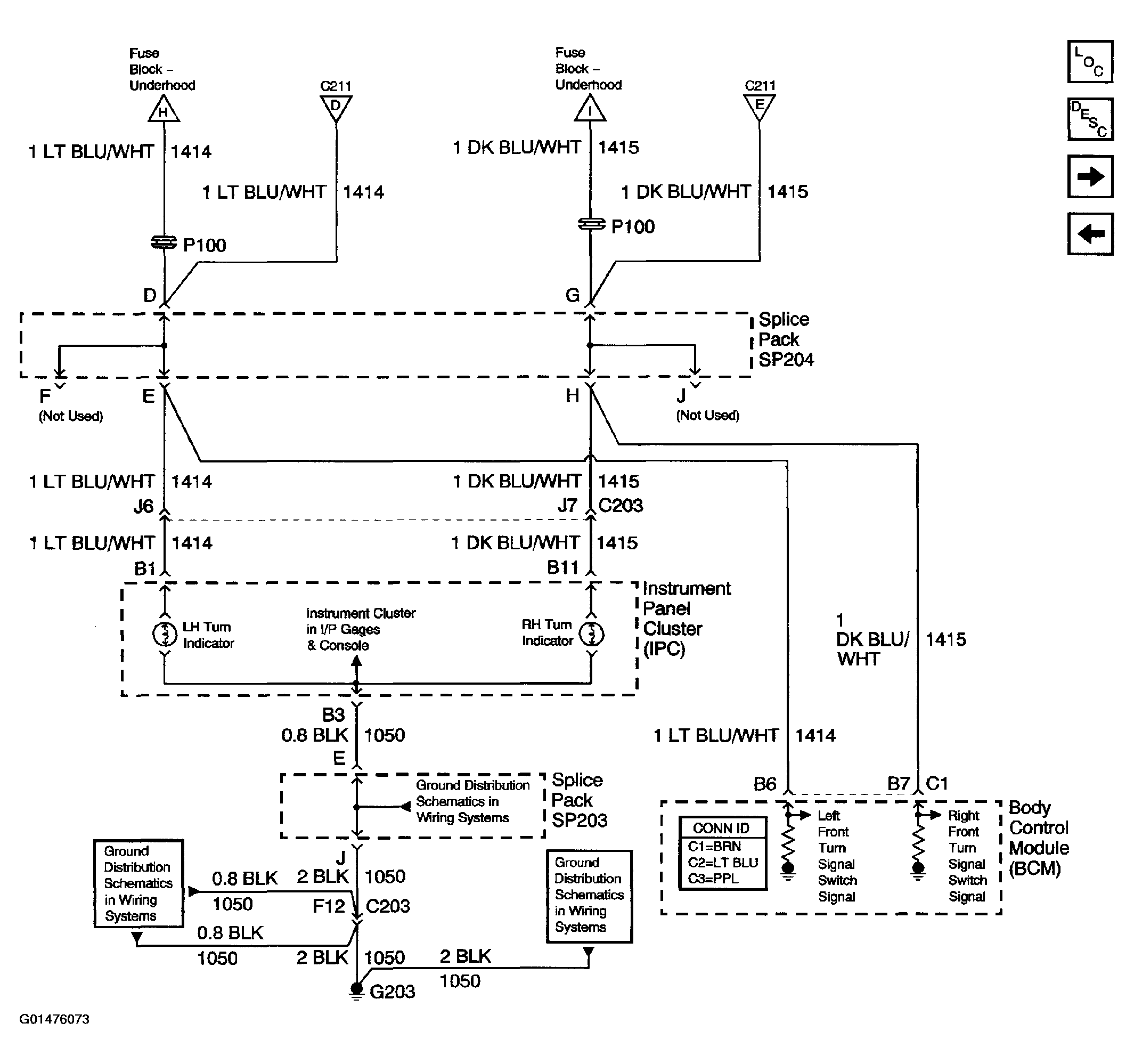

Fig 10: Exterior Lights Schematics (Instrument Cluster Turn Signal Indicators)

Courtesy of GENERAL MOTORS CORP.

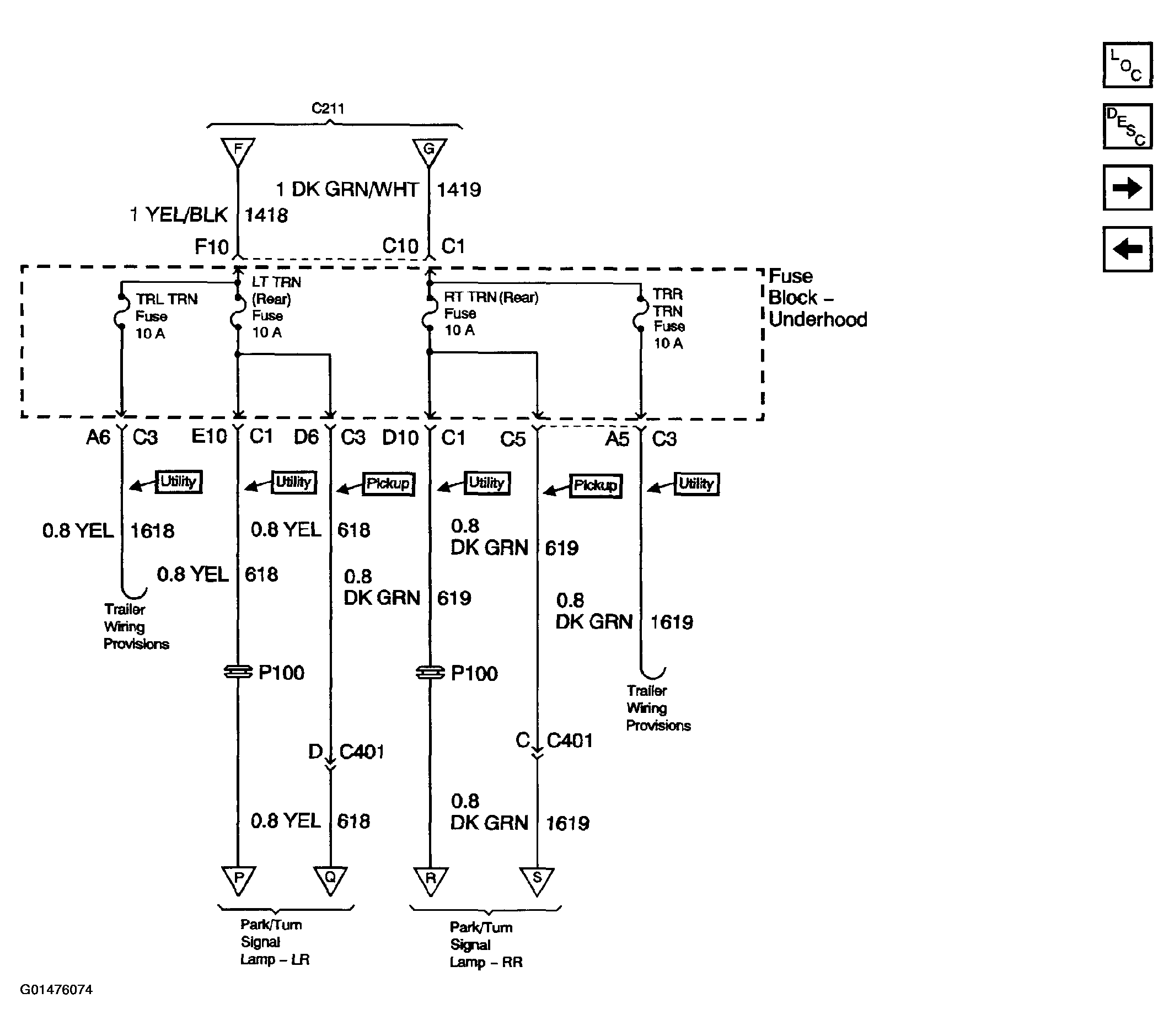

Fig 11: Exterior Lights Schematics (Turn Signal Fuses)

Courtesy of GENERAL MOTORS CORP.

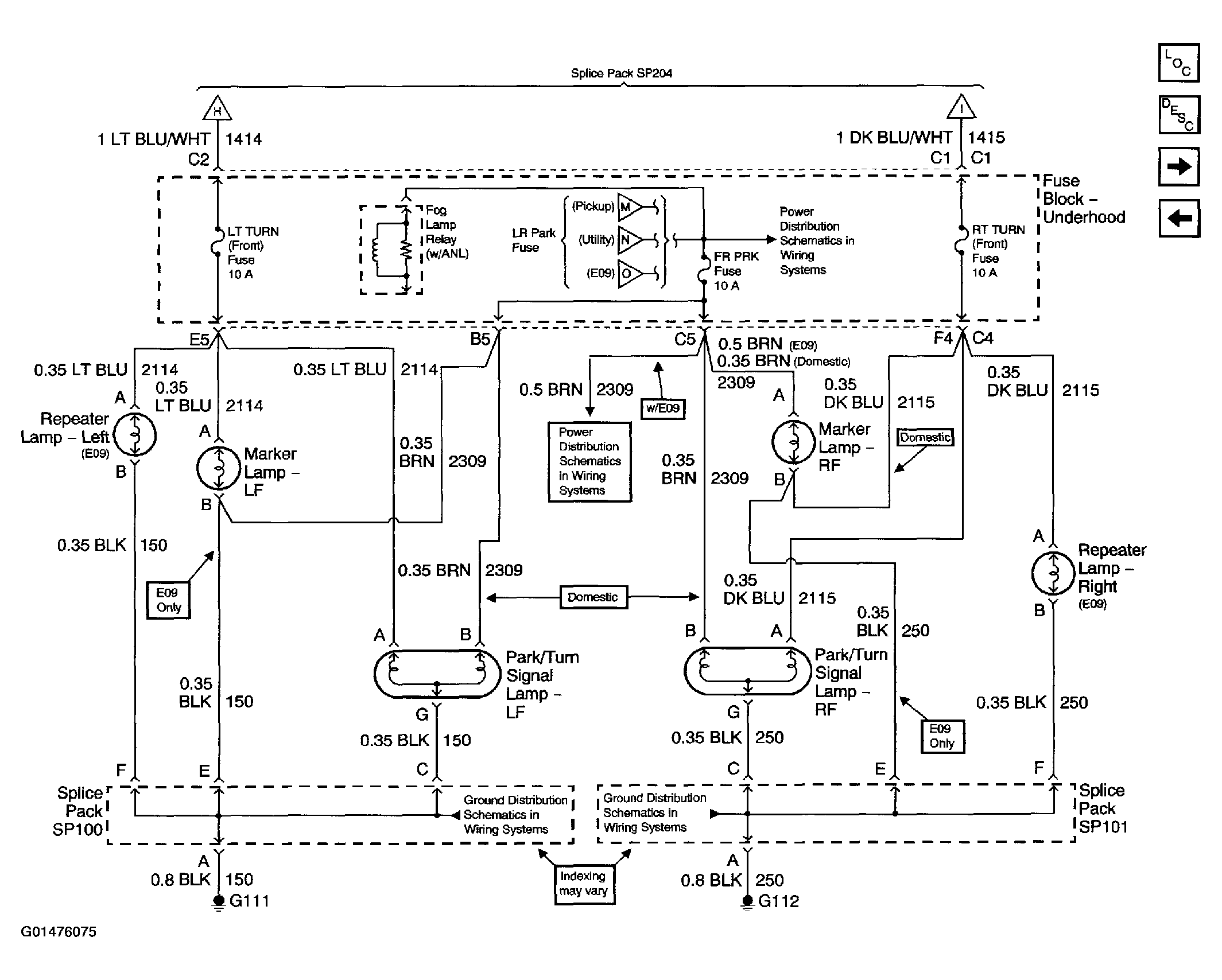

Fig 12: Exterior Lights Schematics (Park/Turn Signal Lamps, Market Lamps & Turn Signal Fuses, Front)

Courtesy of GENERAL MOTORS CORP.

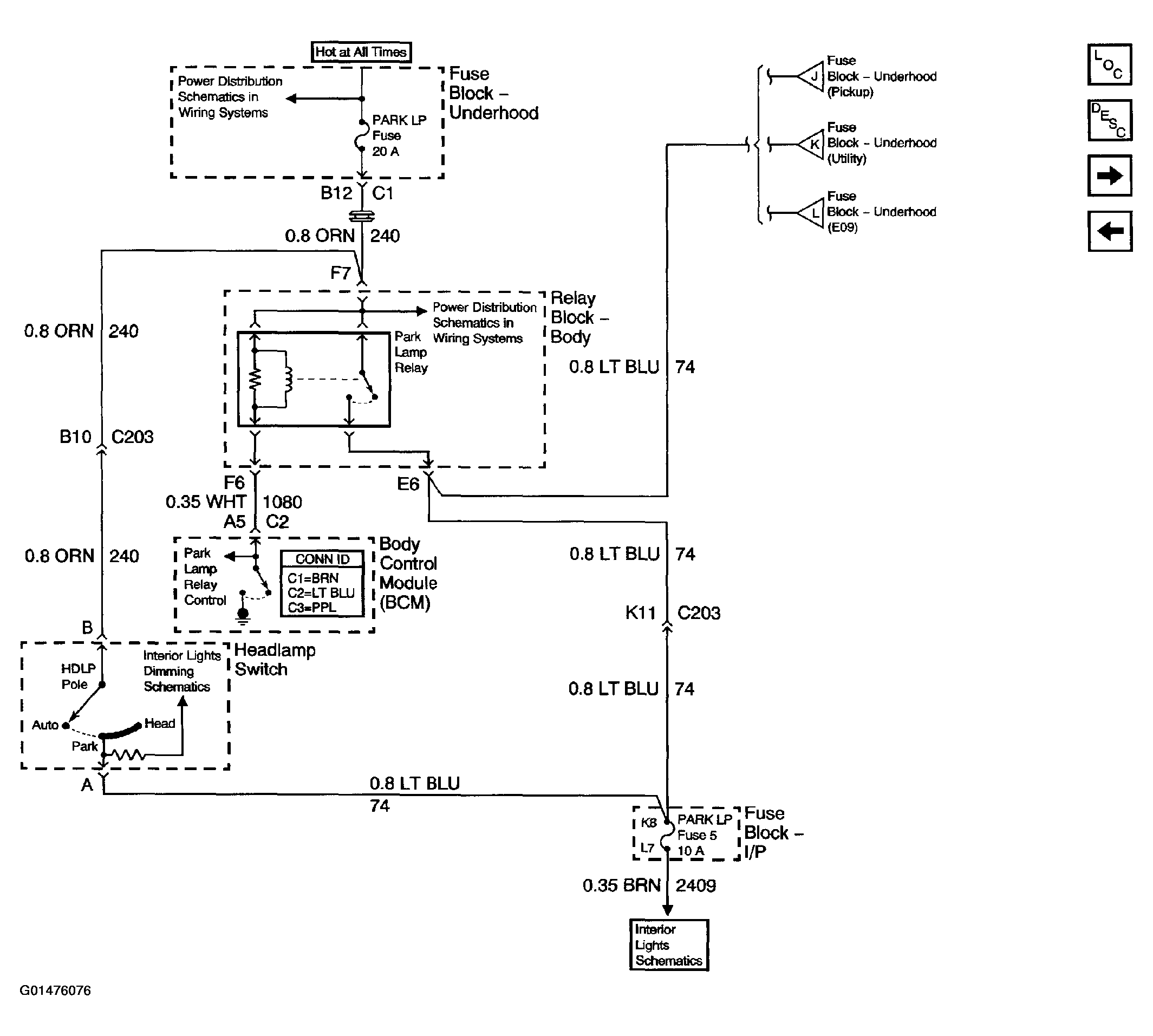

Fig 13: Exterior Lights Schematics (Park Lamp Control)

Courtesy of GENERAL MOTORS CORP.

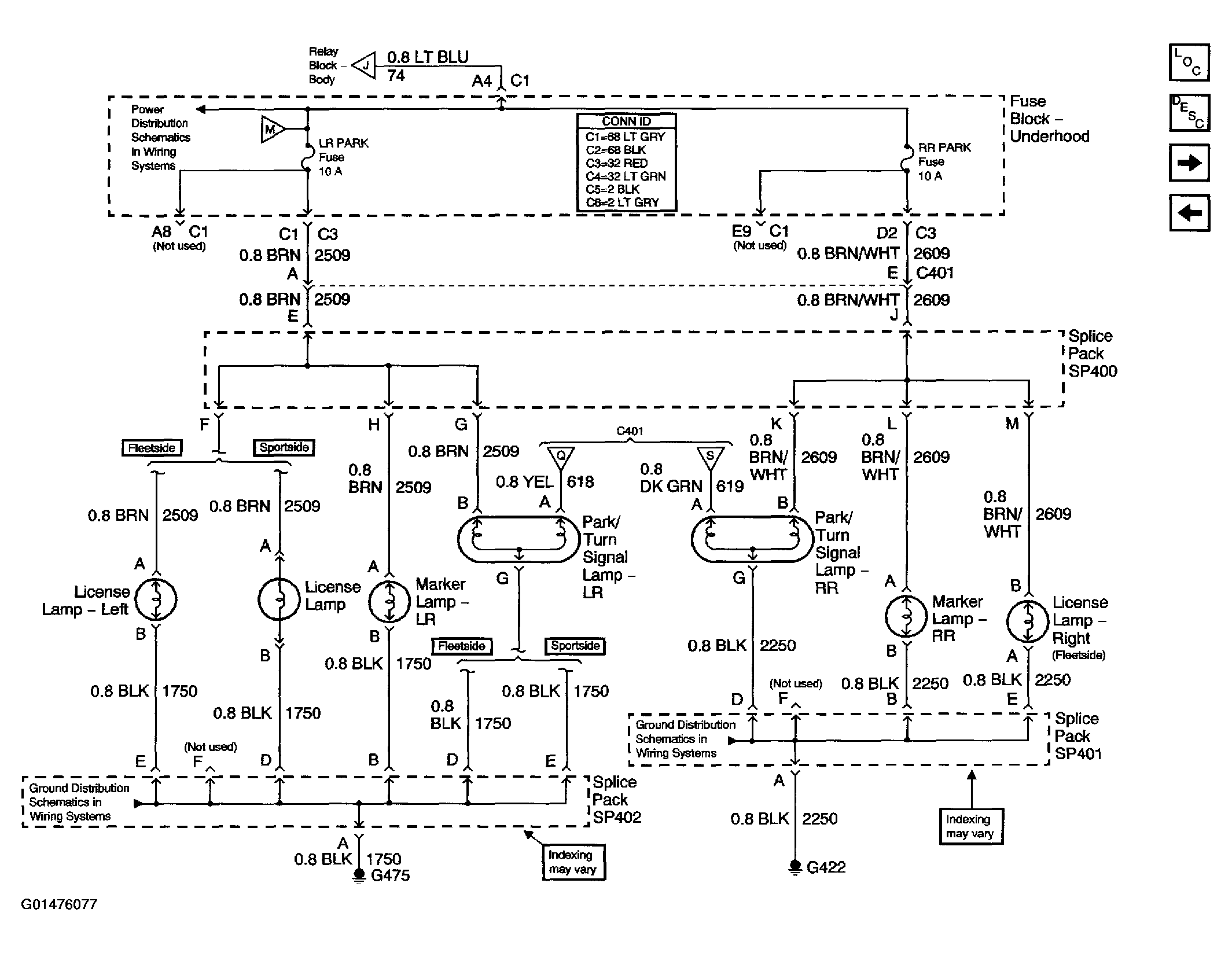

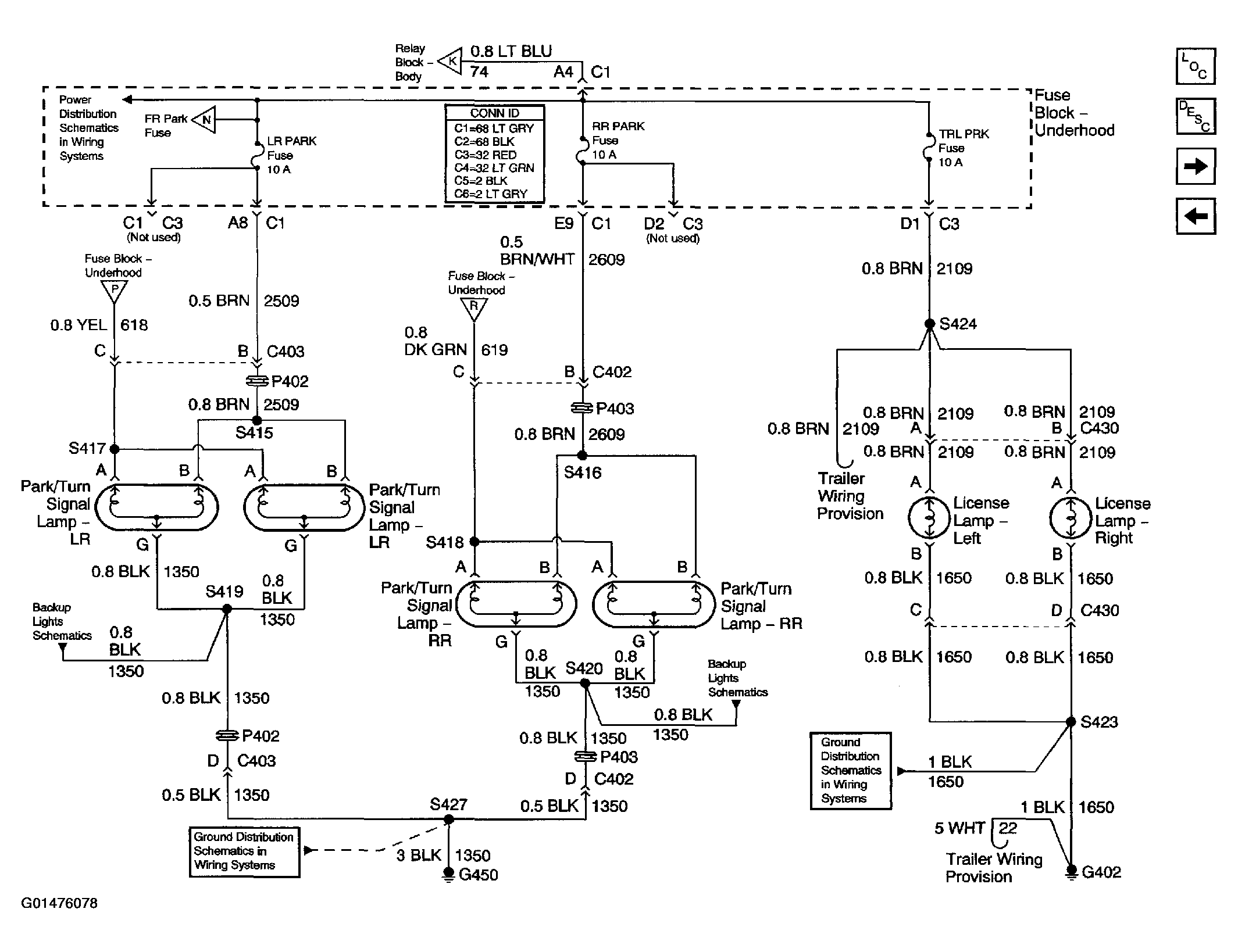

Fig 14: Exterior Lights Schematics (Park/Turn Signal Lamp, Marker & License Lamps, Rear - Pickup)

Courtesy of GENERAL MOTORS CORP.

Fig 15: Exterior Lights Schematics (Park & License Lamps, Rear - Utility)

Courtesy of GENERAL MOTORS CORP.

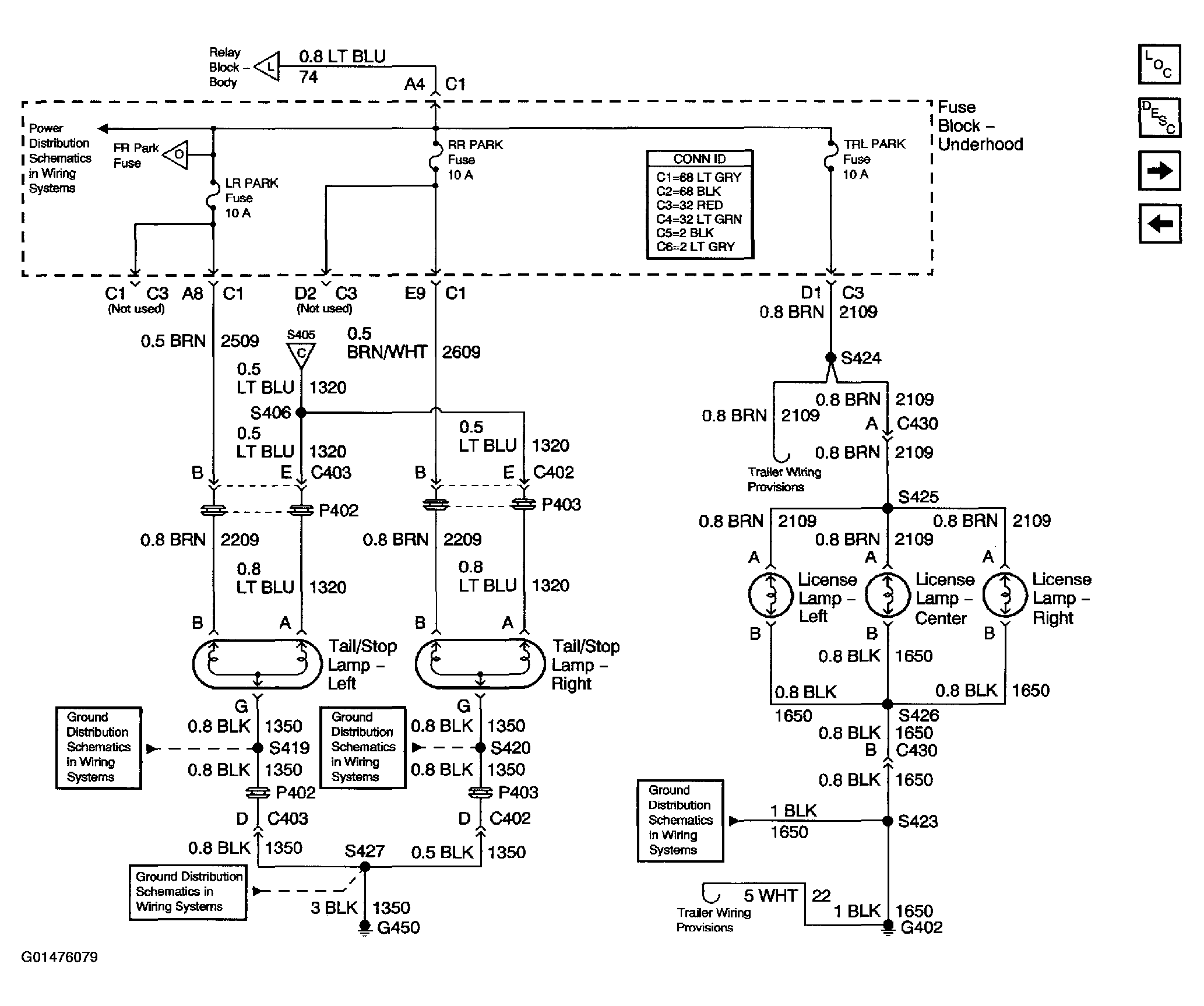

Fig 16: Exterior Lights Schematics (Tail, Stop & License Lamps - Export)

Courtesy of GENERAL MOTORS CORP.

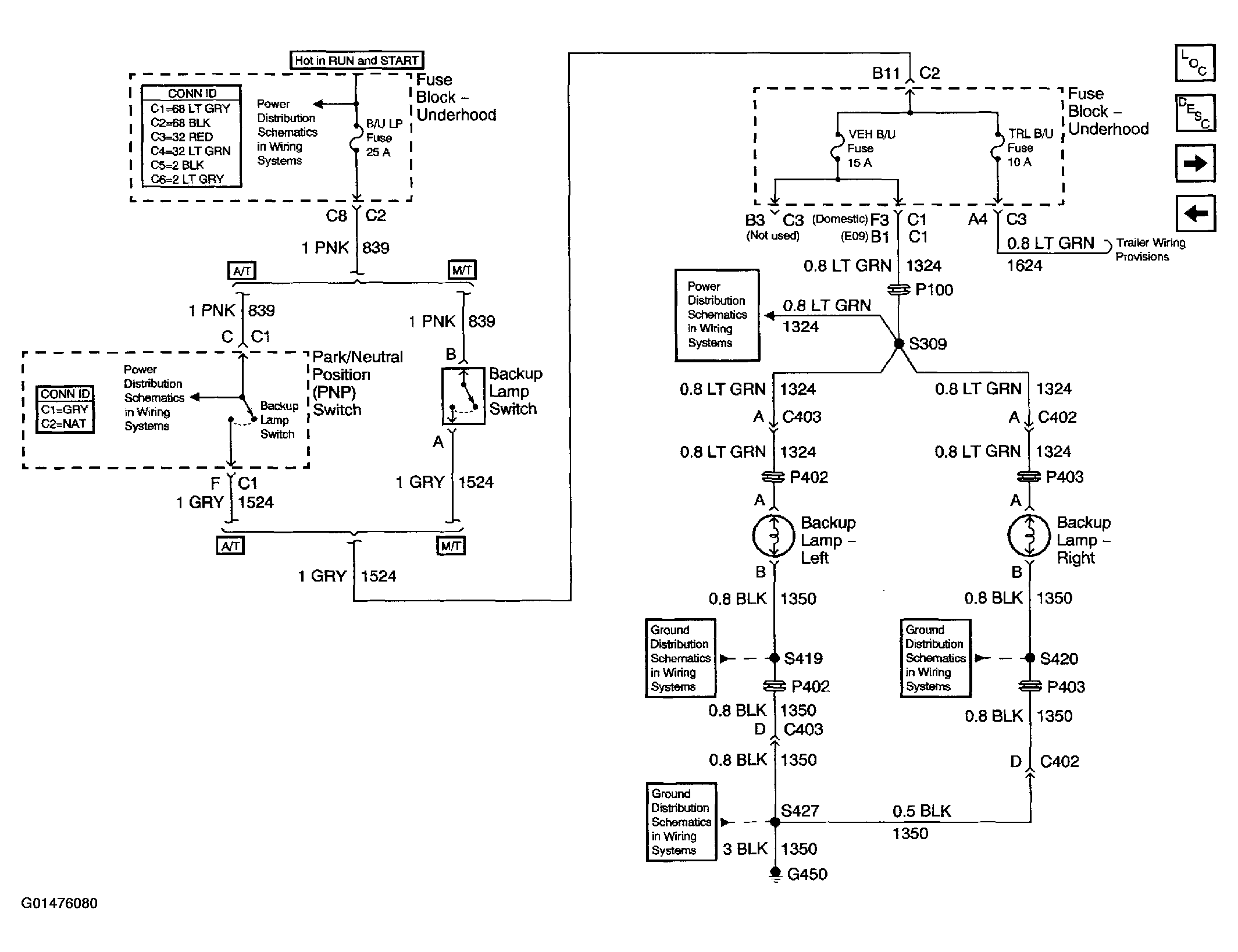

Fig 17: Exterior Lights Schematics (Backup Lamps - Utility)

Courtesy of GENERAL MOTORS CORP.

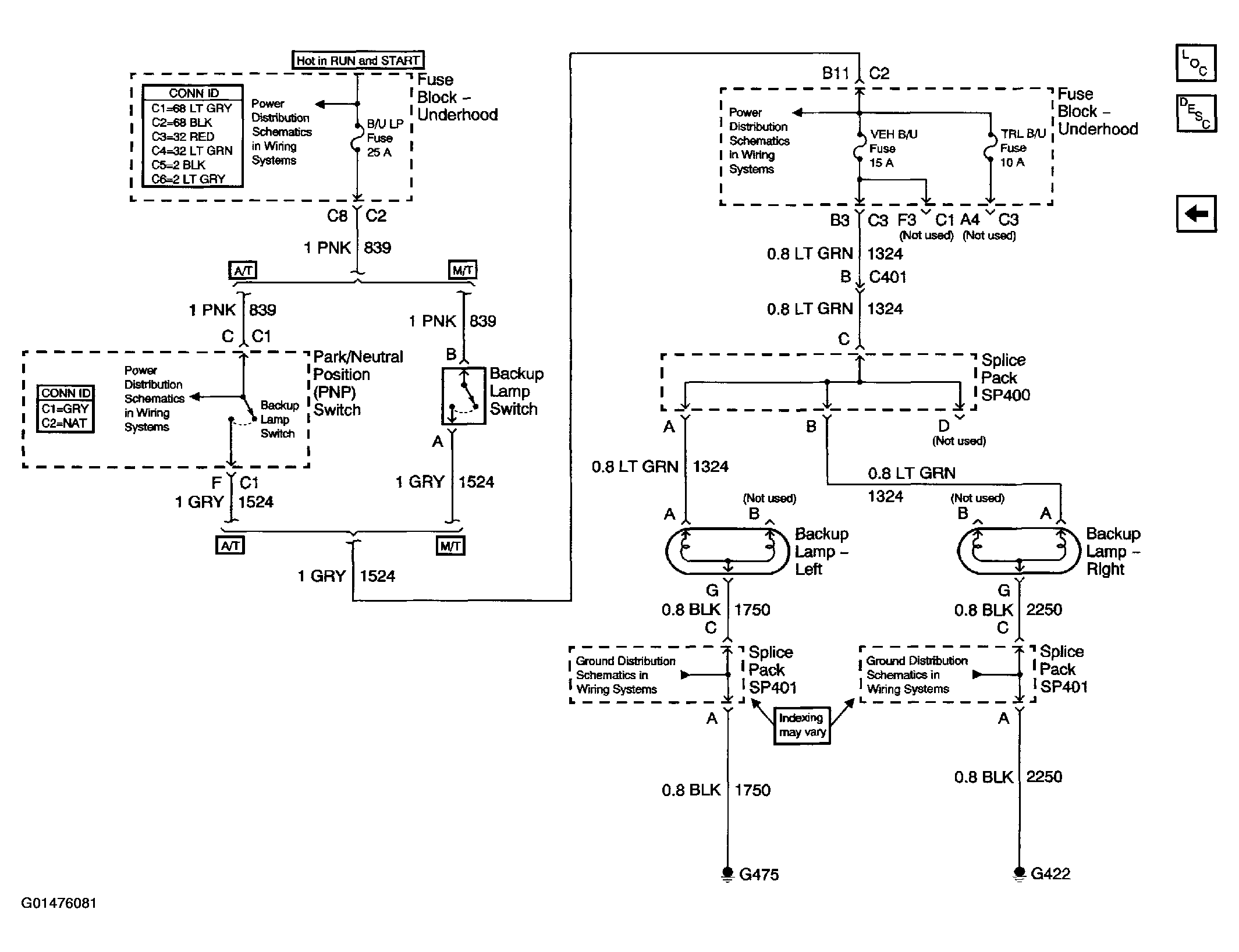

Fig 18: Exterior Lights Schematics (Backup Lamps - Pickup)

Courtesy of GENERAL MOTORS CORP.

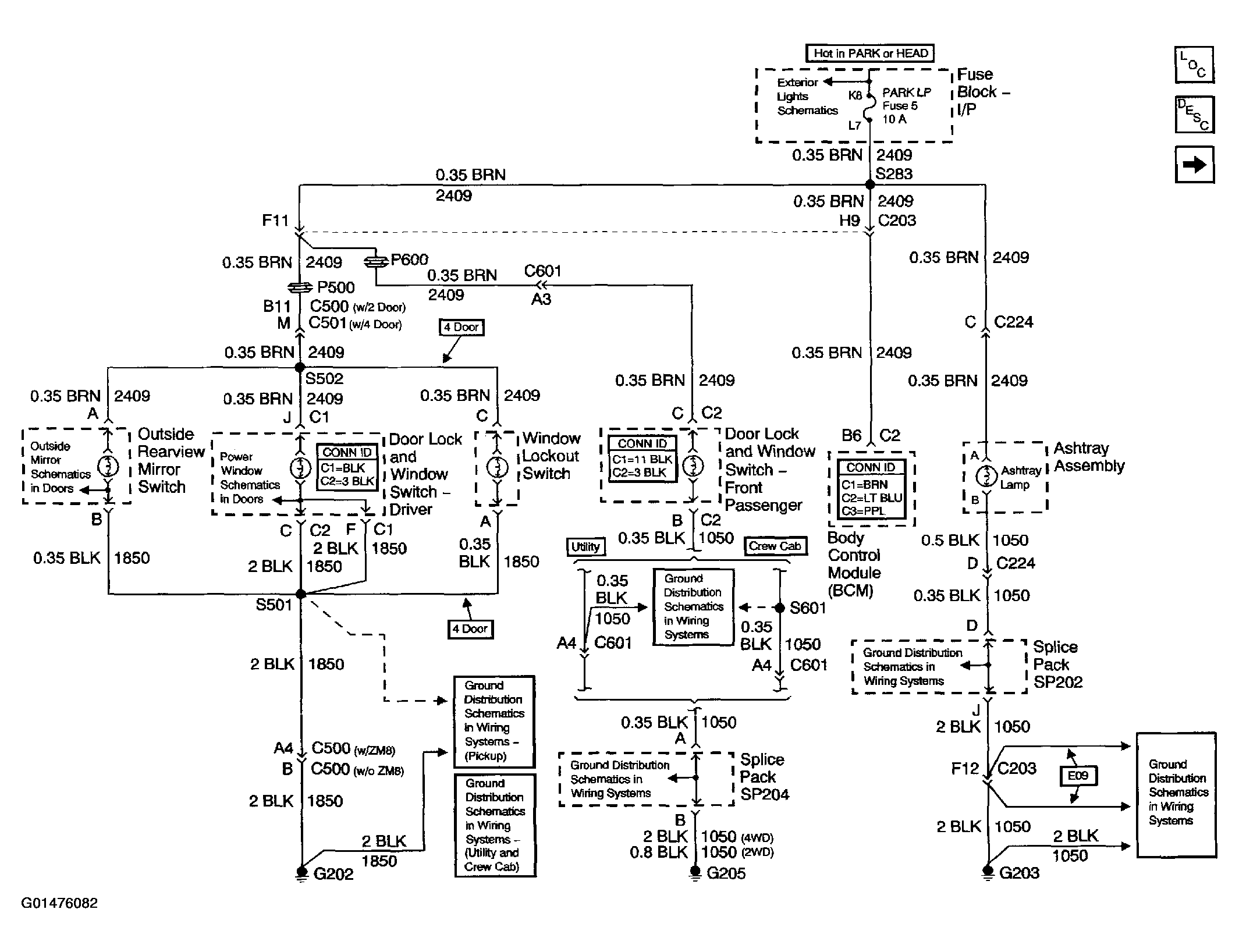

Fig 19: Interior Lights Schematics (Headlamp Switched Interior Lamps)

Courtesy of GENERAL MOTORS CORP.

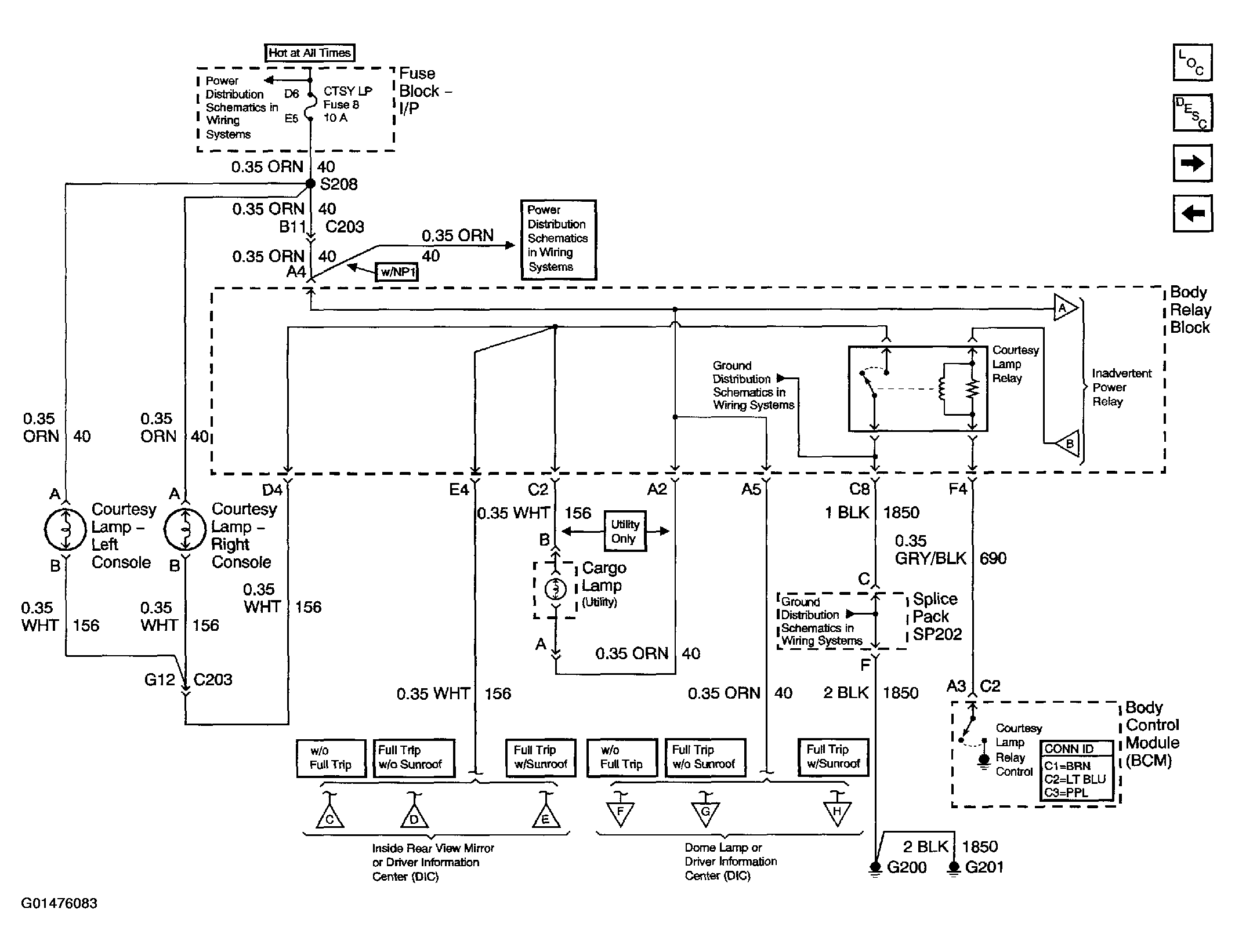

Fig 20: Interior Lights Schematics (CTSY LP Fuse & Courtesy Lamp Relay)

Courtesy of GENERAL MOTORS CORP.

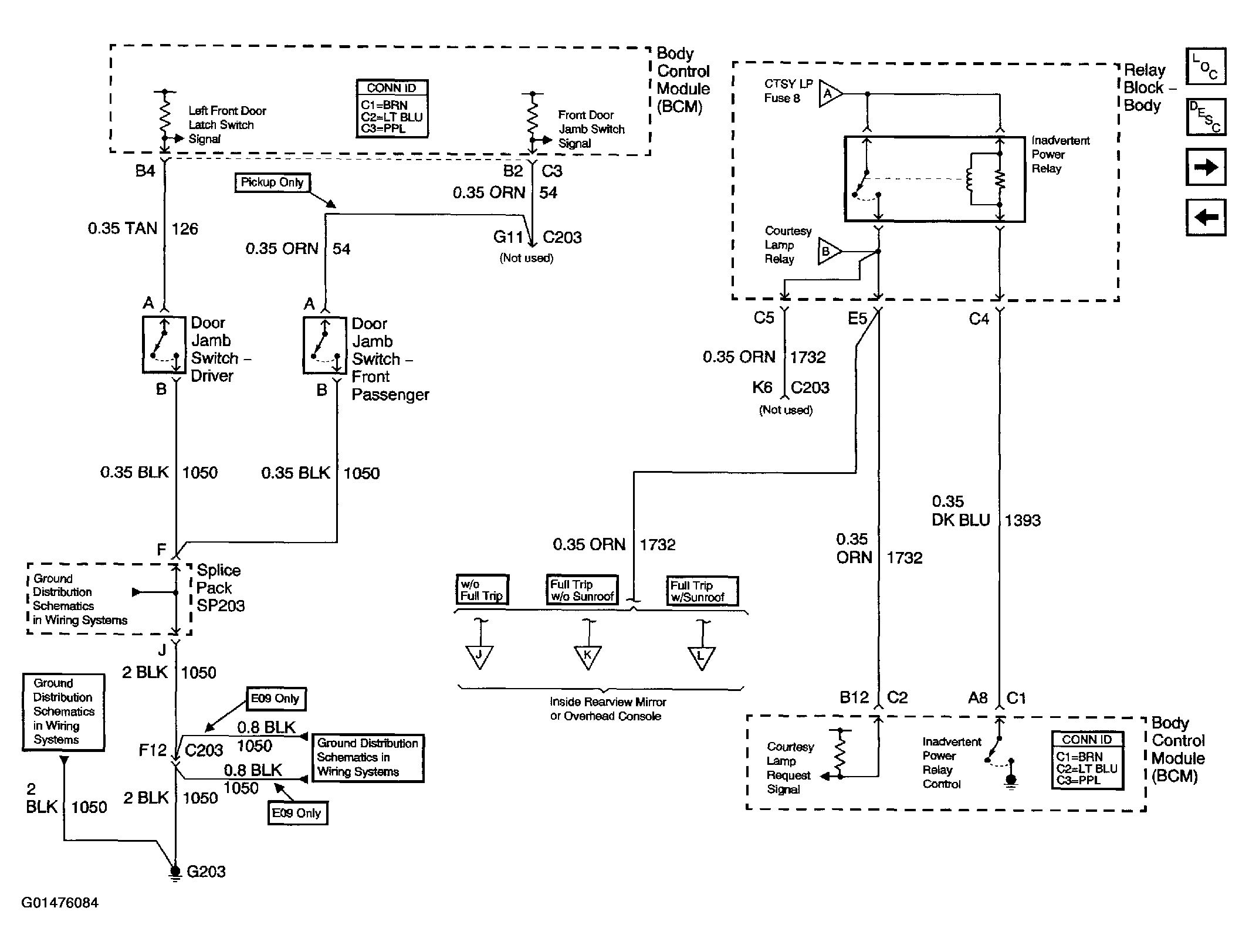

Fig 21: Interior Lights Schematics (Inadvertent Power Relay & Front Door Jamb Switches)

Courtesy of GENERAL MOTORS CORP.

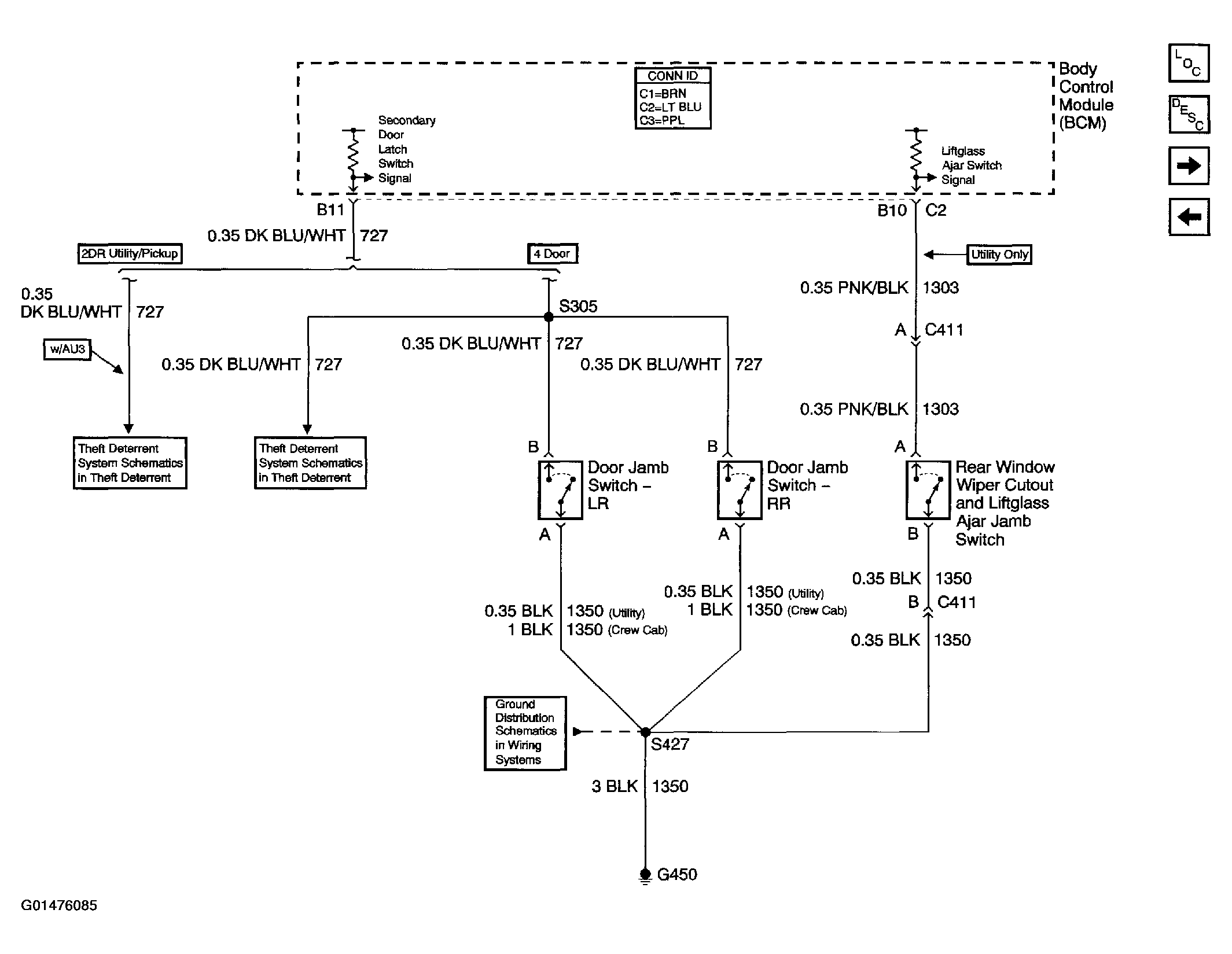

Fig 22: Interior Lights Schematics (Rear Door Jamb & Liftglass Ajar Jamb Switches)

Courtesy of GENERAL MOTORS CORP.

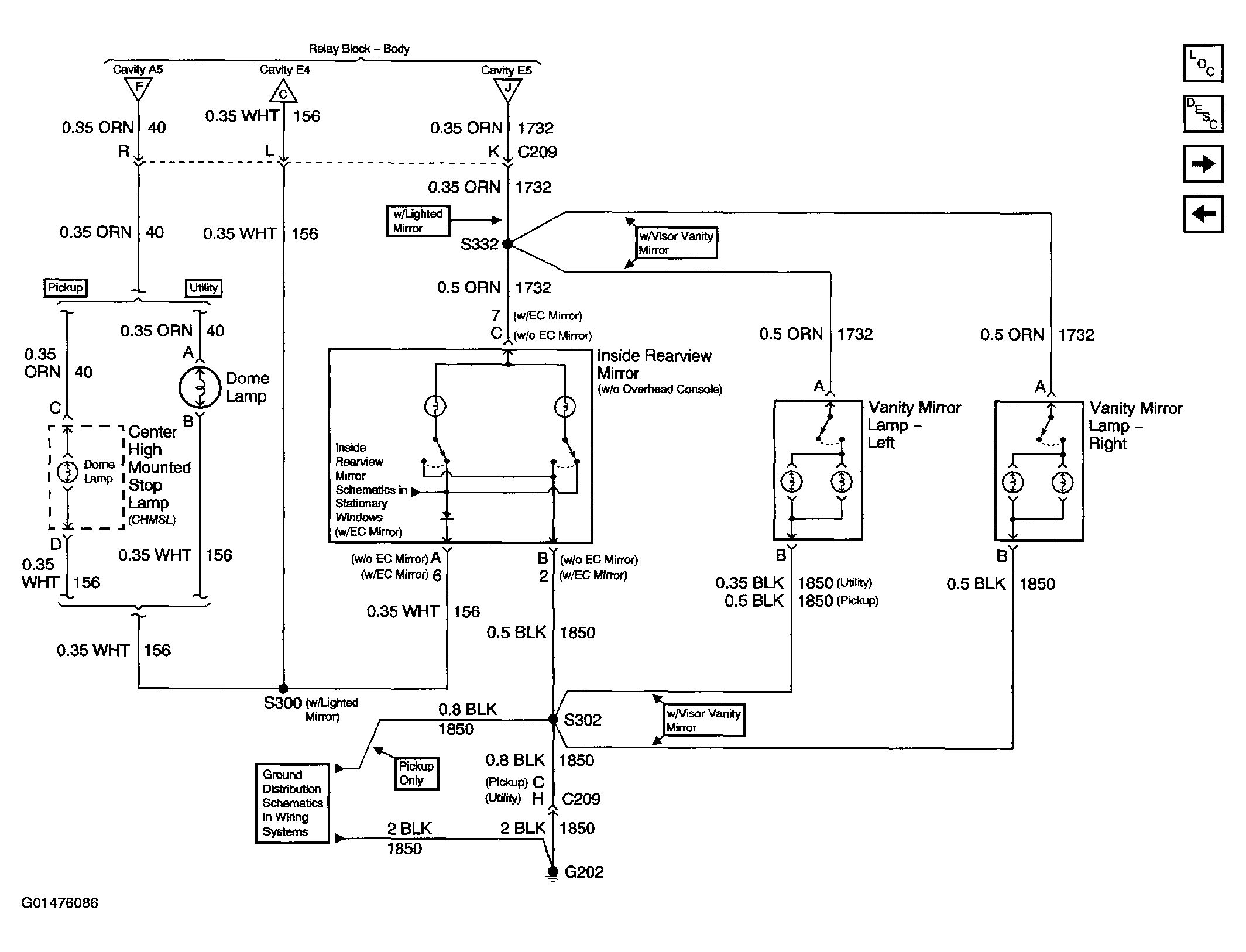

Fig 23: Interior Lights Schematics (Inside Rearview Mirror Or Driver Information Center)

Courtesy of GENERAL MOTORS CORP.

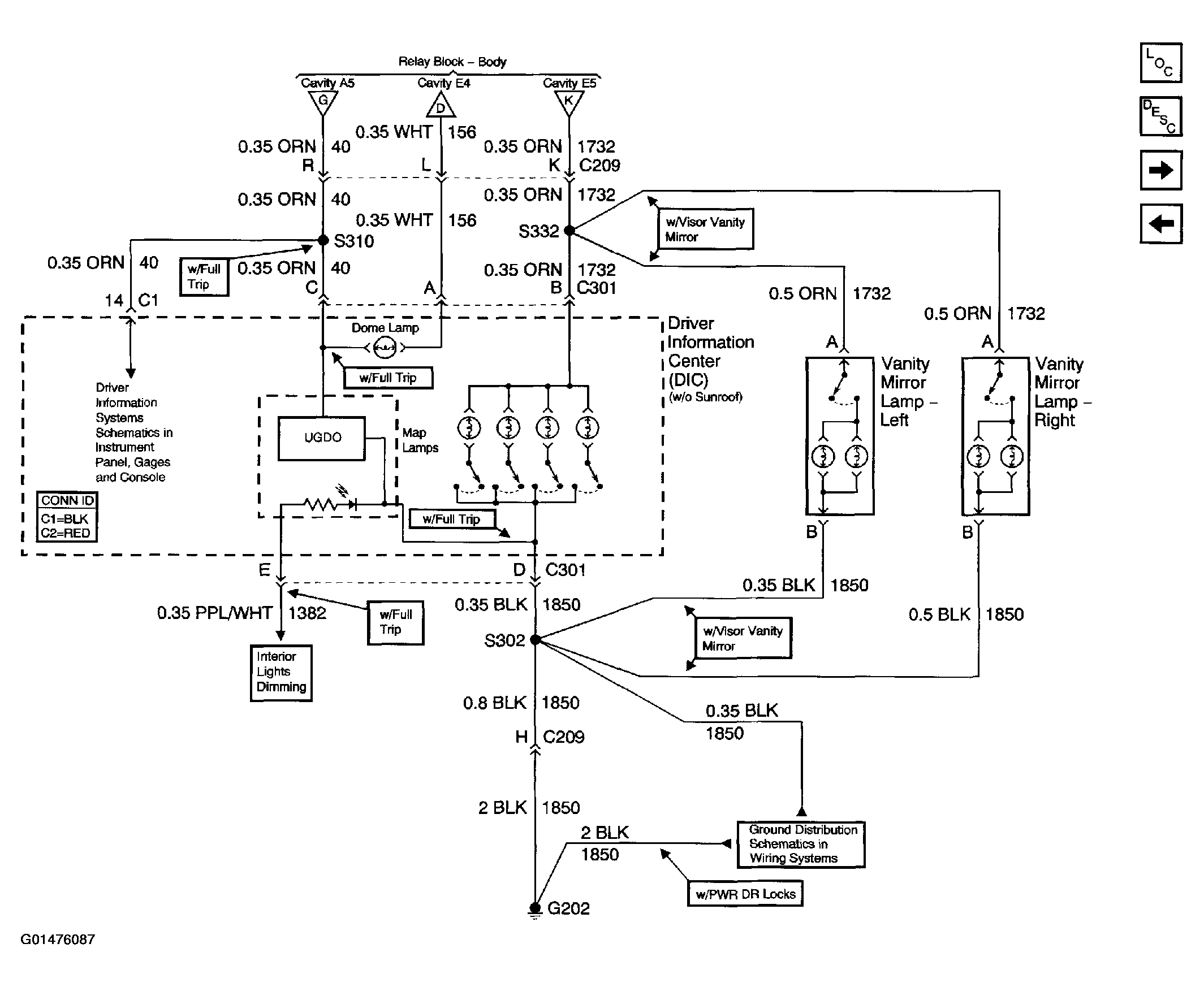

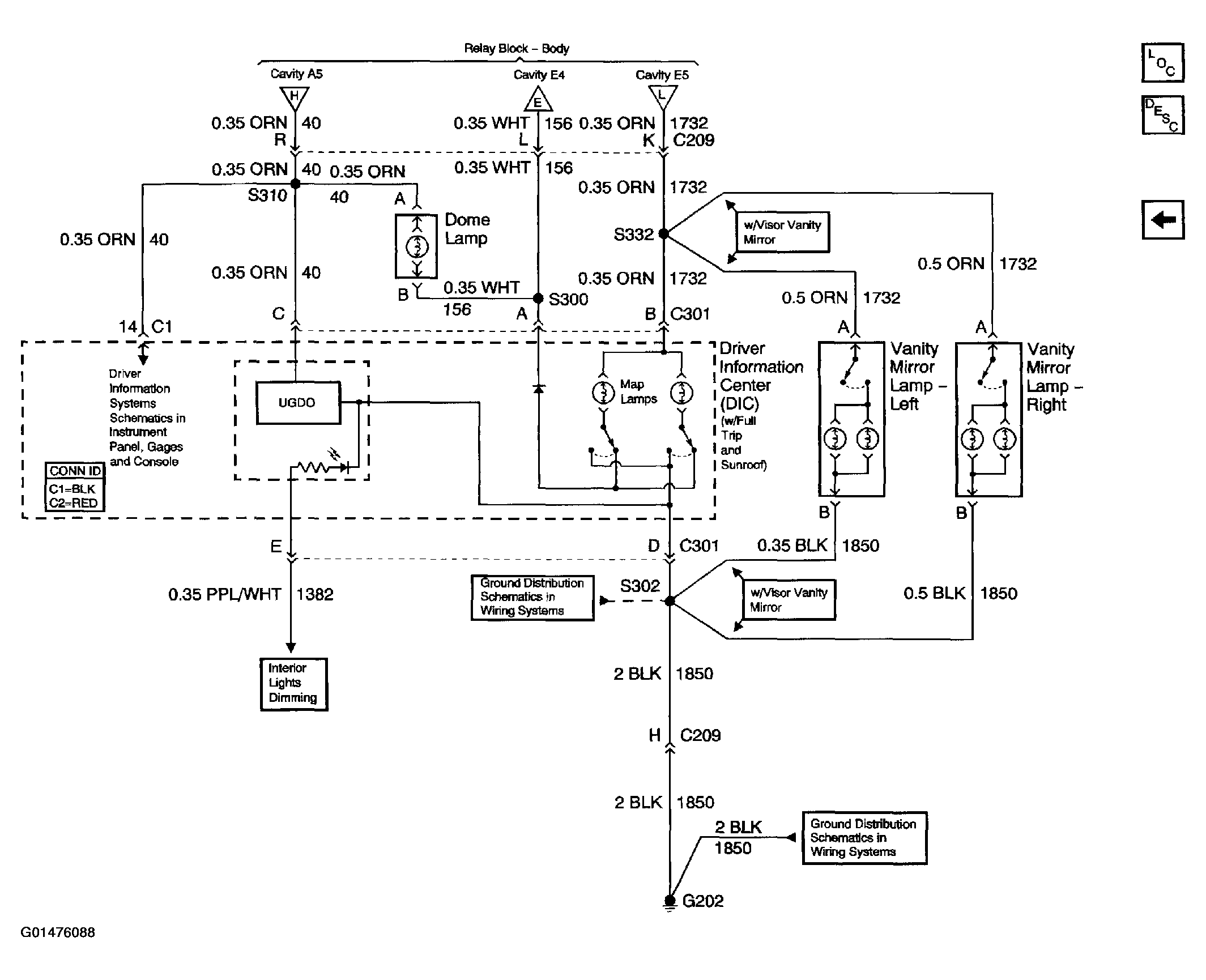

Fig 24: Interior Lights Schematics (Driver Information Center (Utility W/O Sunroof))

Courtesy of GENERAL MOTORS CORP.

Fig 25: Interior Lights Schematics (Driver Information Display Module (Utility W/ Sunroof))

Courtesy of GENERAL MOTORS CORP.

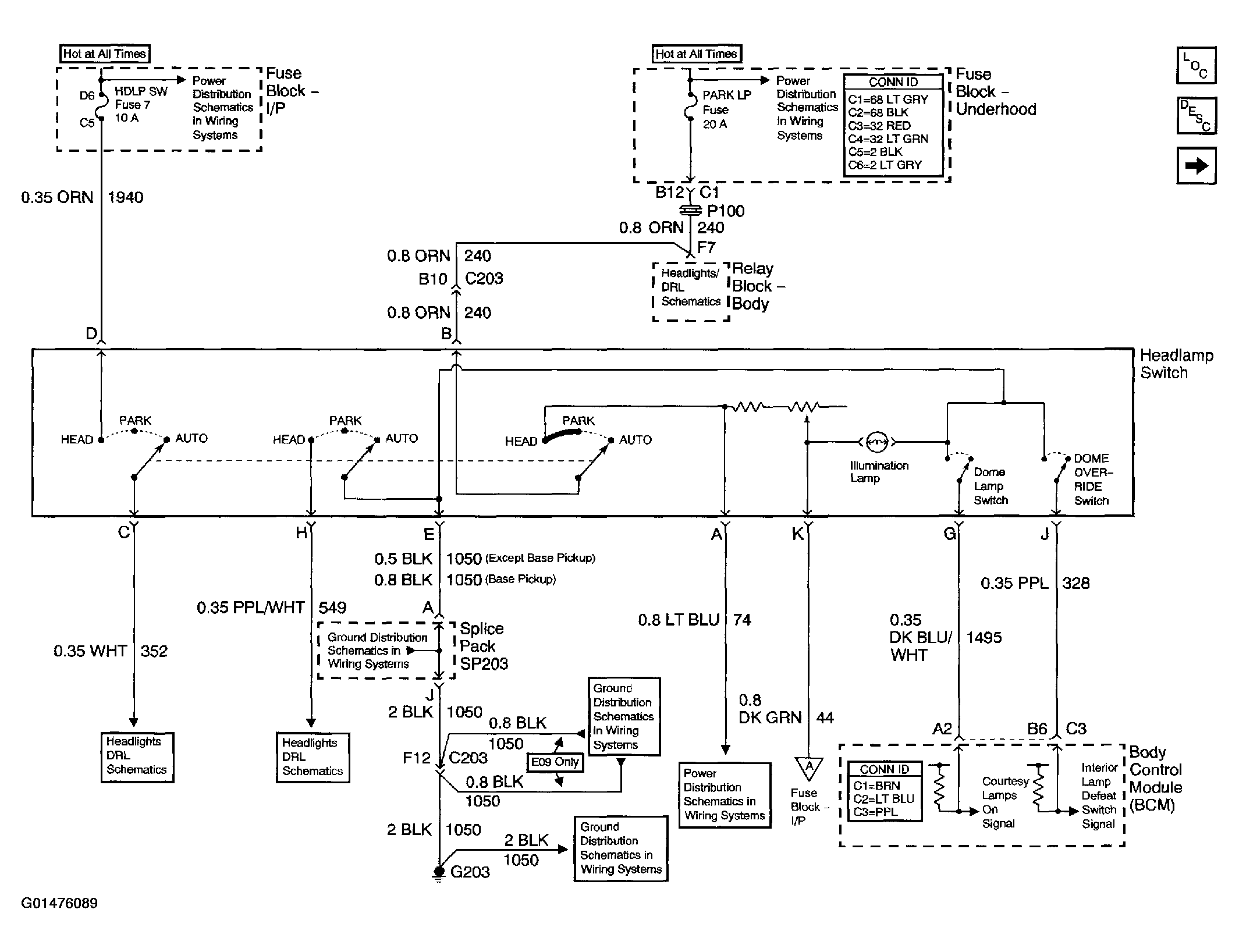

Fig 26: Interior Lights Dimming Schematics (Headlamp Switch)

Courtesy of GENERAL MOTORS CORP.

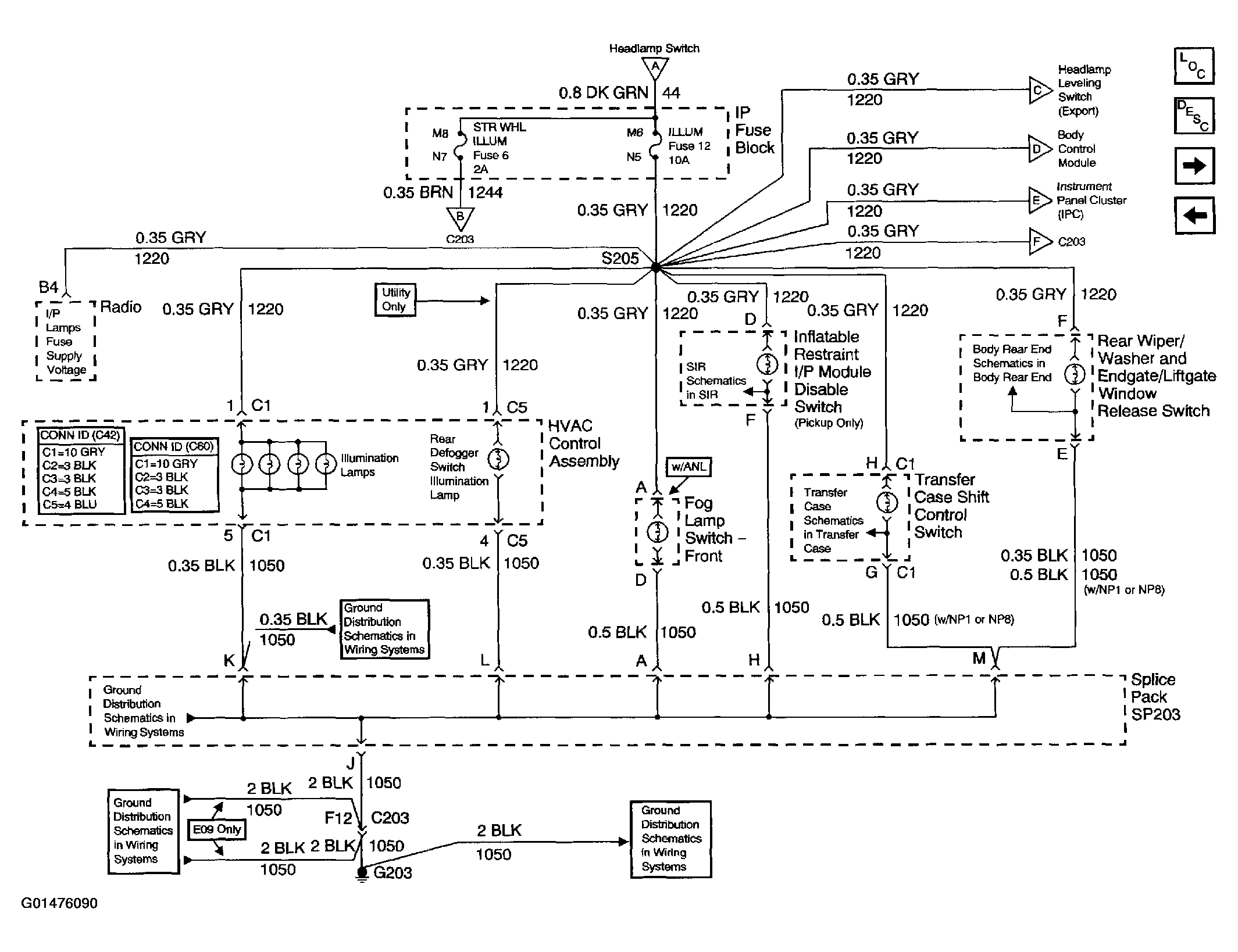

Fig 27: Interior Lights Dimming Schematics (ILLUM Fuse 12)

Courtesy of GENERAL MOTORS CORP.

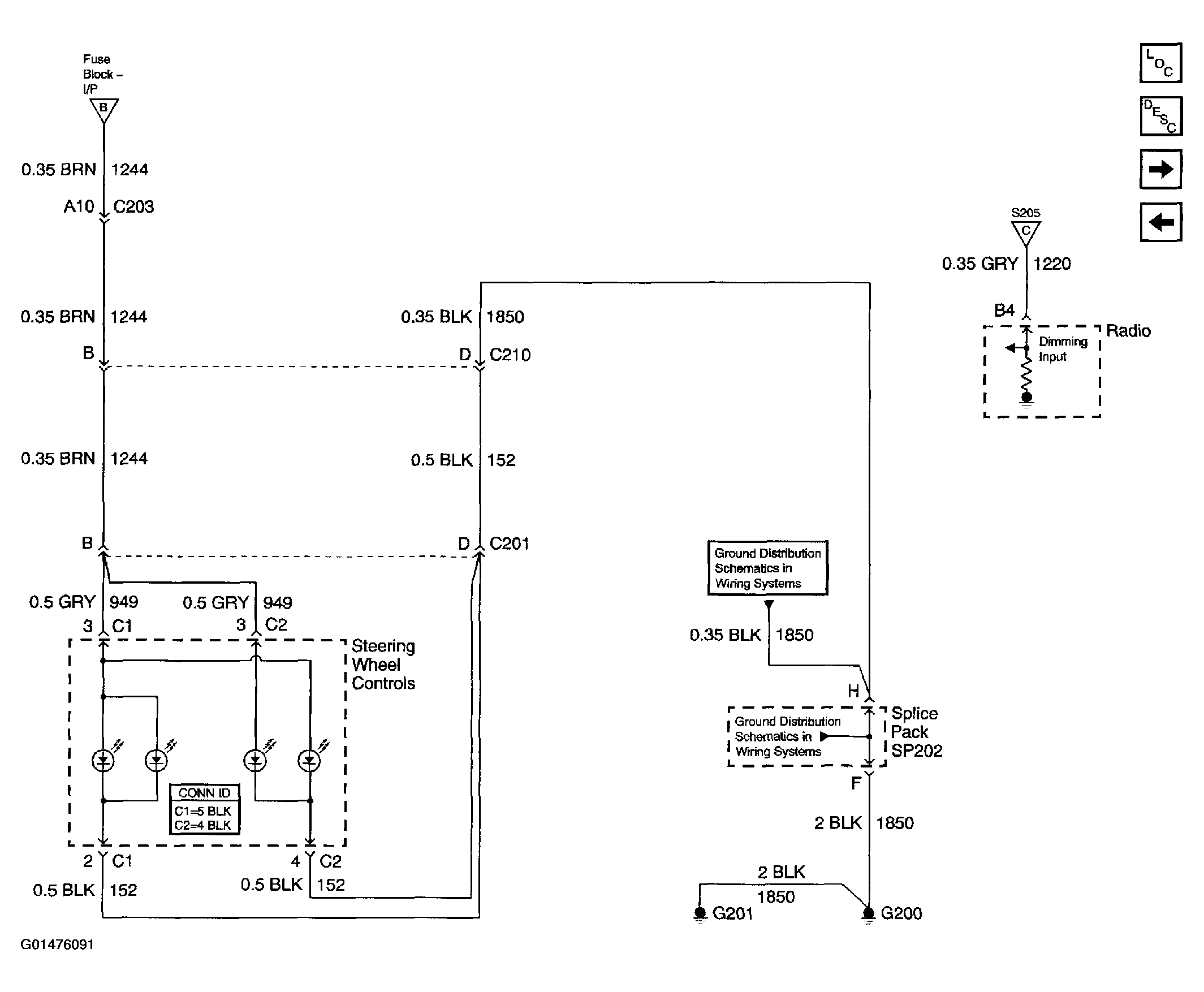

Fig 28: Interior Lights Dimming Schematics (Steering Wheel Controls)

Courtesy of GENERAL MOTORS CORP.

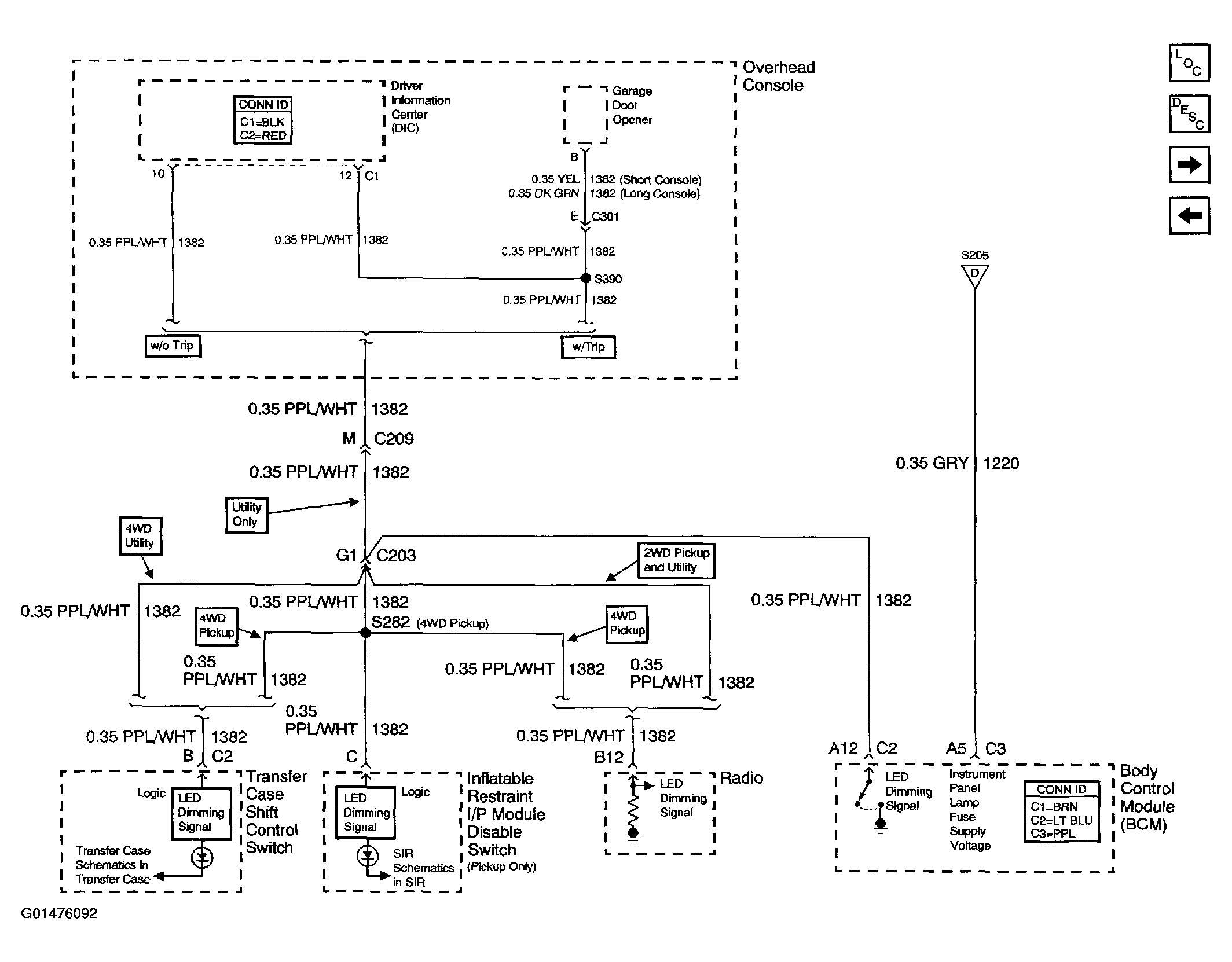

Fig 29: Interior Lights Dimming Schematics (LED Dimming Signal)

Courtesy of GENERAL MOTORS CORP.

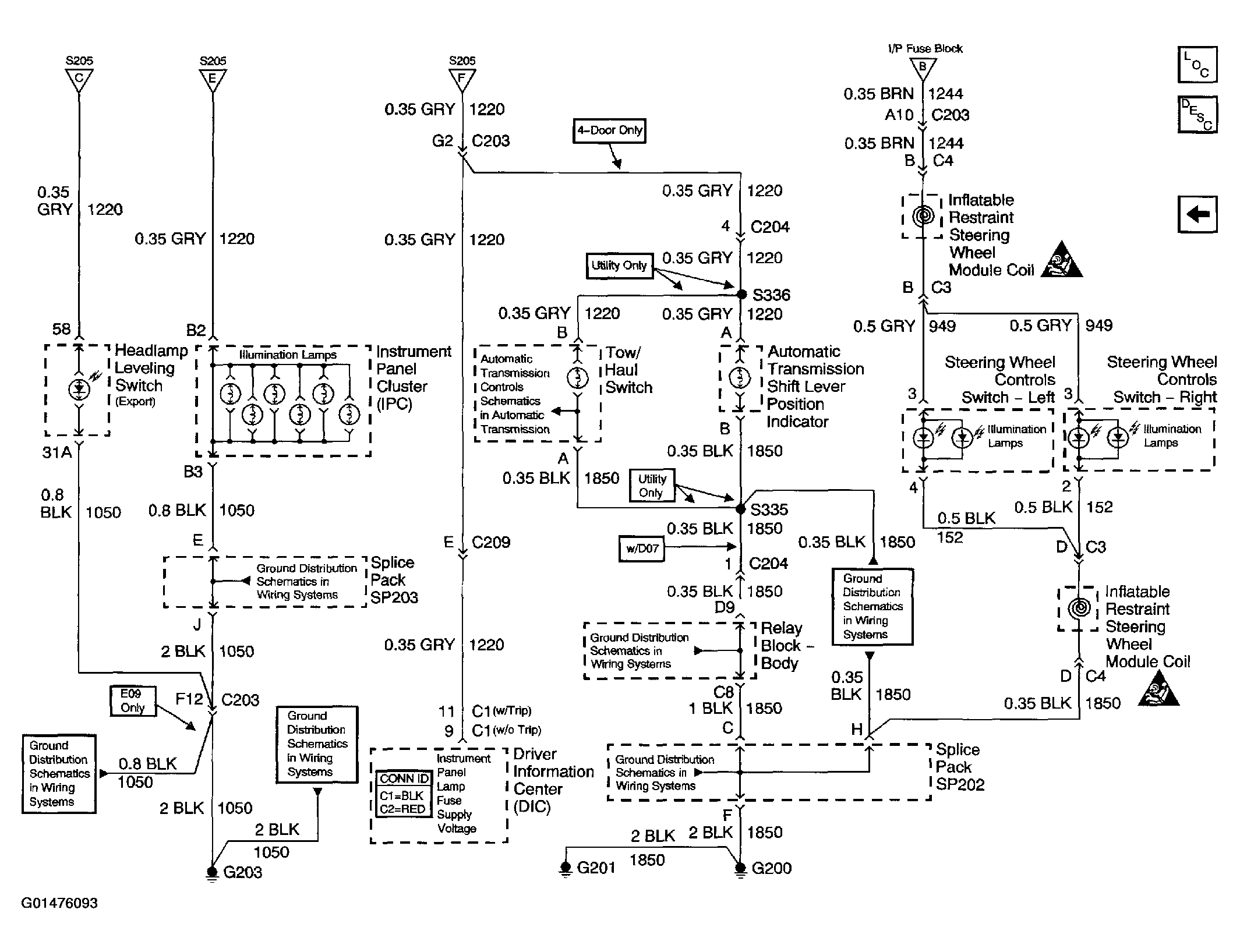

Fig 30: Interior Lights Dimming Schematics (Instrument Panel Cluster, BCM & Automatic Transmission Indicators)

Courtesy of GENERAL MOTORS CORP.
