Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Remove the rear window garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- REAR UPPER in Interior Trim.
  3. Disconnect the electrical connector.
  4. Remove the cargo lamp assembly from the roof rear header garnish molding by prying out the assembly using a flat-bladed tool.

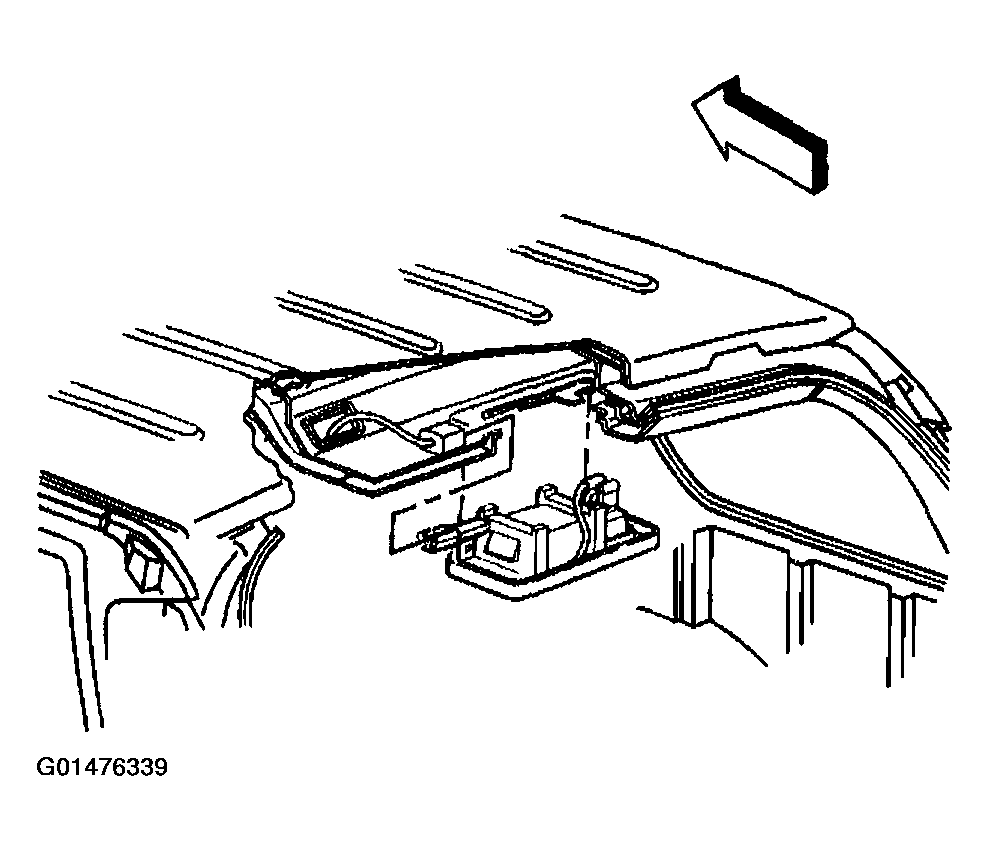

    Fig 1: Removing Cargo Lamp Assembly From Roof Rear Header Garnish Molding
    G01476339Courtesy of GENERAL MOTORS CORP.
