Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the socket.
Install the bulb and socket assembly to the ash tray housing.
Install the ash tray liner.
Install the ashtray housing to the instrument panel. Refer to ASHTRAY REPLACEMENT in Instrument Panel, Gages and Console.
Connect the battery negative cable.

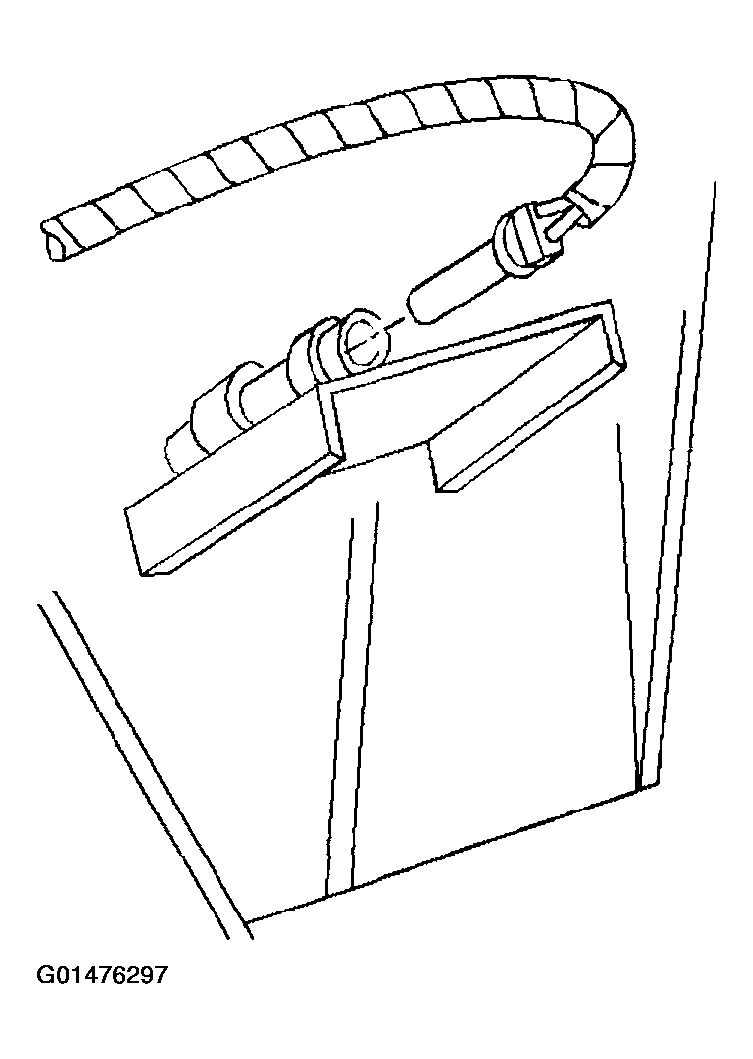

Fig 1: Installing Bulb & Socket Assembly To Ash Tray Housing
Courtesy of GENERAL MOTORS CORP.
