Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb into the socket.

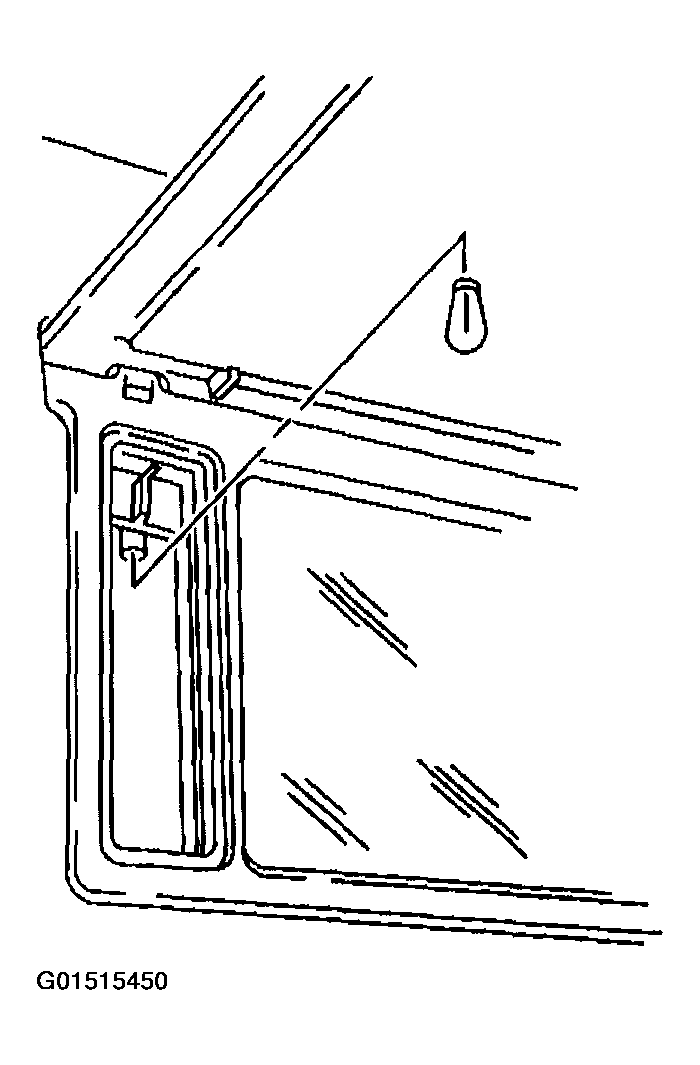

Fig 1: Vanity Mirror Lamp Bulb Installation (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Position the vanity mirror lamp lens to the sunshade.
Align the lens tabs into the housing slots and insert the upper edge of the lens first.

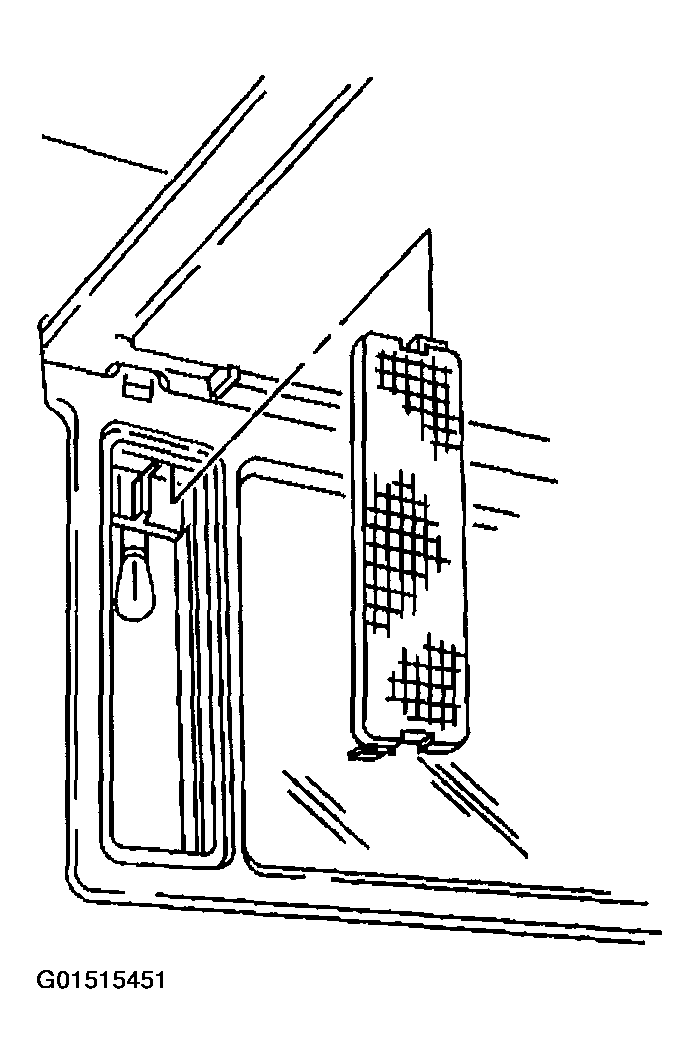

Fig 2: Vanity Mirror Lamp Bulb Installation (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Insert a small flat-bladed tool at the lower edge of the vanity mirror lamp lens then press up to fully install the lens.
Close the lamp cover door and raise the sunshade.

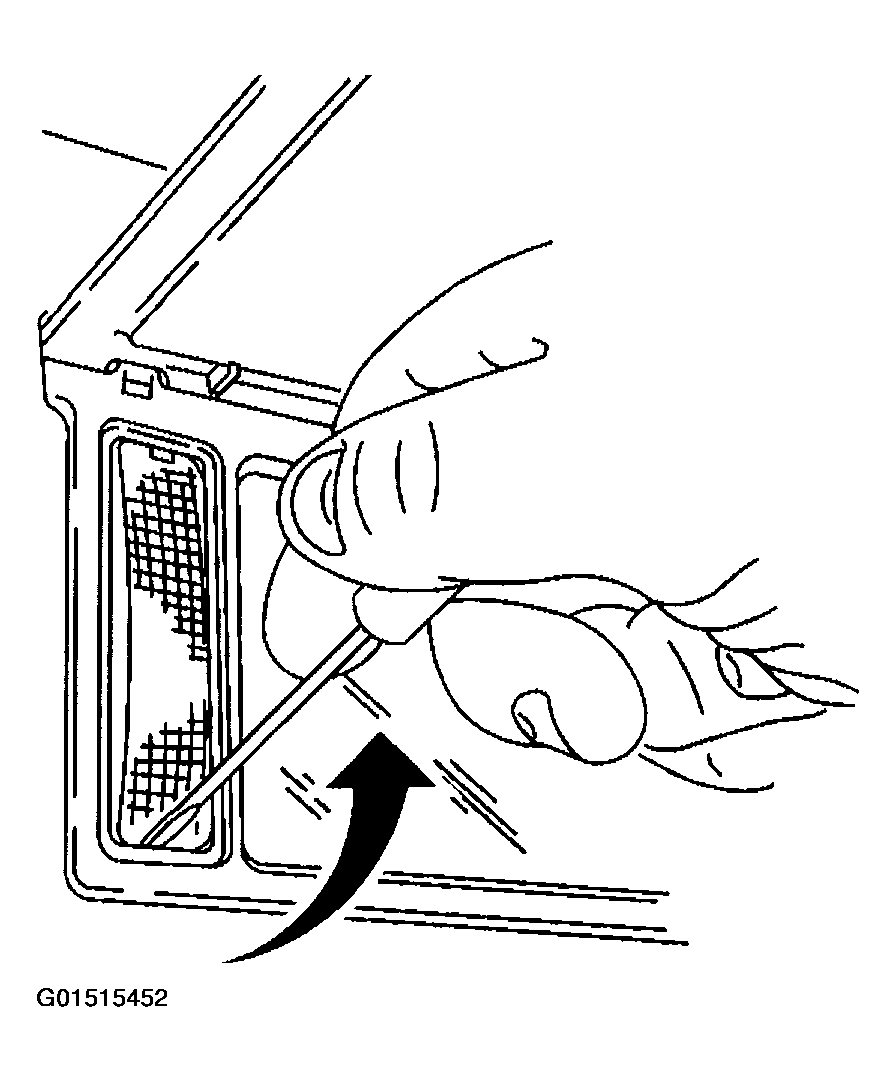

Fig 3: Vanity Mirror Lamp Bulb Installation (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
