Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the fog lamp switch.

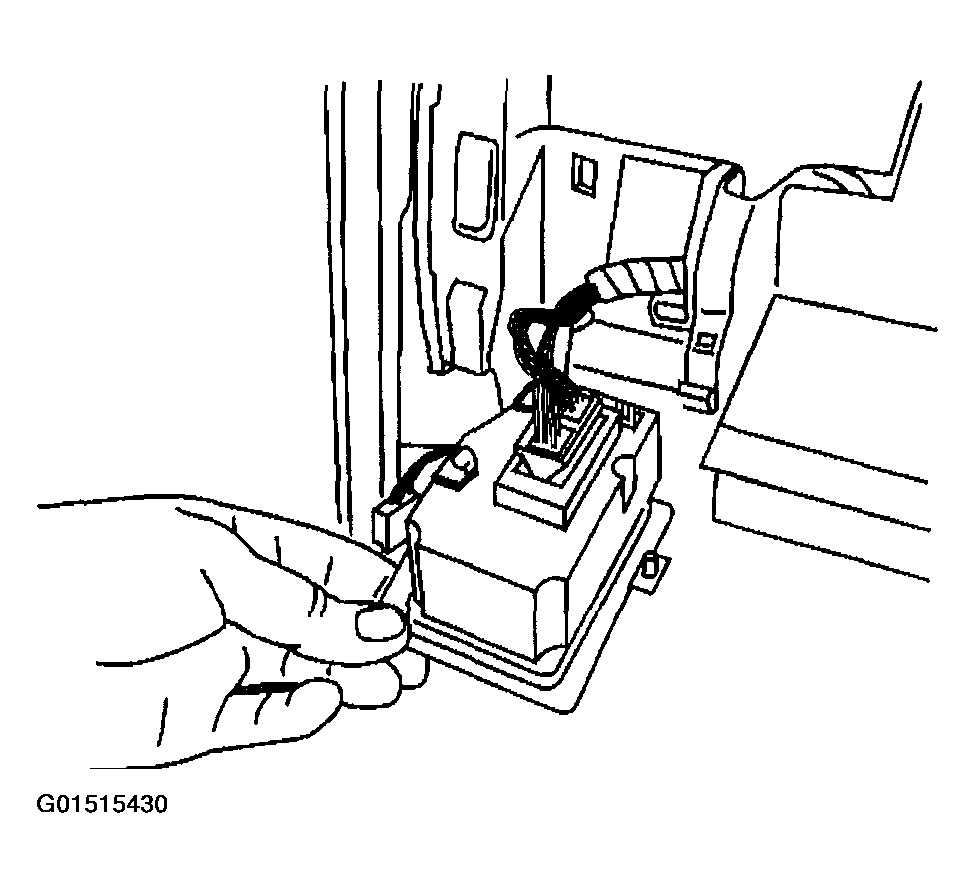

    Fig 1: Fog Lamp Switch - Front Installation Procedure (1 Of 2)
    G01515430Courtesy of GENERAL MOTORS CORP.
  2. Position the fog lamp switch to the retainers in the I/P carrier.
  3. Install the fog lamp switch to the I/P carrier. Press the switch into place until fully seated.
  4. Install the I/P cluster trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .

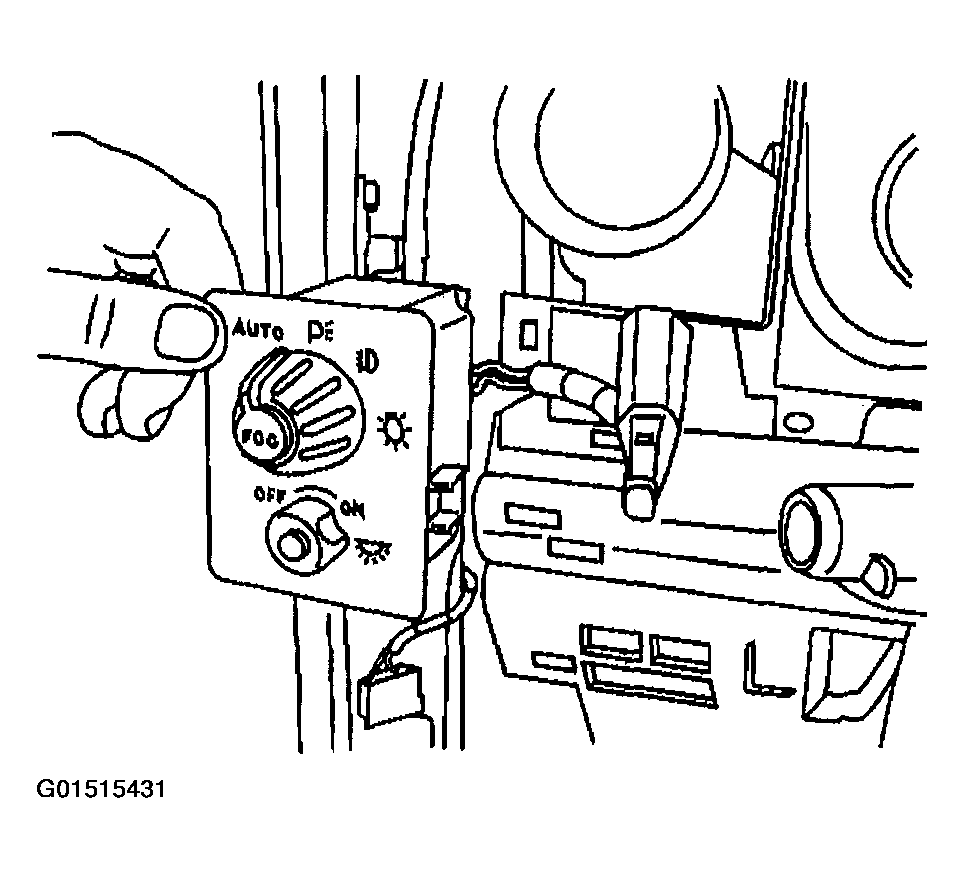

    Fig 2: Fog Lamp Switch - Front Installation Procedure (2 Of 2)
    G01515431Courtesy of GENERAL MOTORS CORP.
