Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the fog lamp bulb to the fog lamp, turning clockwise, if required.

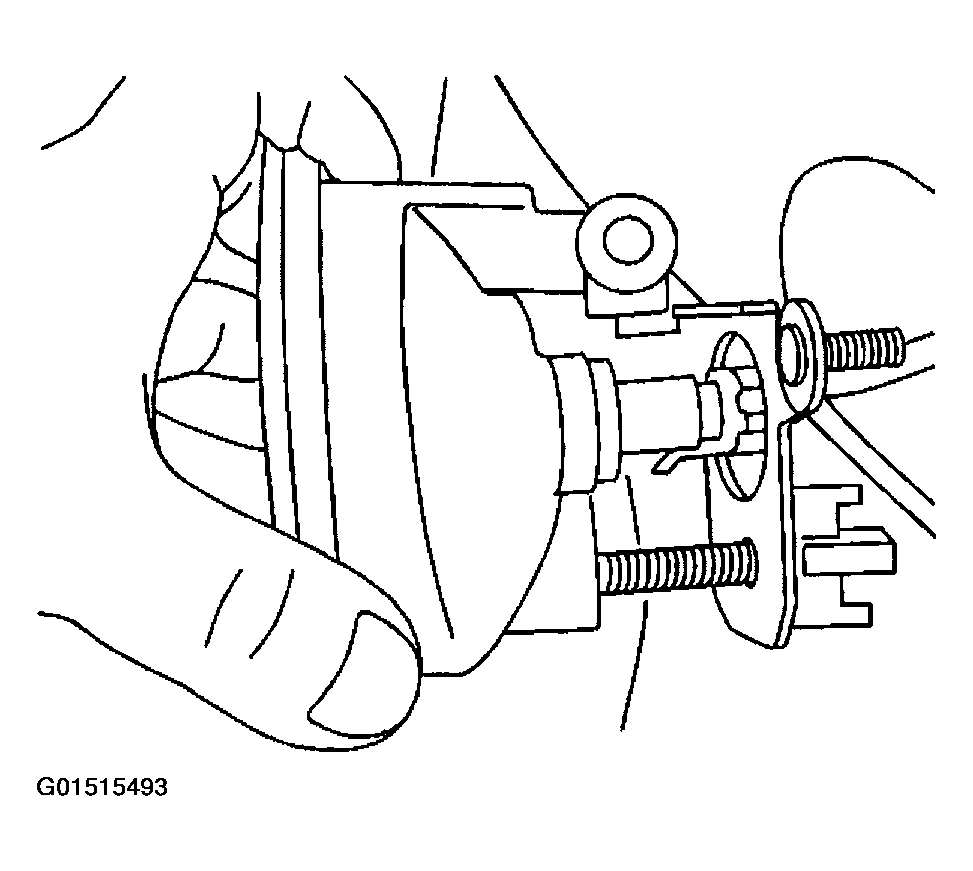

Fig 1: Front Fog Lamp Installation Procedure - Aztek (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Install the fog lamp to the front bumper fascia.
Install the fog lamp nuts to the fog lamp.

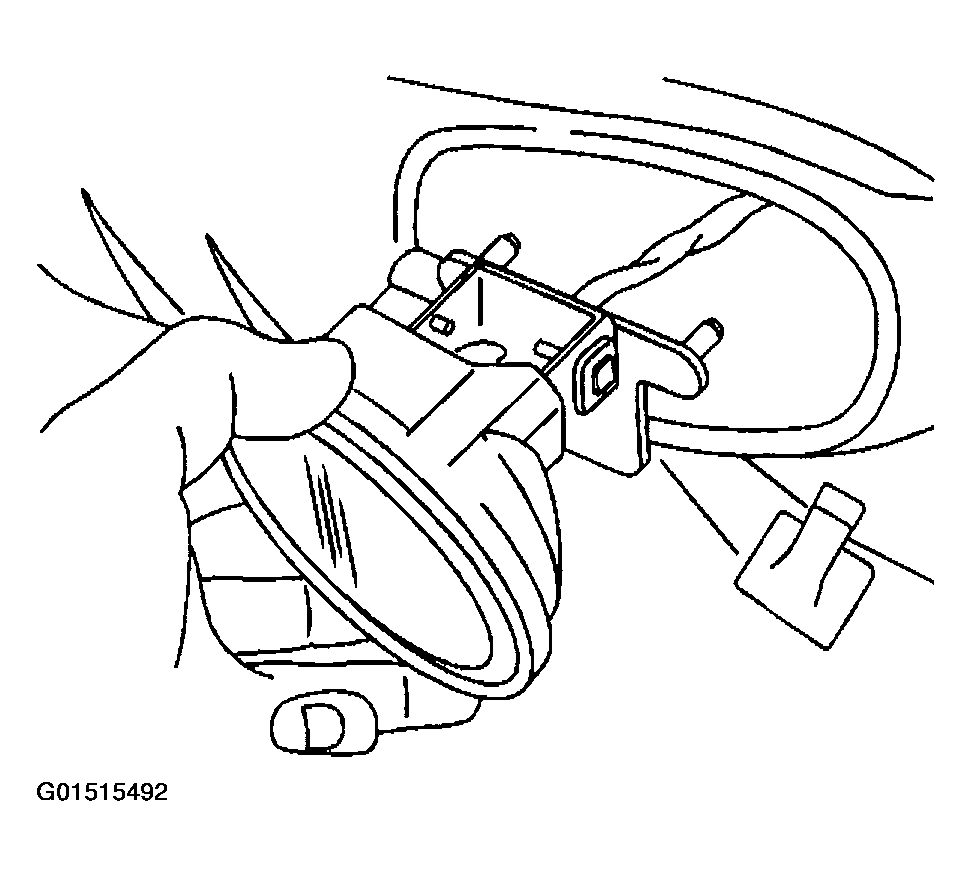

Fig 2: Front Fog Lamp Installation Procedure - Aztek (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the fog lamp nuts to 10 N.m (89 lb in).

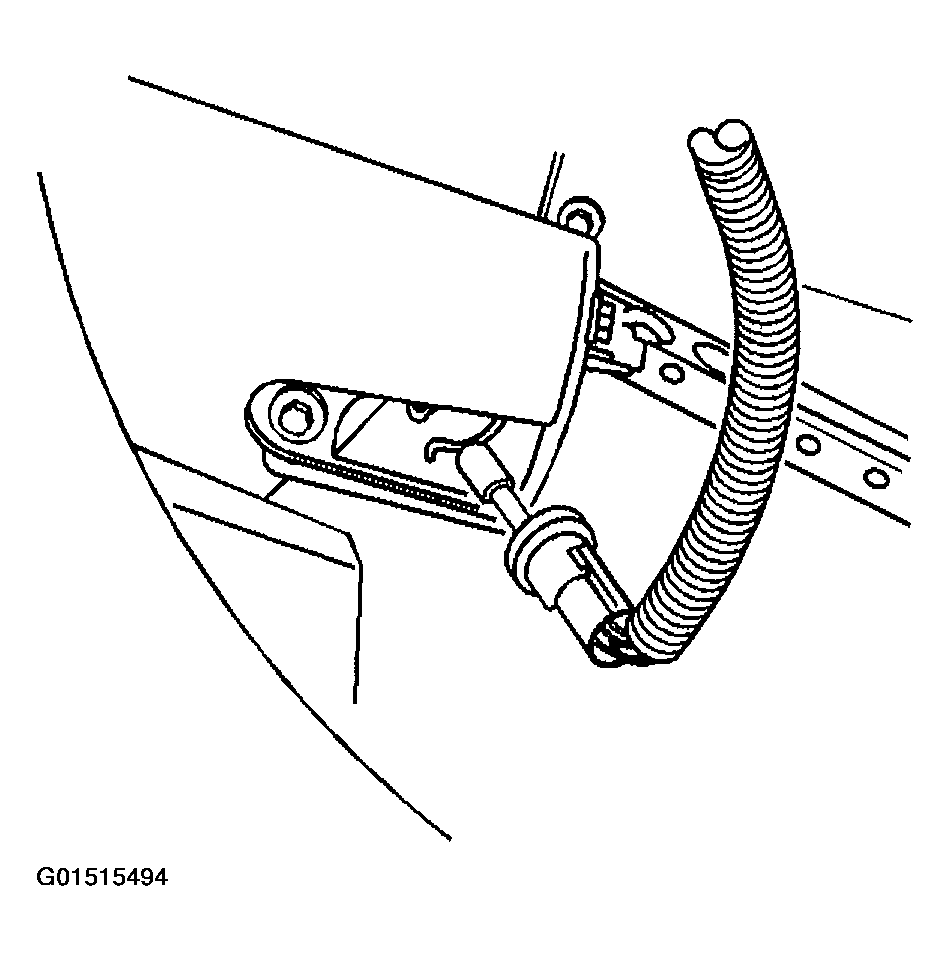

Fig 3: Front Fog Lamp Installation Procedure - Aztek (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the fog lamp.
Lower the vehicle.
Check and adjust the fog lamp aim as necessary. Refer to FOG LAMP AIMING PROCEDURE .

Fig 4: Front Fog Lamp Removal Procedure - Rendezvous (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
