Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Use a small flat-bladed tool in order to remove the rear cargo lamp from the rear upper garnish molding.
Disconnect the electrical connectors from the rear cargo lamp.
Remove the rear cargo lamp from the rear upper garnish molding.

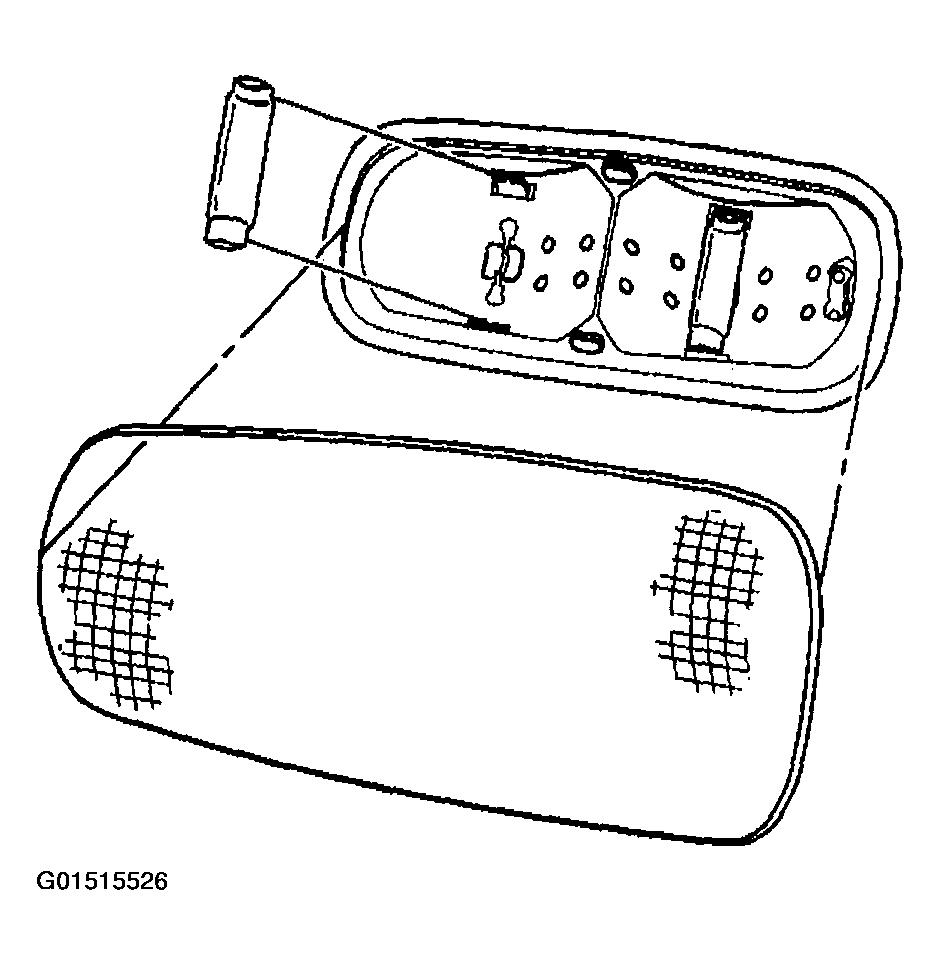

Fig 1: Cargo Lamp Removal (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Use a small flat-bladed tool in order to remove the cargo lamp lens from the cargo lamp.
Use a small flat-bladed tool in order to remove the bulb from the socket.

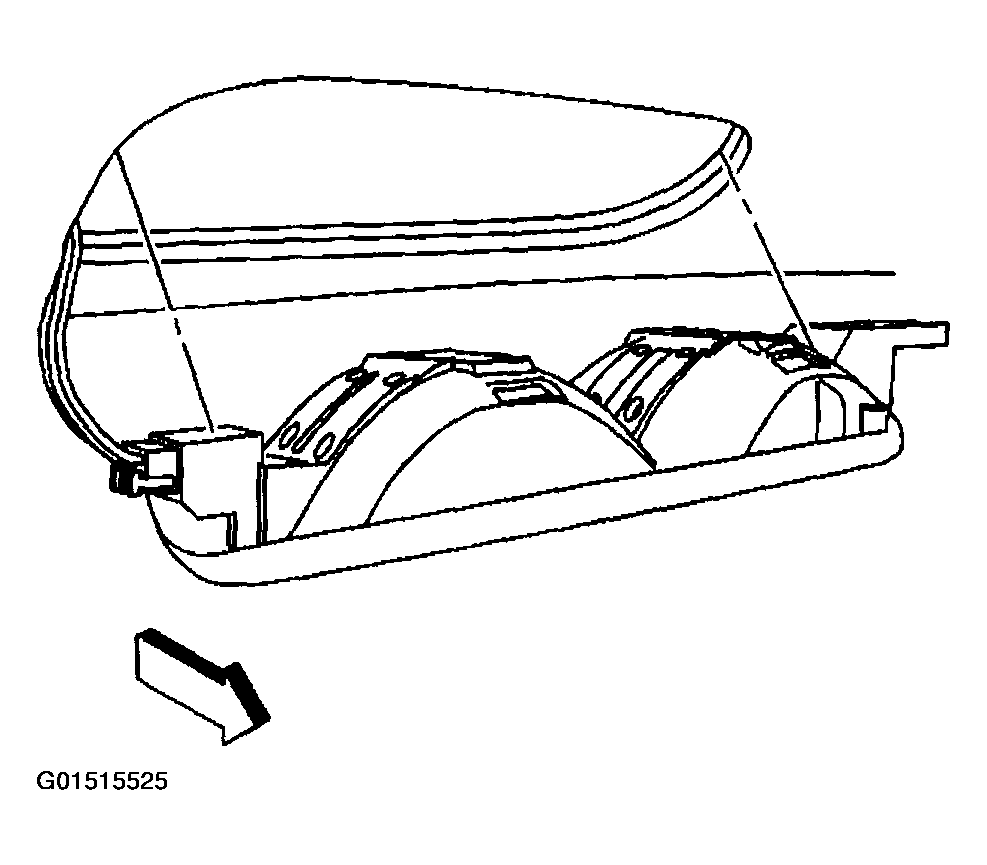

Fig 2: Cargo Lamp Removal (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
