Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the socket.
  2. Install the bulb socket to the tail/turn lamp assembly by rotating the socket 1/4 turn clockwise.
  3. Install the tail/turn signal lamp assembly to the vehicle with the 2 screws.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

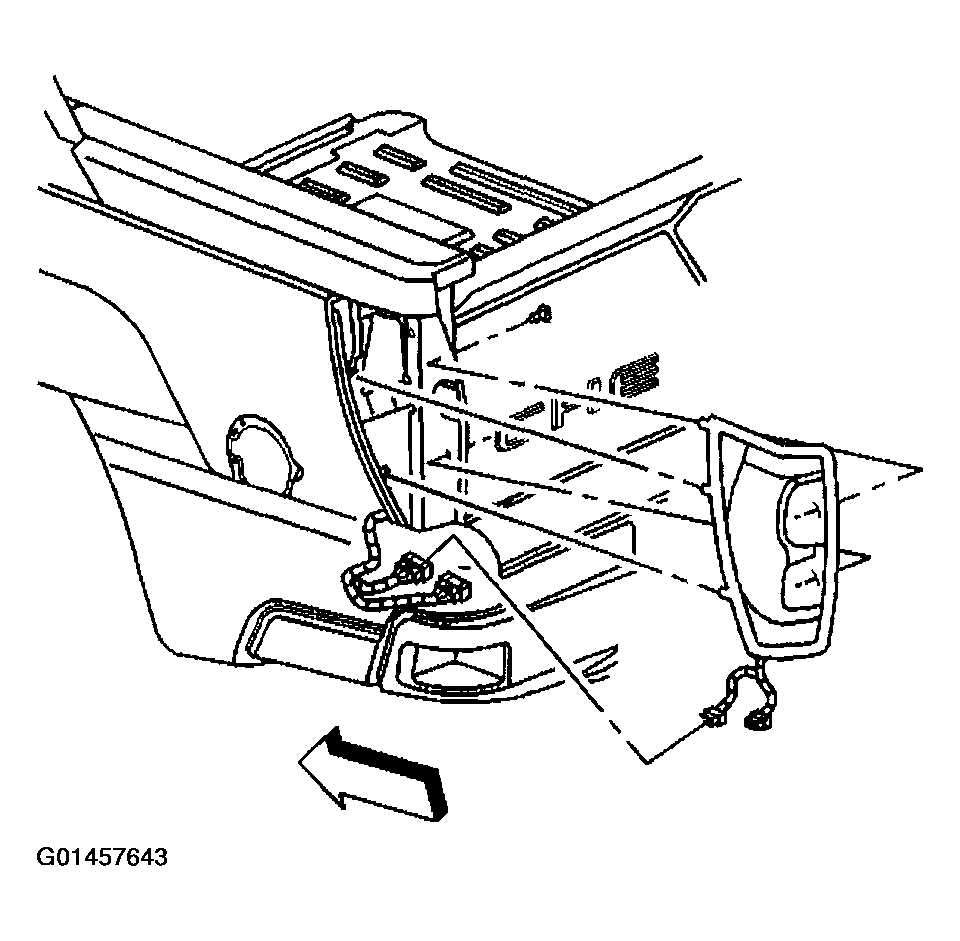

    4. Fig 1: Installing Procedure Tail/Turn Signal Lamp
    G01457643Courtesy of GENERAL MOTORS CORP.
  4. Close the endgate/liftgate.
  5. Inspect the operation.
