Inner Garnish Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.

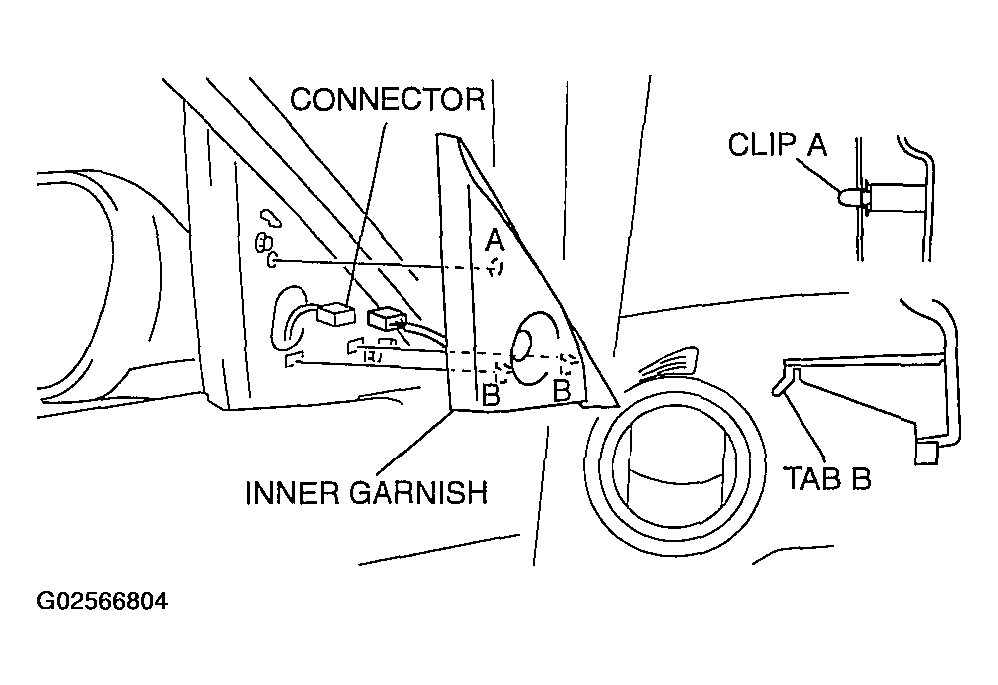

- Pull the inner garnish outward and detach clip A.
- Disconnect the connector.
- Detach the tabs B and remove the inner garnish.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
