Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fog lamp (2) to the vehicle.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fog lamp mounting bolts (1).

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

    Fig 1: Installing Fog Lamp
    G01779674Courtesy of GENERAL MOTORS CORP.
  3. Install the fog lamp bulb/socket (1) to the fog lamp by rotating clockwise.
  4. Install the wheelhouse splash shield. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.

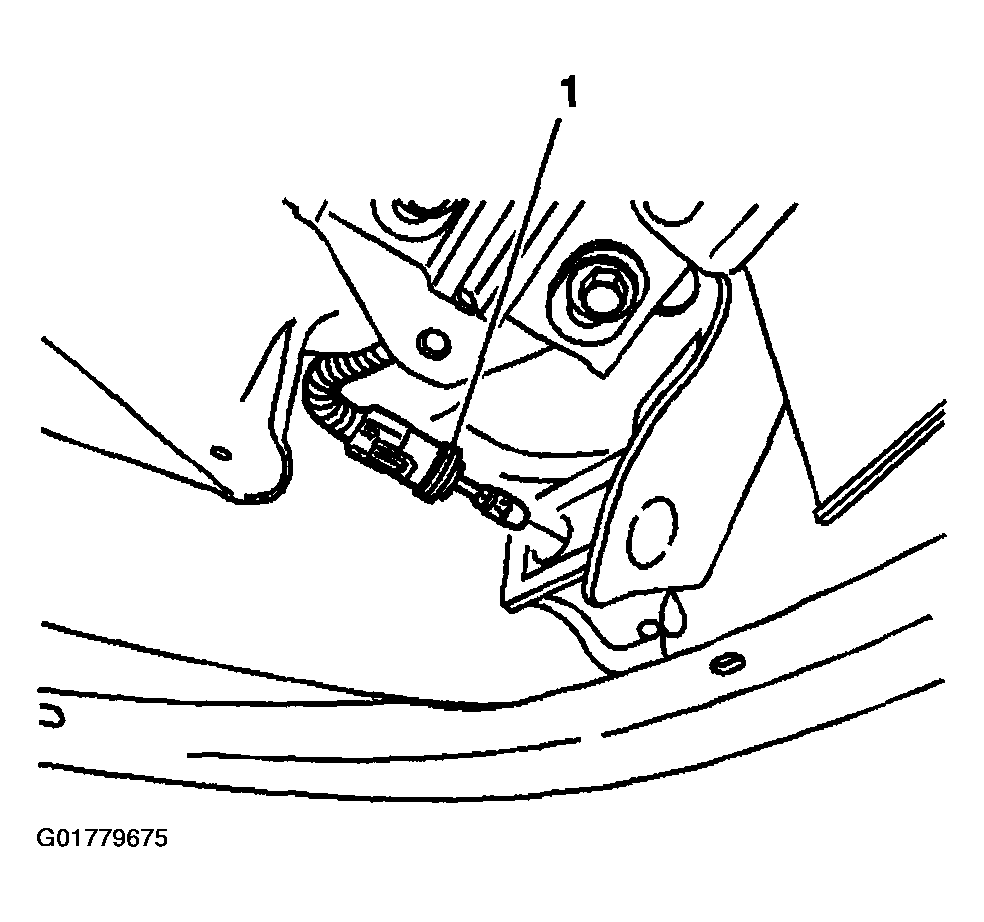

    Fig 2: Installing Fog Lamp Bulb/Socket
    G01779675Courtesy of GENERAL MOTORS CORP.
