Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the passenger front door.
  2. Remove the right side IP End Cover.
  3. Remove the fog lamp relay from the electrical center.

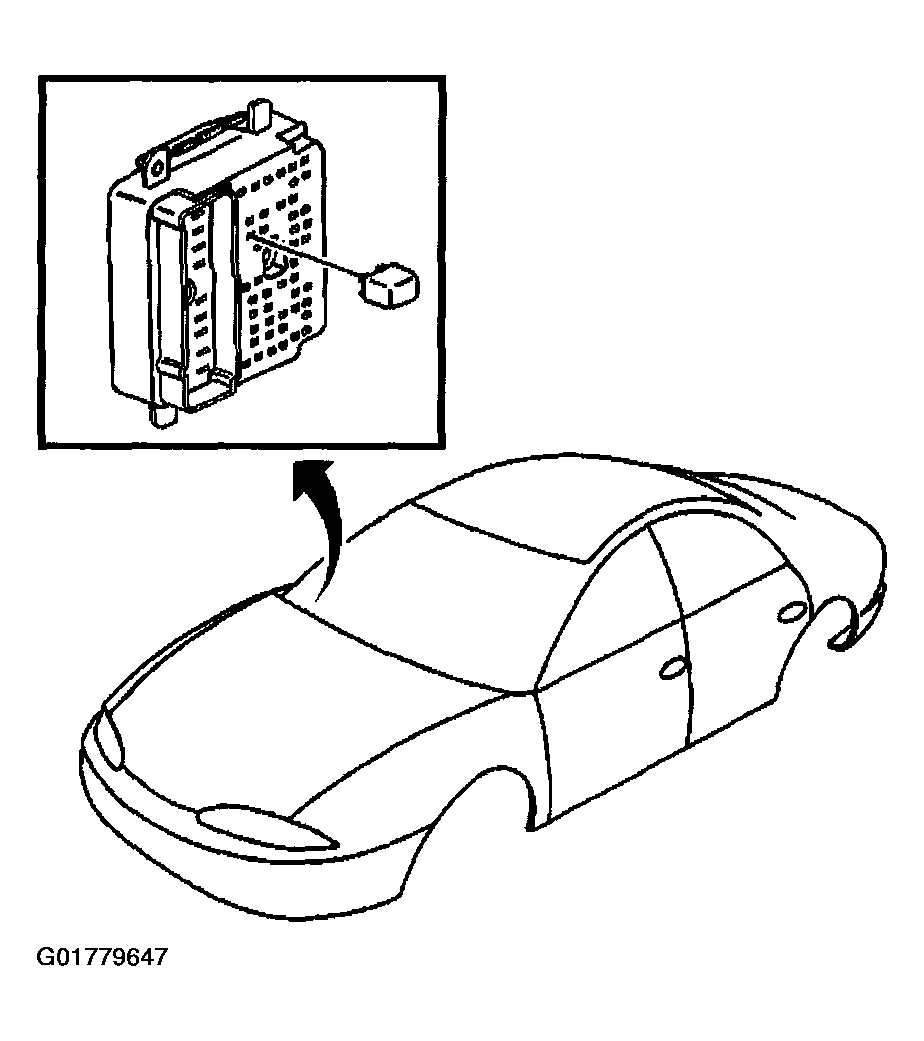

    Fig 1: Removing Fog Lamp Relay
    G01779647Courtesy of GENERAL MOTORS CORP.
