Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dome lens (1) from the dome lamp (2) with a flat bladed tool.
    Fig 1: Removing Dome Lens
    G01779659Courtesy of GENERAL MOTORS CORP.
  2. Remove the dome lamp (2) from the roof by pulling firmly in order to disengage the retainers (3).
  3. Disconnect the electrical connector (1) from the dome lamp (2).

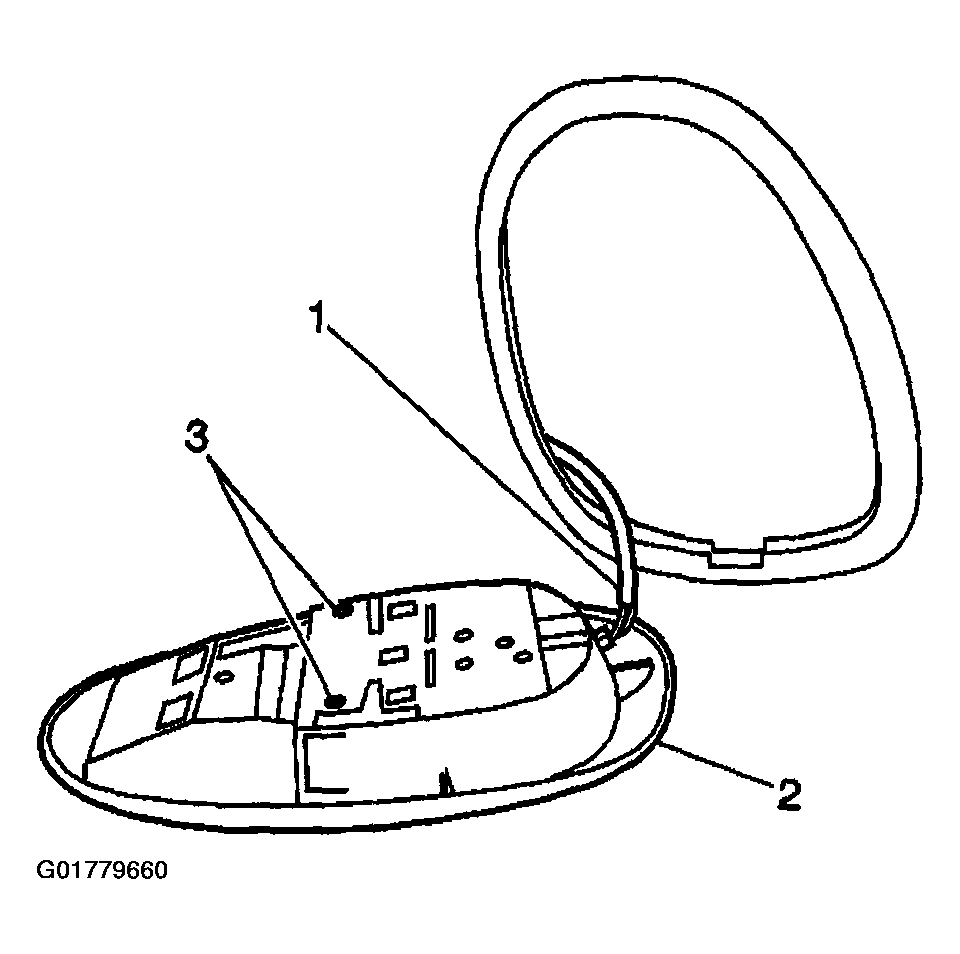

    Fig 2: Disconnecting Dome Lamp Electrical Connector
    G01779660Courtesy of GENERAL MOTORS CORP.
