Installation Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

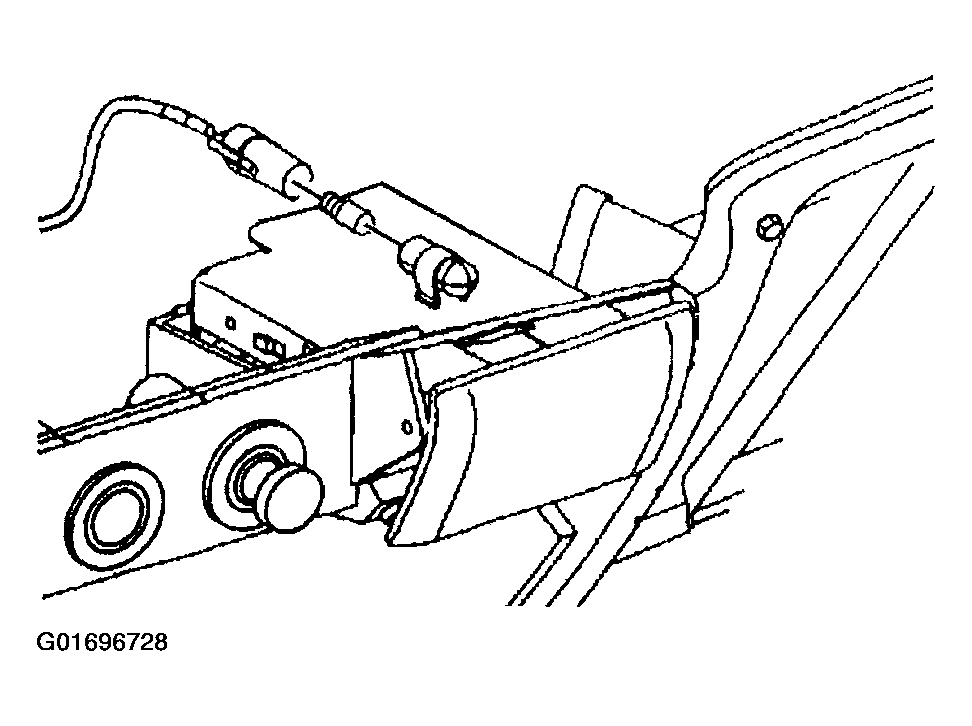

- Install the bulb into the base by pushing the bulb straight into the base.
- Install the shield to the lamp assembly.
- Install the lamp assembly and the shield to the top of the ashtray bracket.
- Install the ashtray assembly to the instrument panel.
- Install the instrument panel storage compartment.
- Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT (NON-LUXURY) or KNEE BOLSTER REPLACEMENT (LUXURY) .
