Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE FRONT in Instrument Panel, Gages and Console.
  2. Grasp the floor shift control trim bezel and lift to release the retaining tabs.
  3. Rotate the floor shift control indicator lamp socket counterclockwise to release from the trim bezel.

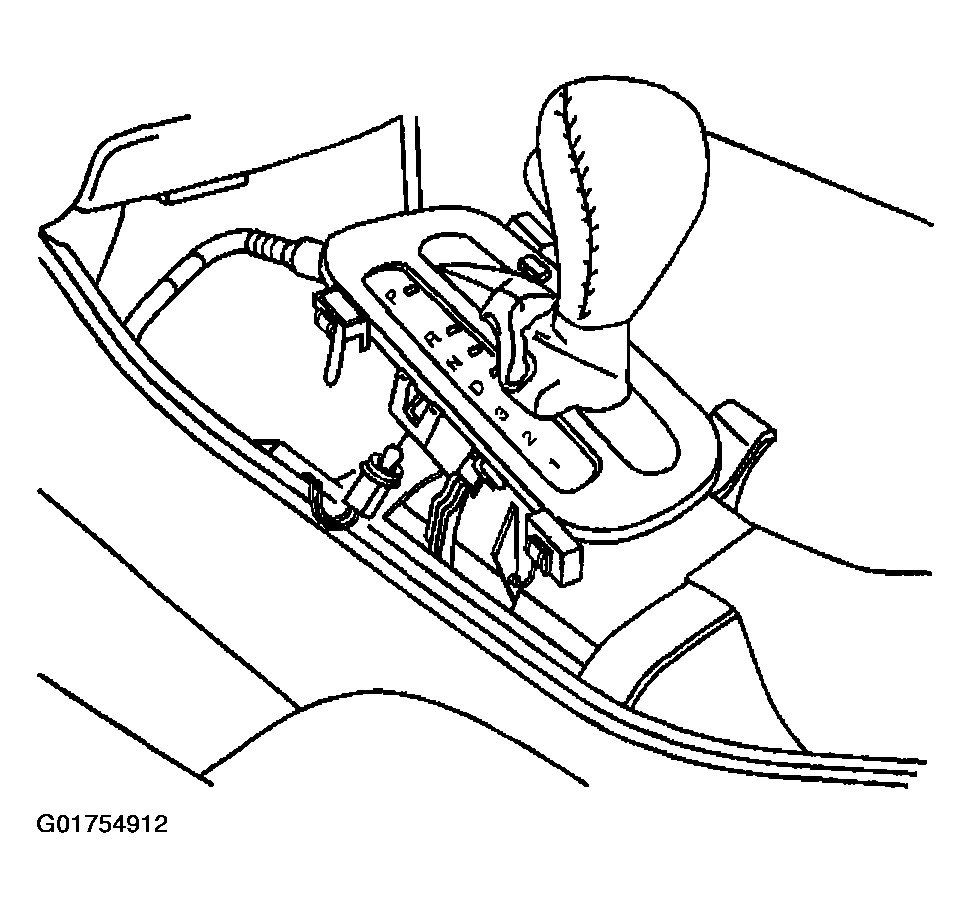

    4. Fig 1: Identifying Floor Shift Control Indicator Lamp Socket
    G01754912Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb from the socket.
